- Sealmaster? custom designed bearing for performance on paving equipment
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
PVR-2538

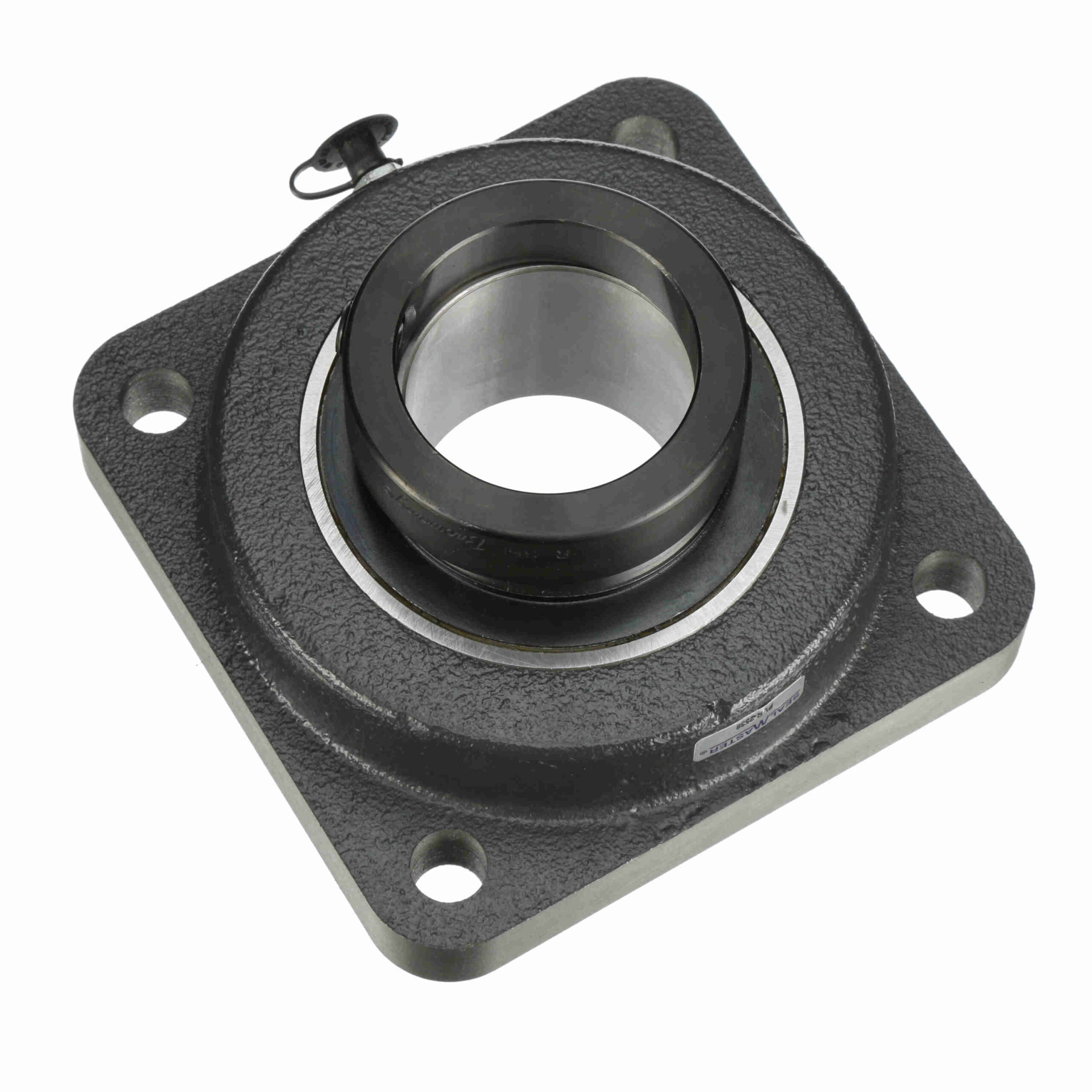

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Eccentric Lock – PVR-2538
$714.59
Out of stock
Out of stock
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Expansion: | No |
| Bore Shape: | Straight | Housing Type: | Flange; Four Bolt |
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
| Insert Material: | 52100 Bearing Steel | Housing Base: | Solid |
| Speed (Max): | 2500 | Measure Units: | Inch |
| Seal Type: | Single Lip Contact Seal with Flinger | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Misalignment: | ±3.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Duty Series: | Standard Duty |
| Locking Type: | Eccentric | Lubrication: | Lithium; EP; NLGI#2 |
| Insert No.: | VE-235 | Internal Clearance: | Standard |
| Misalignment Type: | Static Only | Platform: | Paver Bearing |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | No | UPC: | 662461311264 |
| Weight: | 9.05 LB | Packaged Length: | 6.75 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 3.06 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
