- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VF4E-231

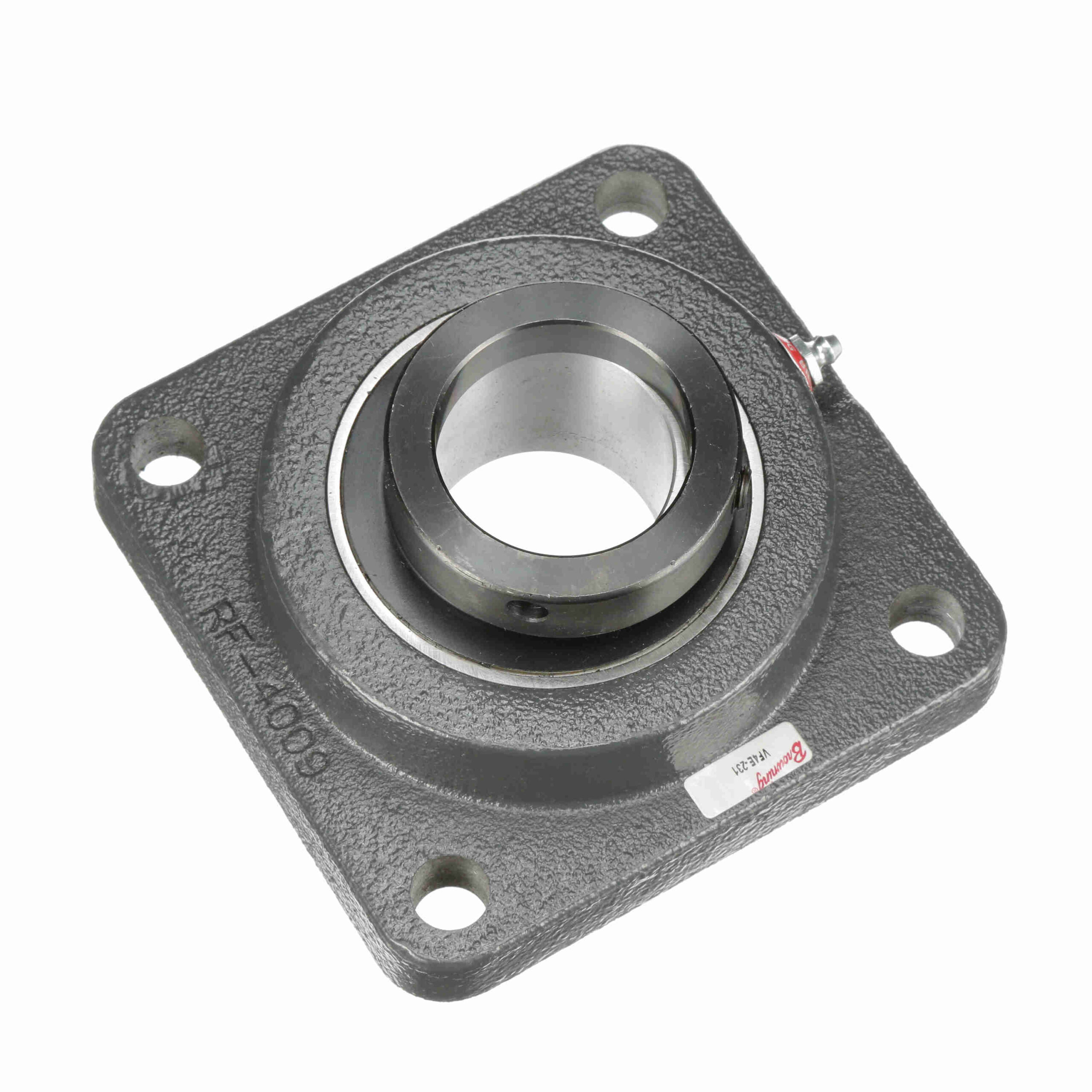

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VF4E-231
$145.77
Availability: 4 in stock
Availability: 4 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Housing Material: | Cast Iron |
|---|---|---|---|
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Expansion: | No | Bore Shape: | Straight |
| Maximum Operating Temperature: | 200 °F | Insert No.: | VE-231 |
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Base: | Semi-Solid |
| Housing Type: | Flange; Four Bolt | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Locking Type: | Eccentric | Internal Clearance: | Standard |
| Misalignment: | ±1.5° Misalignment - Static Only | Speed (Max): | 3000 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| End Cap: | No | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 216 | UPC: | 662289522132 |
| Weight: | 7.36 LB | Packaged Length: | 6.9 Inches |
| Packaged Width: | 7.8 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
