- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VF4S-319

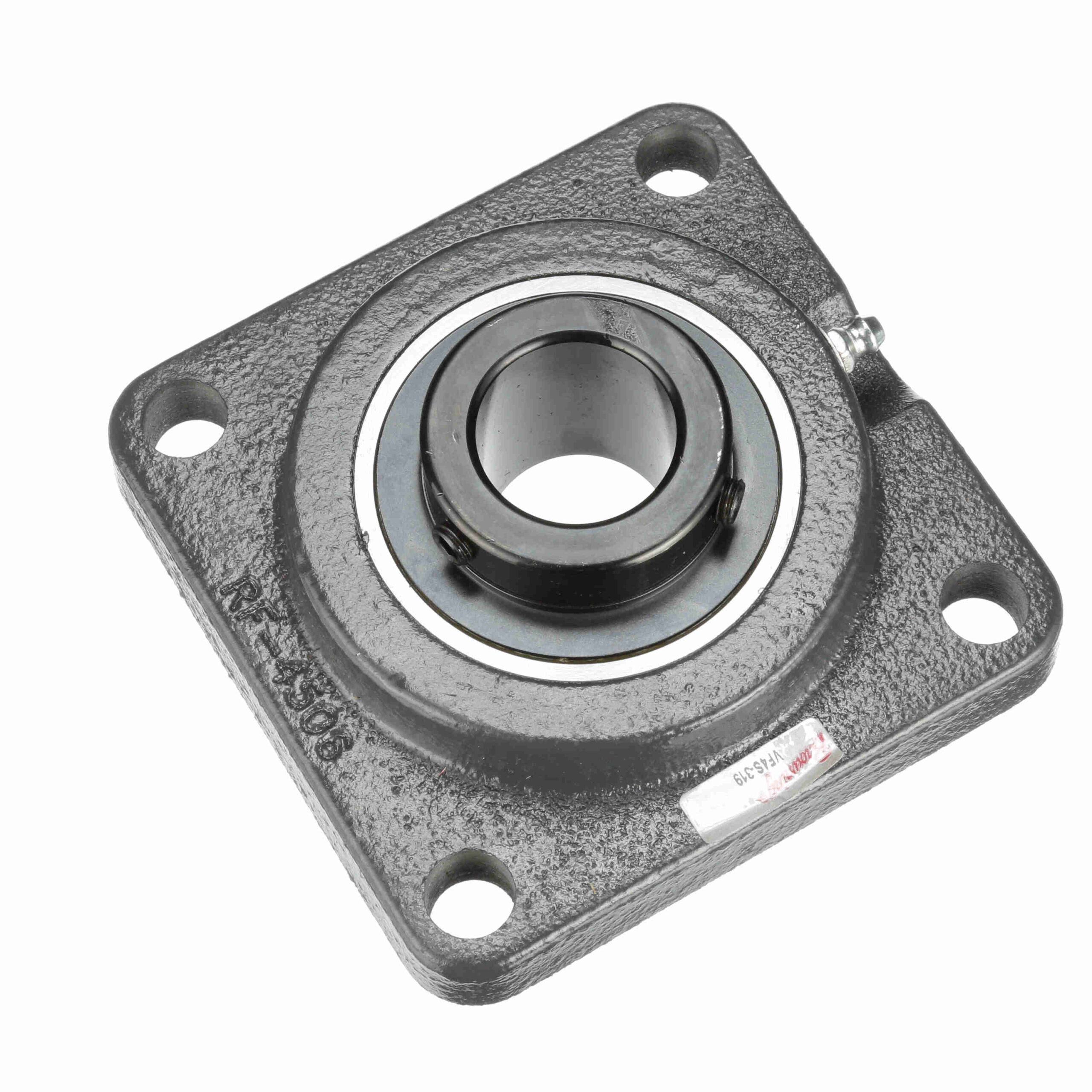

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VF4S-319
$123.31
Out of stock
Out of stock
| Retainer Type: | Ball Riding Retainer | Bore Shape: | Straight |
|---|---|---|---|
| Measure Units: | Inch | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Type: | Flange, Four Bolt |
| Maximum Operating Temperature: | 200 °F | Housing Material: | Cast Iron |
| Insert No.: | VS-319 | Expansion: | No |
| Duty Series: | Medium Duty | Housing Base: | Semi-Solid |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Internal Clearance: | Standard |
| Misalignment: | ±1.5° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Speed (Max): | 4000 |
| Locking Type: | Setscrew | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | End Cap: | No |
| T Core: | 0.6875 | Radial Static Load Capacity (lb): | 3, 493 |
| UPC: | 662289522927 | Weight: | 3.78 LB |
| Packaged Length: | 5.2 Inches | Packaged Width: | 5.1 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
