- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VF4S-328

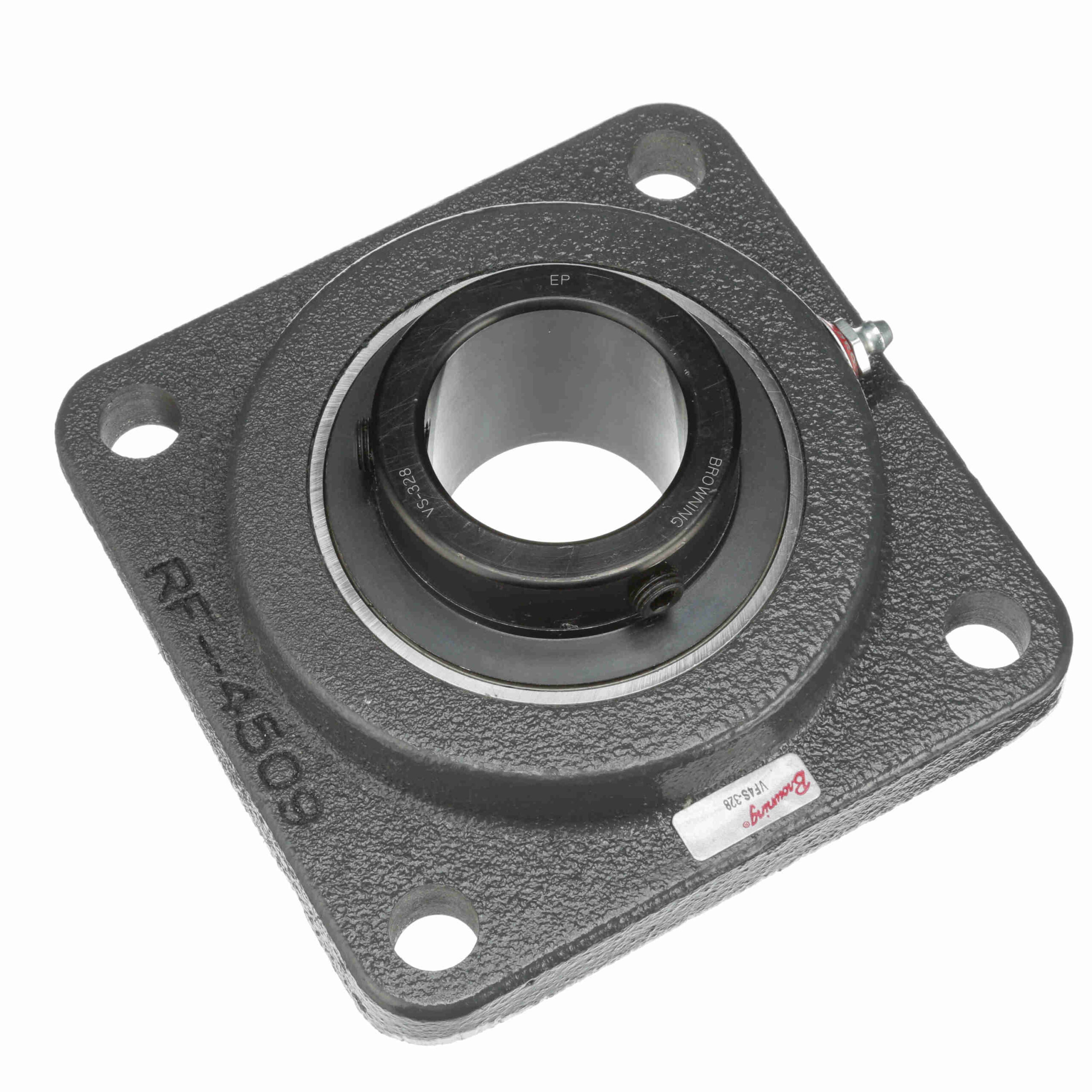

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VF4S-328
$185.44
Out of stock
Out of stock
| Bore Shape: | Straight | Housing Type: | Flange, Four Bolt |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Seal Type: | Single Lip Contact Seal with Flinger | Expansion: | No |
| Measure Units: | Inch | Duty Series: | Medium Duty |
| Maximum Operating Temperature: | 200 °F | Housing Base: | Semi-Solid |
| Insert No.: | VS-328 | Retainer Type: | Ball Riding Retainer |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Rolling Element: | Ball Bearing |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Internal Clearance: | Standard |
| Speed (Max): | 3000 | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Replaceable Insert: | Yes |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Outer Ring Land Profile: | Standard |
| T Core: | 0.75 | Radial Static Load Capacity (lb): | 5, 216 |
| UPC: | 662289522965 | Weight: | 6.49 LB |
| Packaged Length: | 6.9 Inches | Packaged Width: | 7.8 Inches |
| Packaged Height: | 2.4 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
