- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1622

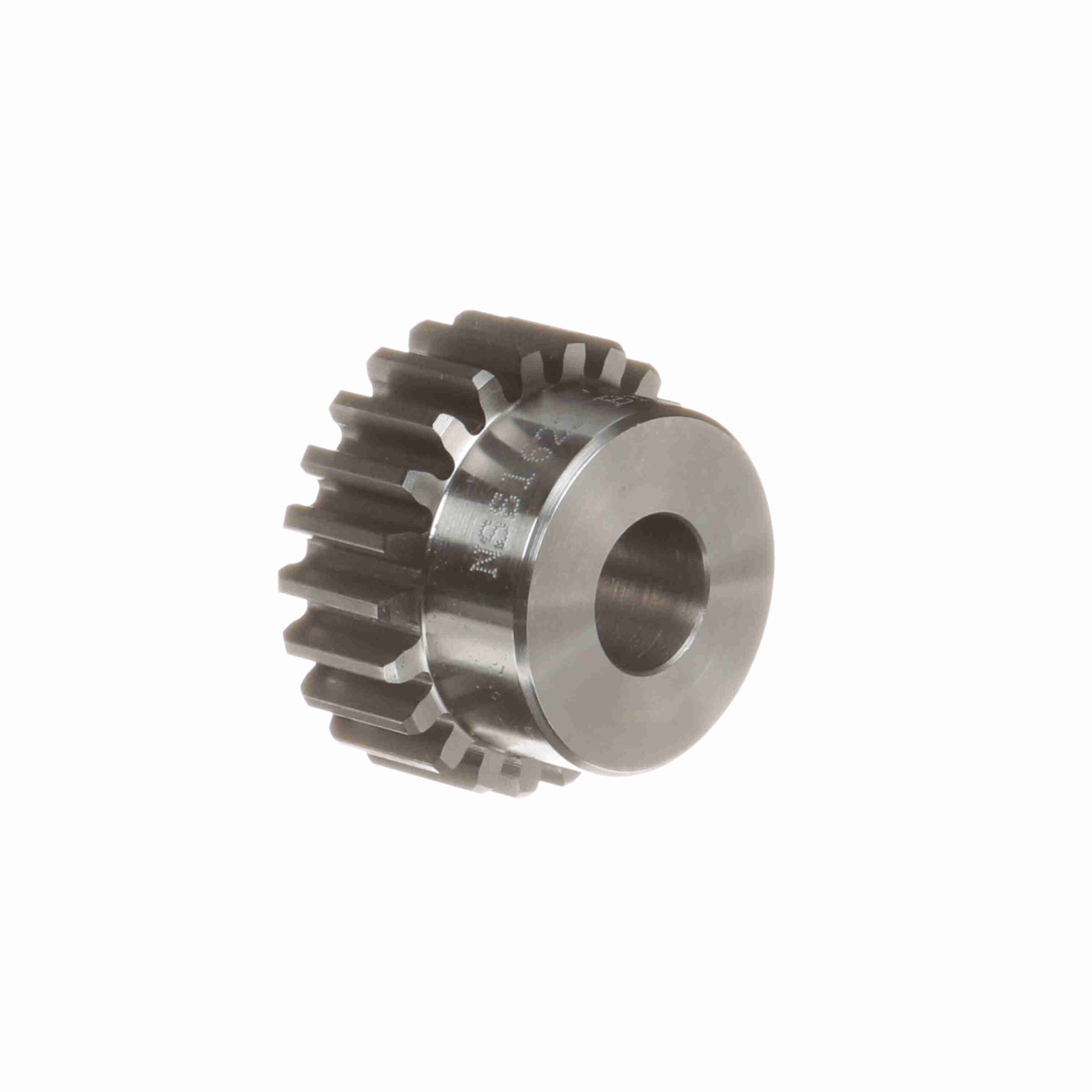

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NSS1622
$78.88
Out of stock
Out of stock
| Outside Diameter (in): | 1.5 in | Diametral Pitch: | 16 |
|---|---|---|---|
| Pitch Diameter (in): | 1.375 in | Material: | Steel |
| Number of Teeth/Threads: | 22 | Hub Diameter (in): | 1.1875 in |
| Hub Projection (in): | 0.4375 in | Pressure Angle: | 14.5 |
| Face Width (in): | 0.5 in | Bore (Max) (in): | 0.625 in |
| Bore (Min) (in): | 0.5 in | Length Through Bore (in): | 0.9375 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | Type B |
| Overall Length (in): | 0.9375 in | Standard Met: | AGMA |
| UPC: | 662289142316 | Weight: | 0.74 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
