- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1015

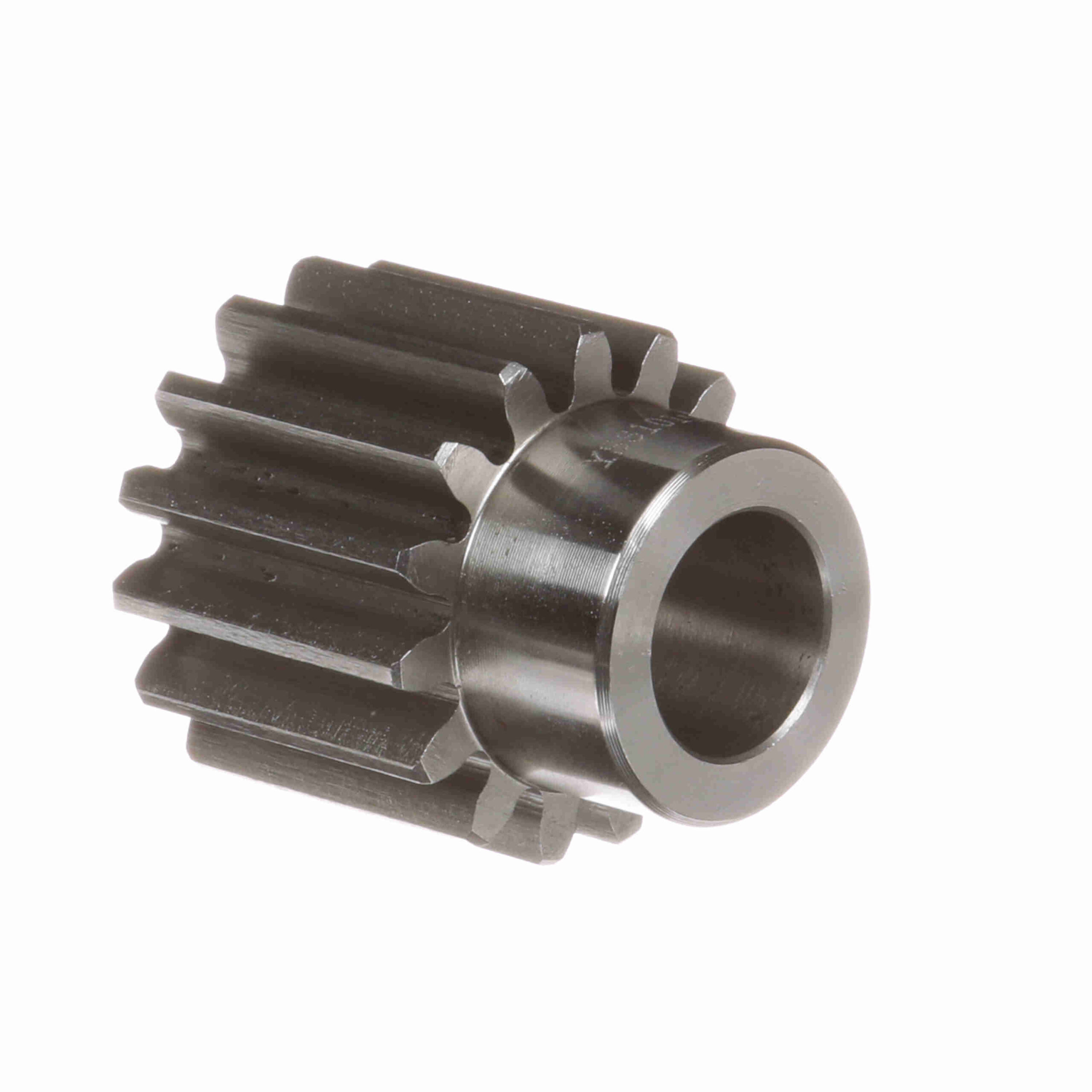

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 10 DP – YSS1015
Out of stock
| Hub Projection (in): | 0.625 in | Diametral Pitch: | 10 |
|---|---|---|---|
| Hub Diameter (in): | 1.2188 in | Face Width (in): | 1.25 in |
| Material: | Steel | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 15 | Pitch Diameter (in): | 1.5 in |
| Outside Diameter (in): | 1.7 in | Bore (Min) (in): | 0.75 in |
| Length Through Bore (in): | 1.875 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.875 in |
| UPC: | 662289306480 | Weight: | 0.60 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
