- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1626

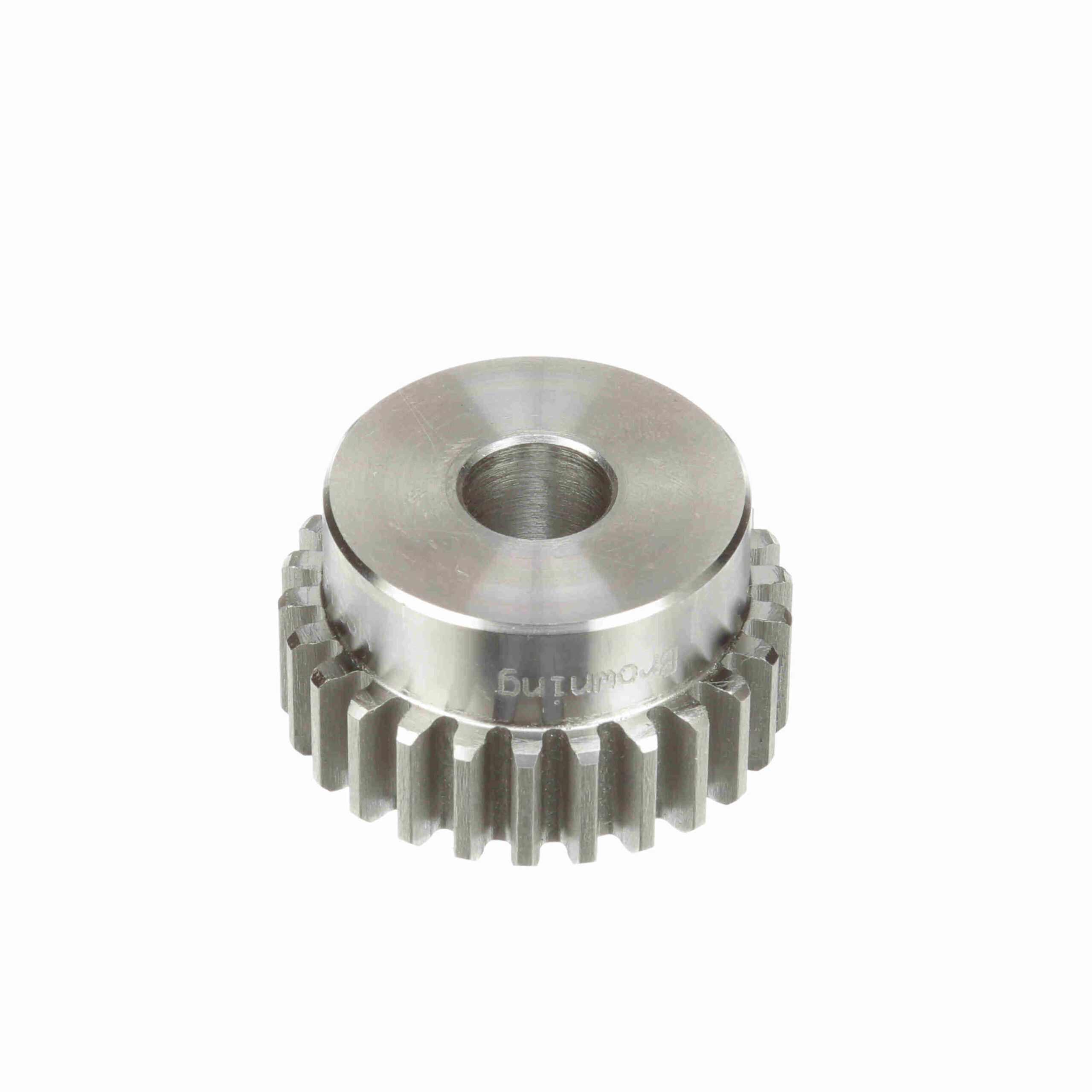

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NSS1626
$99.88
Out of stock
Out of stock
| Material: | Steel | Number of Teeth/Threads: | 26 |
|---|---|---|---|
| Pressure Angle: | 14.5 | Pitch Diameter (in): | 1.625 in |
| Diametral Pitch: | 16 | Hub Diameter (in): | 1.4375 in |
| Hub Projection (in): | 0.4375 in | Outside Diameter (in): | 1.75 in |
| Face Width (in): | 0.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.75 in | Bore (Min) (in): | 0.5 in |
| Length Through Bore (in): | 0.9375 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 0.9375 in |
| UPC: | 662289222308 | Weight: | 0.45 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.38 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
