- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
- This one way sprag clutch has tapped holes to mount accessories
MZEU25-CLUTCH

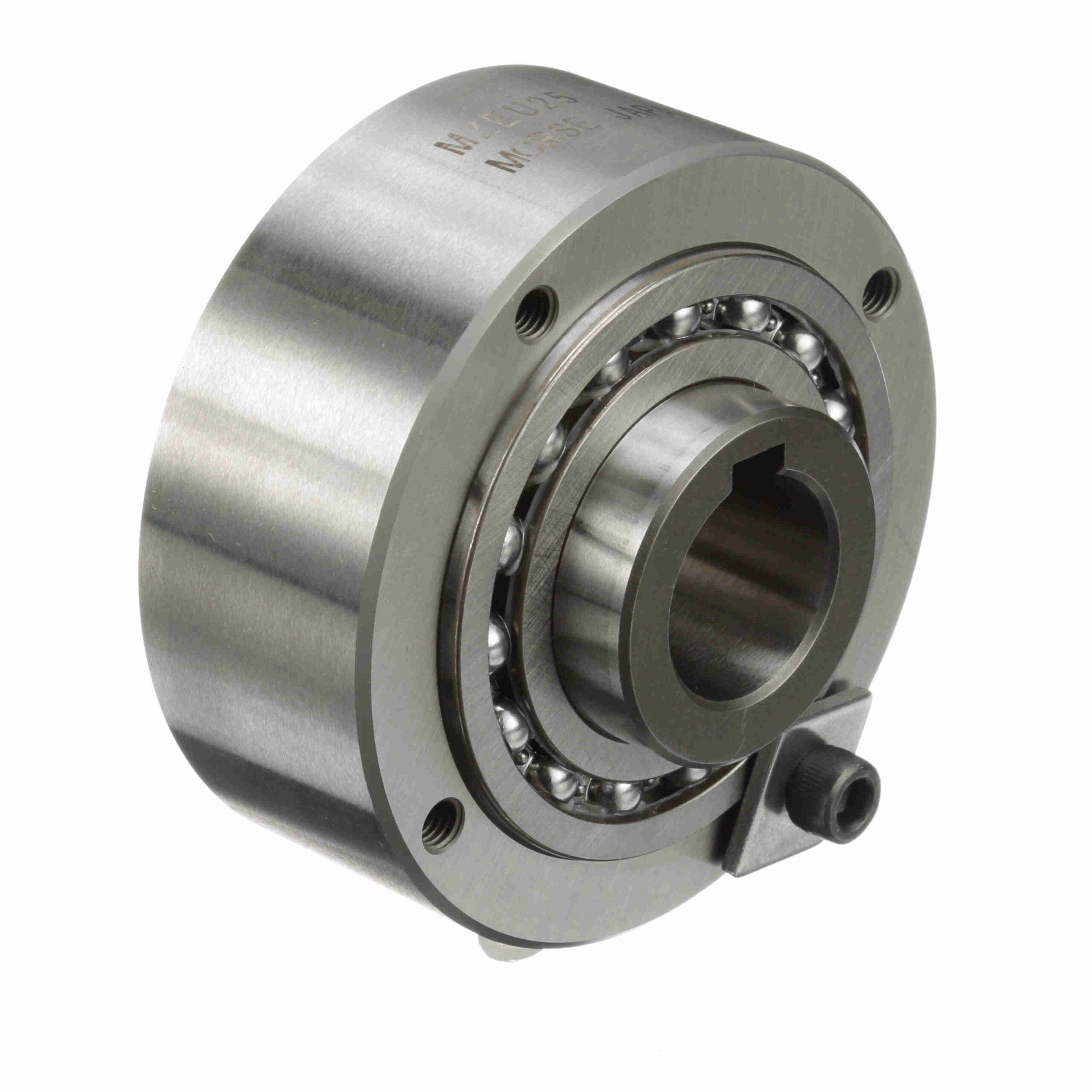

Morse MZEU Series CAM Clutch – MZEU25-CLUTCH
$3,397.34
Out of stock
Out of stock
| Rated Torque Capacity (ft.-lbs.): | 313.4634 | Rated Torque Capacity (N-m): | 425 |
|---|---|---|---|
| Bore Size Tolerances (in): | +0.0008/-0.0000 in | Type: | CAM Clutches |
| Bore Size Tolerances (mm): | +0.021/-0.000 mm | Drag Torque (N-m): | 0.33 |
| Keyway: | 8 X 3.3 | Drag Torque (lb-ft): | 0.243395 |
| Model: | MZEU 25 | Add'l Bearing Support Requirement: | No |
| Backstopping Clutch: | Yes | Product Type: | MZEU Series |
| Maximum Overrunning Speed - Inner Race (rpm): | 1, 600 | Indexing Clutch: | No |
| Bore Size (in): | 0.984249 in | Bore Size (mm): | 25 mm |
| Maximum Overrunning Speed - Outer Race (rpm): | 600 | Overrunning Clutch: | Yes |
| UPC: | 662288930099 | Weight: | 4.30 LB |
| Packaged Length: | 4.20 Inches | Packaged Width: | 4.20 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
