- Clutches Require Bearing support to assure concentricity between inner and outer races. Taper on this shaft should not exceed .0002 inches per inch.
B210A CL

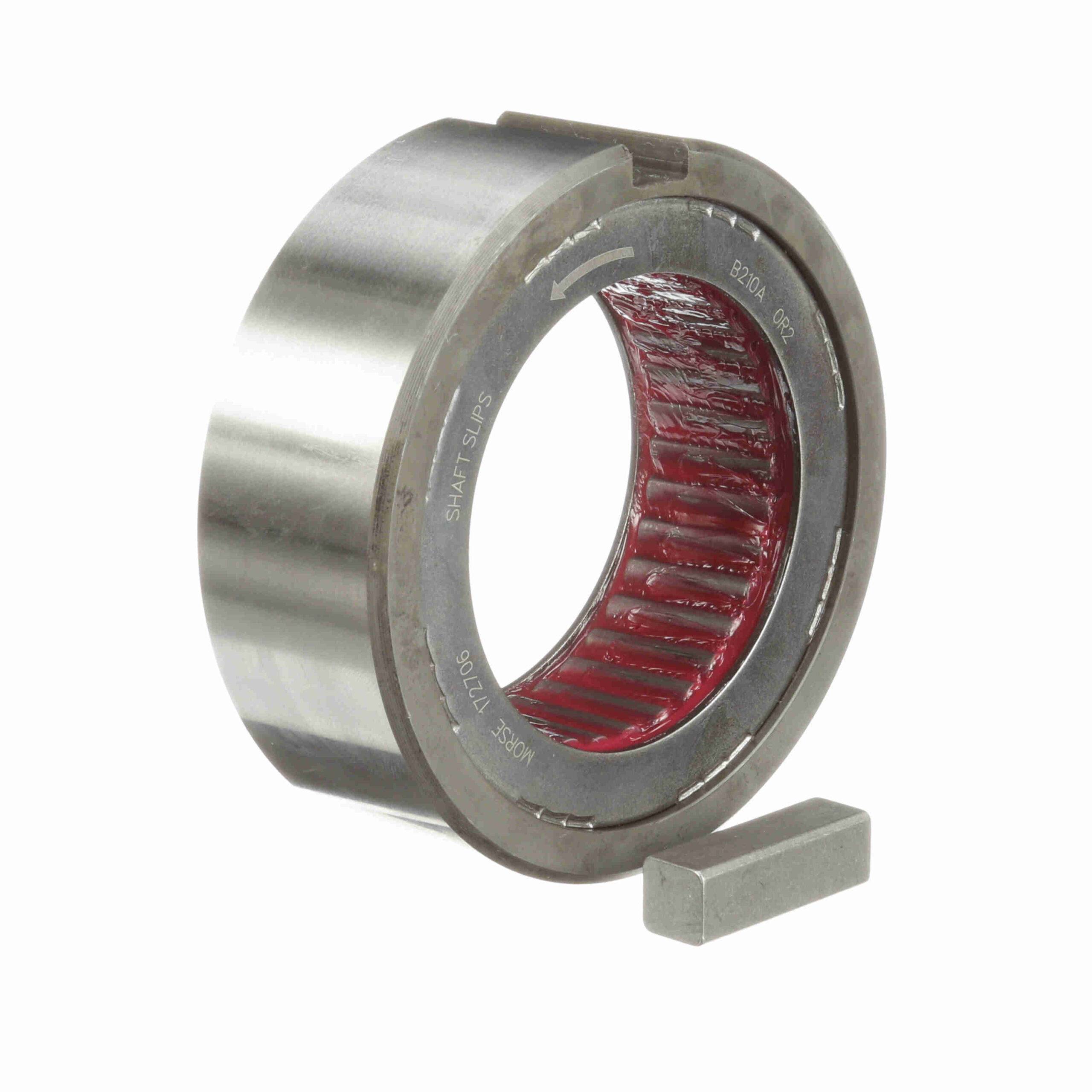

Morse B200 Series Mechanical Clutch – B210A CL
$588.99
Out of stock
Out of stock
| RPM Max. - Inner Race (shaft): | 1, 800 | Model: | B210A |
|---|---|---|---|
| Overall Diameter (in): | 3.5413 in | Std Package Quantity: | 1 |
| Type: | Mechanical Clutches | Overall Width (in): | 1.25 in |
| Bearing Size to Use with Clutch: | 210 | Key Size: | 3/8 x 3/16 in |
| Bore Type: | Shaft Mounted | Configuration: | LH Or RH Depending upon order |
| Add'l Bearing Support Requirement: | Yes | Backstopping Clutch: | Yes |
| Overrunning Clutch: | Yes | Indexing Clutch: | Yes |
| Bore Size (in): | 2.209 in | Rated Torque Capacity (ft.-lbs.): | 575 |
| Product Type: | B200 Series | UPC: | 662288407980 |
| Weight: | 2.00 LB | Packaged Length: | 4.80 Inches |
| Packaged Width: | 4.30 Inches | Packaged Height: | 2.30 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Mexico |
