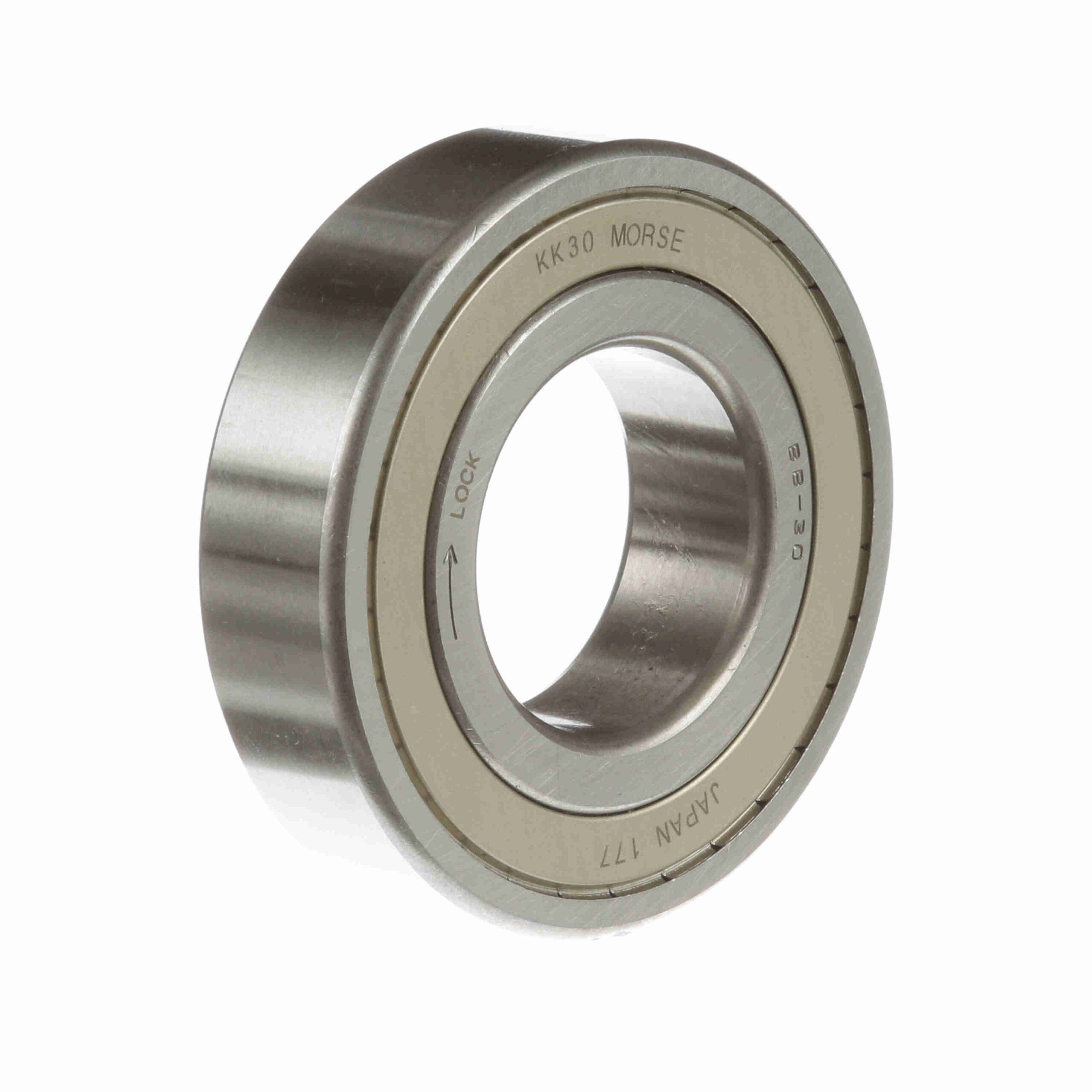

KK30

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.

RPM Max. -inner Race:	2, 000	Mounting Shaft Diameter:	1.1822/1.1817
Corner Radius:	1	Mounting Housing Diameter:	2.4403/2.4396
Overall Width (in):	0.63 in	Overall Diameter (in):	2.441 in
Dynamic Radial Load Rating (lb):	2675.2	Lubrication Type:	Grease
Type:	CAM Clutches	RPM Max. - Outer Race:	1100
Overall Diameter (mm):	62 mm	Static Radial Load Rating (lb):	1776
Add'l Bearing Support Requirement:	No	Backstopping Clutch:	Yes
Rated Torque Capacity (ft.-lbs.):	103.3	Indexing Clutch:	Yes
Product Type:	KK Series	Bore Size (mm):	30 mm
Overrunning Clutch:	Yes	Nominal Overrunning Drag (ft-lb):	0.0221
Inner Race Width (in):	0.63 in	Outer Width (in):	0.63 in
Bore Size (in):	1.181 in	UPC:	662288927495
Weight:	0.54 LB	Packaged Length:	3.20 Inches
Packaged Width:	3.20 Inches	Packaged Height:	1.00 Inches
HTC:	8483.60.4040	Country of Origin:	Japan
