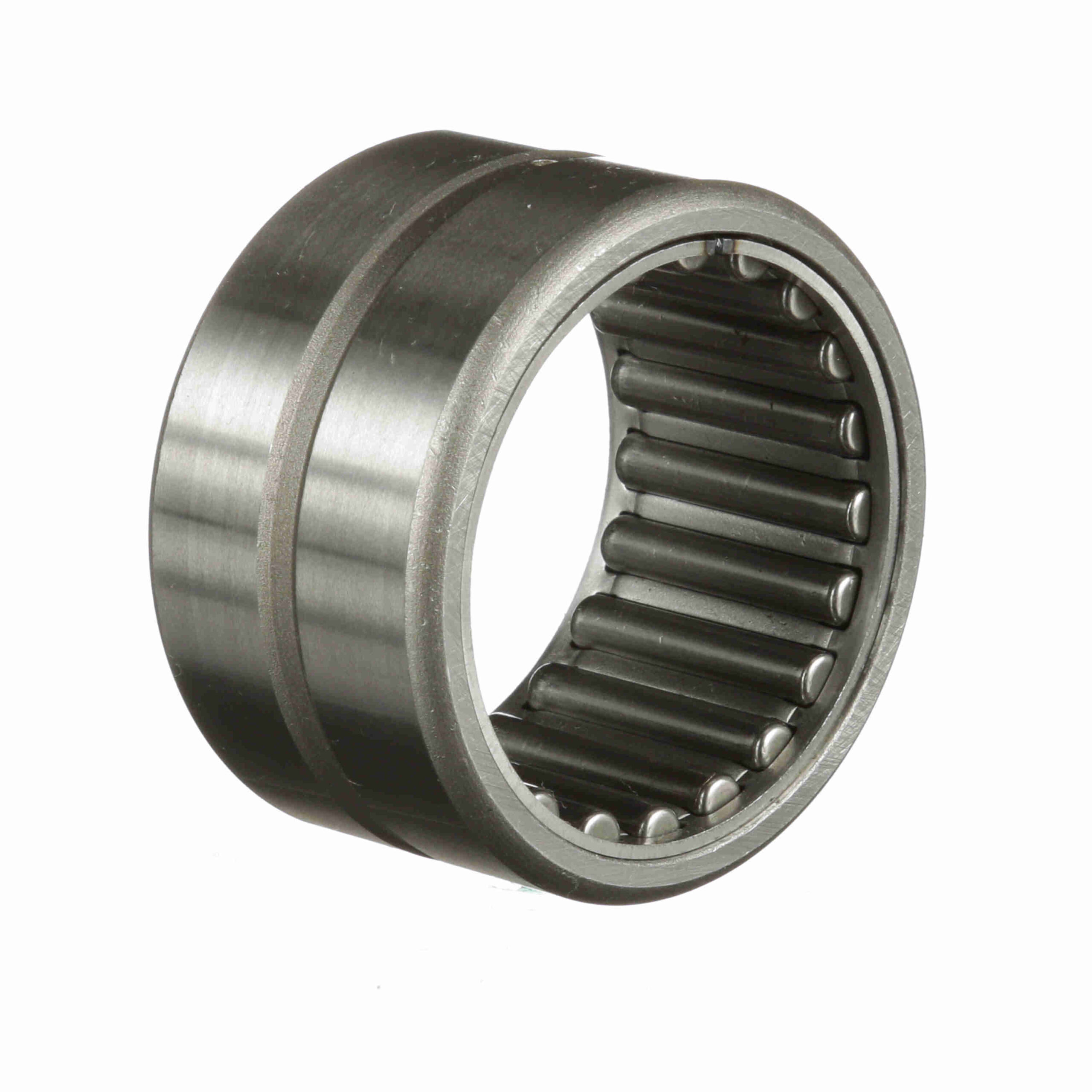

- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 26
McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 26
$31.96
Availability: 27 in stock
Availability: 27 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Dynamic Load Rating (lb): | 13, 300 lb |
| Speed [Max] Grease (RPM): | 3, 700 rpm | Static Load Rating (lb): | 22, 100 lb |
| Duplexing: | No | Sealed: | None |
| Speed [Max] Oil (RPM): | 7, 400 rpm | Platform: | Cagerol Bearing |
| Flanges: | No flange | Standard Met: | ABMA, ISO, MS 51961-25 |
| Related Inner Ring: | MI 22 4S | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Enclosure: | Open |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166066512 | Weight: | 0.42 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
