- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
MR 12 SS

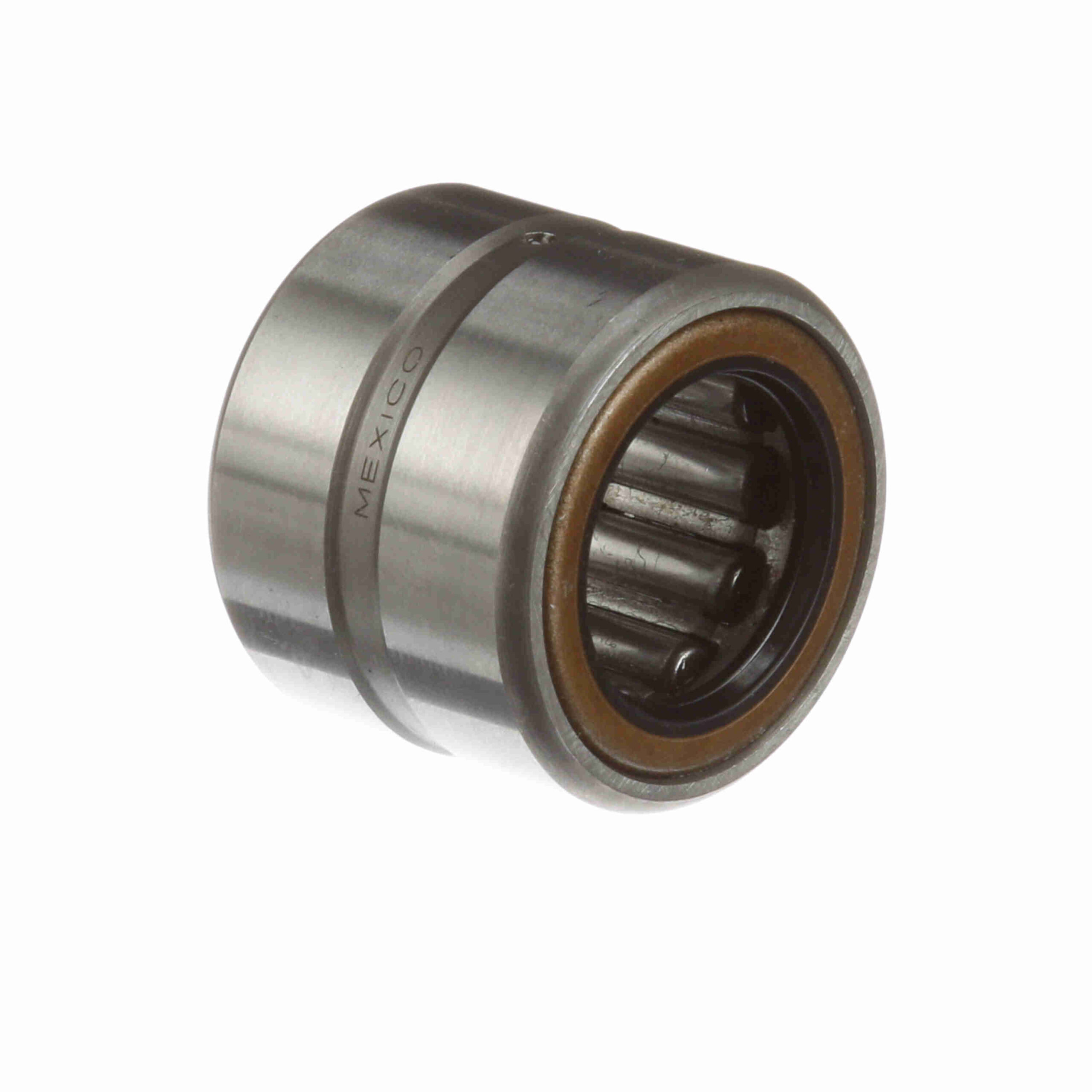

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 12 SS
$22.76
Availability: 216 in stock
Availability: 216 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Dynamic Load Rating (lb): | 4, 990 lb | Platform: | Cagerol Bearing |
| Full Complement/Caged: | Caged | Speed [Max] Grease (RPM): | 2, 550 rpm |
| Speed [Max] Oil (RPM): | 5, 100 rpm | Duplexing: | No |
| Sealed: | Sealed - Both Sides | Static Load Rating (lb): | 5, 400 lb |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication groove and hole |
| Related Inner Ring: | MI 8 | Flanges: | No flange |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166065010 |
| Weight: | 0.18 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
