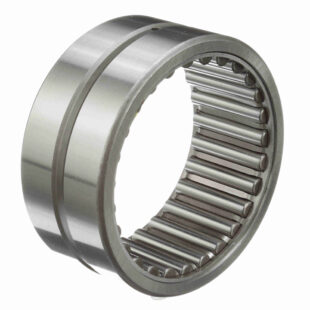

- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
MR 16 SS
McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 16 SS
$24.06
Availability: 131 in stock
Availability: 131 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Number of Rows: | 1 |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Static Load Rating (lb): | 7, 100 lb | Sealed: | Sealed - Both Sides |
| Dynamic Load Rating (lb): | 5, 840 lb | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 3, 800 rpm | Related Inner Ring: | MI 12 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166065416 |
| Weight: | 0.21 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
