- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 16

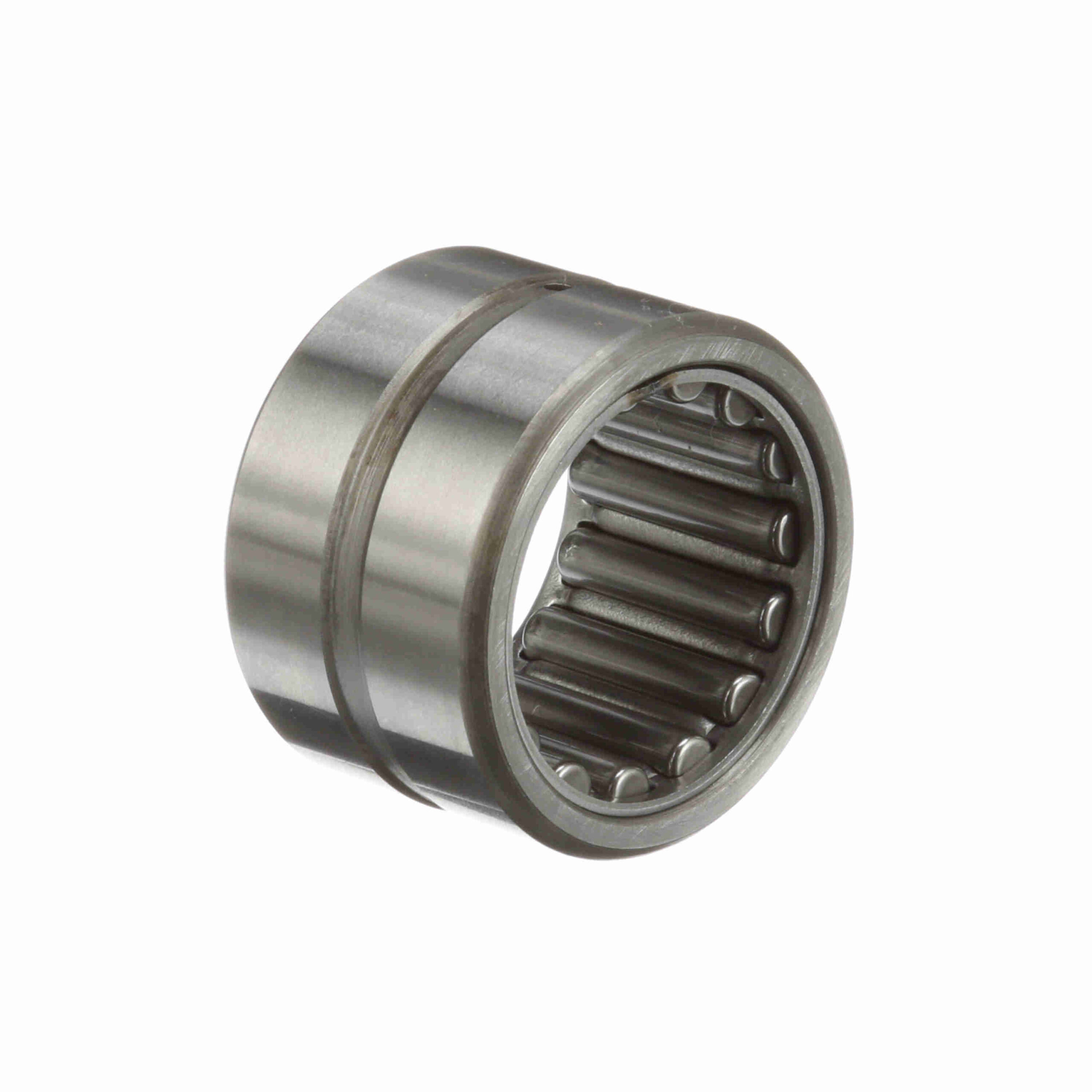

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 16
$17.21
Availability: 320 in stock
Availability: 320 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Platform: | Cagerol Bearing | Speed [Max] Oil (RPM): | 12, 000 rpm |
| Static Load Rating (lb): | 10, 600 lb | Dynamic Load Rating (lb): | 8, 000 lb |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Sealed: | None | Speed [Max] Grease (RPM): | 6, 000 rpm |
| Standard Met: | ABMA, ISO, MS 51961-9 | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 13 | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Enclosure: | Open |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166065324 | Weight: | 0.22 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
