- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
- MI is recommended for high performance indexing applications requiring high indexing accuracy. Incorporates and low inertia cage and heavy duty inergizing spring for quick cam reaction
MI500A 1 FB CL

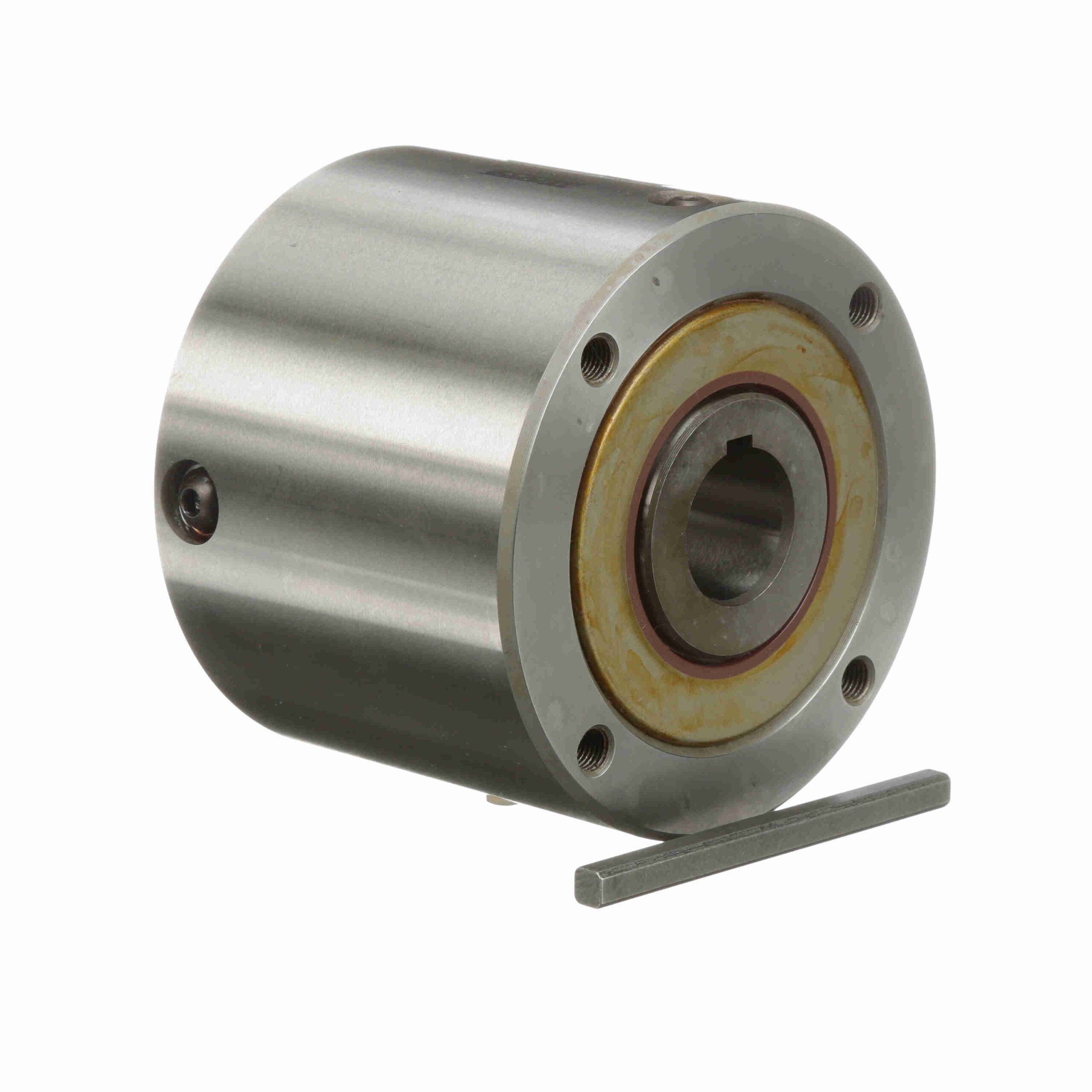

Morse M Series CAM Clutch – MI500A 1 FB CL
Out of stock
| Clutch size code: | 500 | Outer Width (in): | 3.375 in |
|---|---|---|---|
| Overall Diameter (in): | 4.25 in | Mode of Operation: | High Performance Indexing |
| Rated Torque Capacity (ft.-lbs.): | 1, 175 | Type: | CAM Clutches |
| Model: | MI | Product Type: | M Series |
| Inner Race Width (in): | 3.5 in | Add'l Bearing Support Requirement: | No |
| Backstopping Clutch: | Yes | Lubrication Type: | Oil |
| Bore Size (in): | 1 in | Overrunning Clutch: | Yes |
| Indexing Clutch: | Yes | Bore (Min) (in): | 0.875 in |
| Bore (Max) (in): | 1.25 in | Nominal Overrunning Drag (ft-lb): | 0.38 |
| UPC: | 662288501312 | Weight: | 11.00 LB |
| Packaged Length: | 4.25 Inches | Packaged Width: | 4.25 Inches |
| Packaged Height: | 3.63 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | United States of America |
