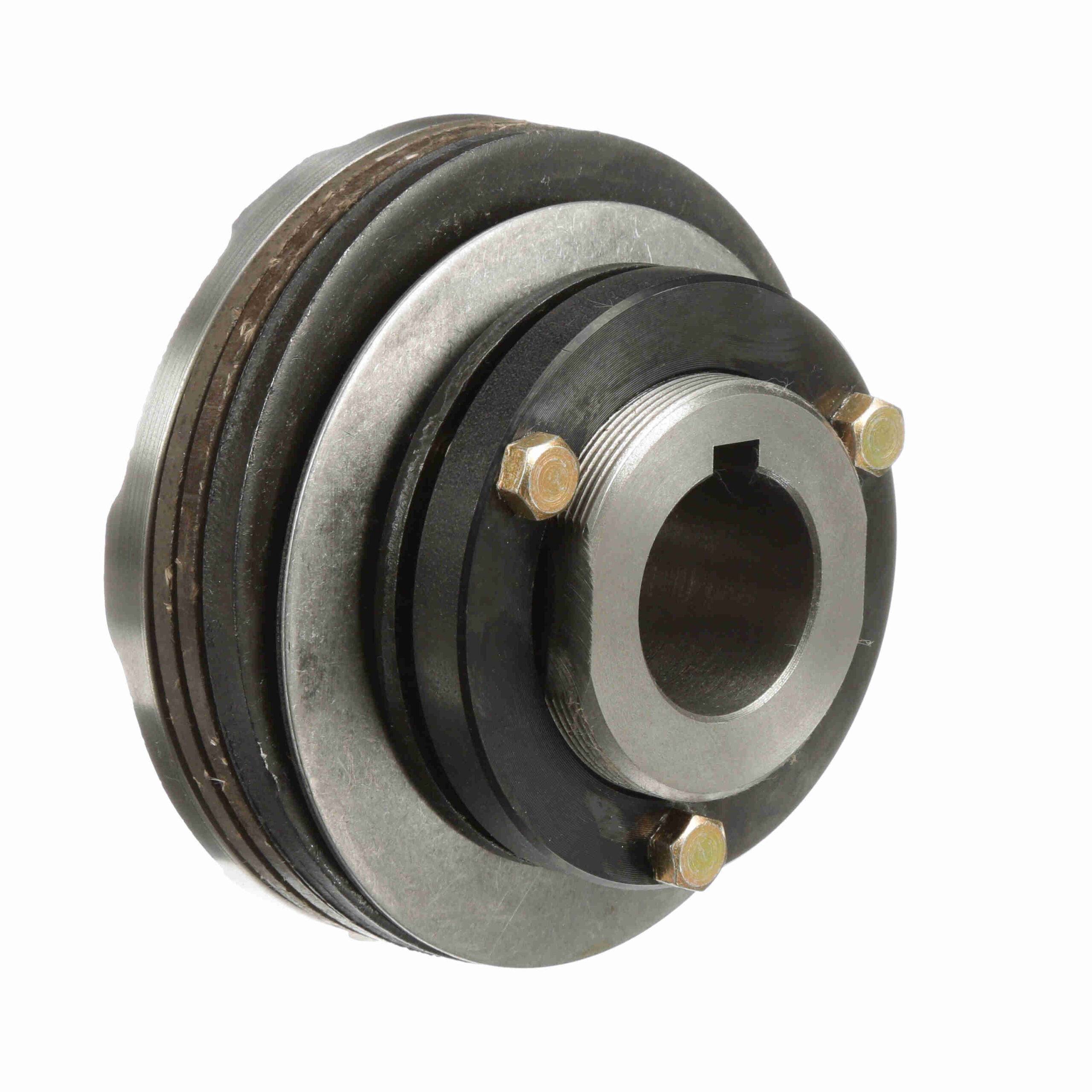

Morse Torque Limiter Model – 500A – 500A-1 TL 1-7/16 FB

SKU: 466106 Category: Mechanical Clutches

$417.13

Out of stock

Out of stock

Product Information
Specifications

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
Morse torque limiters are simple design, economical, easy adjustment, compact and dependable

Series / Model:	500A	Outside Diameter (in):	5 in
Type:	Torque Overload Devices	Recovery Style:	Automatic
Maximum Bore w/ Key, Setscrew:	1.75	Unit Accuracy:	0.25
Bore Shape:	Straight Bore	Trip Torque [Min]:	35
Reset Type:	Automatic	Backlash:	Zero
Bore Size (in):	1.4375 in	Disconnect Method:	Friction Pad
Torque [Min] (N-m):	47.6	Sensor Plate:	No
Total Length (mm):	76.2 mm	Total Length (in):	3 in
Sprocket Bore Diameter:	2.878/2.880	Outside Diameter (mm):	127 mm
Detection Method:	Friction Pad	Product Type:	Torque Limiter
Max RPM:	1, 000	Torque [Max] (N-m):	210.8
Torque Capacity [Max] (lb-ft):	155	Torque Capacity [Min] (lb-ft):	35
Bore (Min) (in):	1.4375 in	Bore (Max) (in):	1.4375 in
Minimum Sprocket Teeth:	#40 (35 Teeth)	#60 (25 Teeth)	#80 (19 Teeth)
Bore Type:	Finished w/ Keyway	UPC:	662288478997
Weight:	6.98 LB	Packaged Length:	6.50 Inches
Packaged Width:	6.30 Inches	Packaged Height:	3.70 Inches
HTC:	8483.60.8000	Country of Origin:	United States of America
