- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
M 5

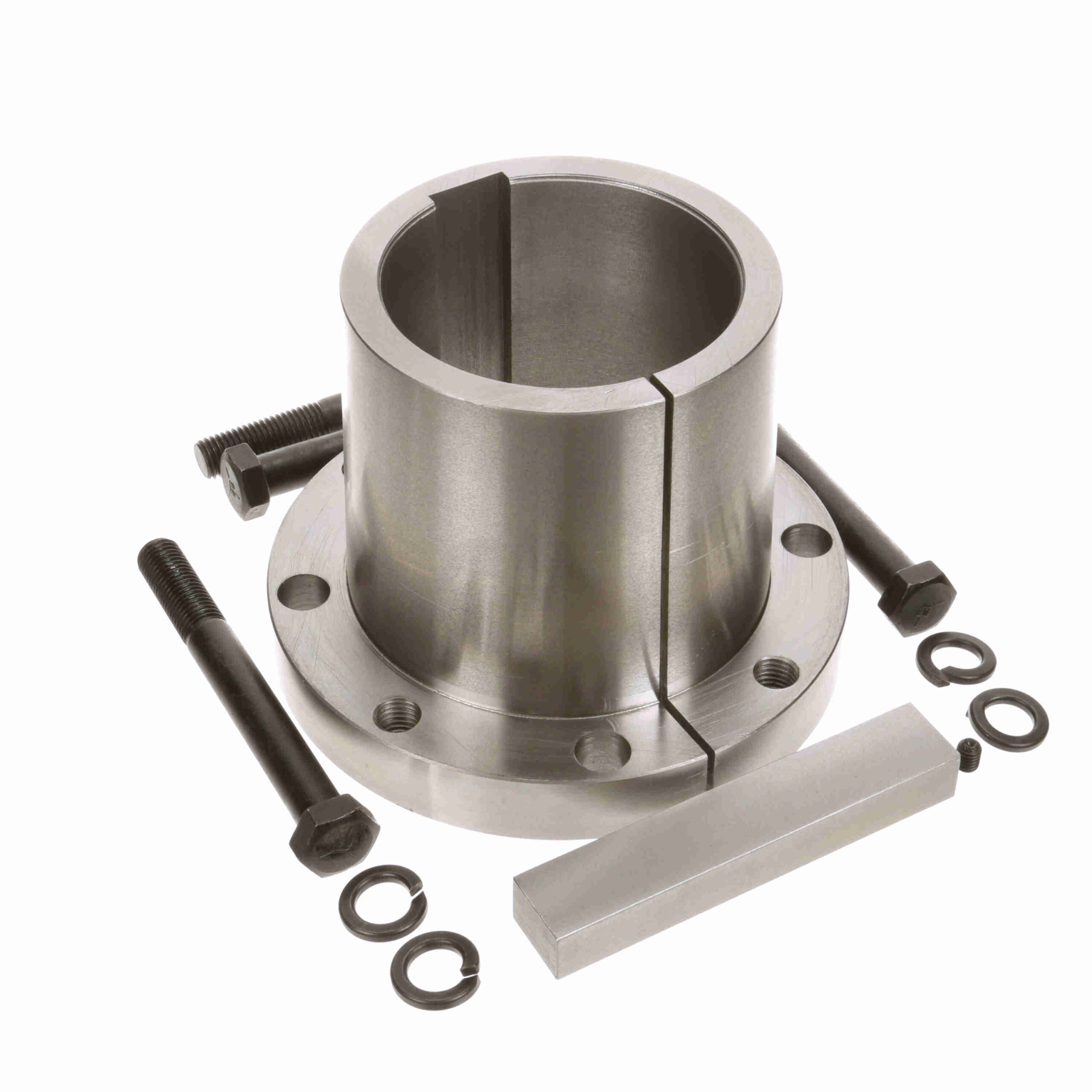

Browning Q-D Bushing – Inch Bore Type – M 5
$2,106.09
Out of stock
Out of stock
| Wrench Torque (ft.-lbs.): | 225 | Length Through Bore (in): | 6.76 in |
|---|---|---|---|
| Model Name: | QD-M_Bushing_Master | Cap Screws (No.): | 4 |
| Total Length (in): | 6.76 in | Outside Diameter (in): | 9 in |
| Mounting Type: | Conventional | Keyway: | 1 1/4 x 5/8 |
| Product Type: | Q-D Bushing | Torque Capacity (in-lb): | 85, 000 |
| Bore Type: | Inch | Cap Screws (Size): | 3/4-10 x 6 3/4 |
| Bushing Type: | M | Cap Screws (Bolt Circle): | 7.875 |
| Compatible Bore Size [Max] (in): | 5 in | Bore Size (in): | 5 in |
| Barrel Diameter: | 6.5 in | Flange Thickness: | 1.25 in |
| Material: | Gray Iron - G3046 | Barrel Length: | 5.51 in |
| UPC: | 662289391233 | Weight: | 31.40 LB |
| Packaged Length: | 10.13 Inches | Packaged Width: | 10.13 Inches |
| Packaged Height: | 5.13 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
