- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
M 5 3/16

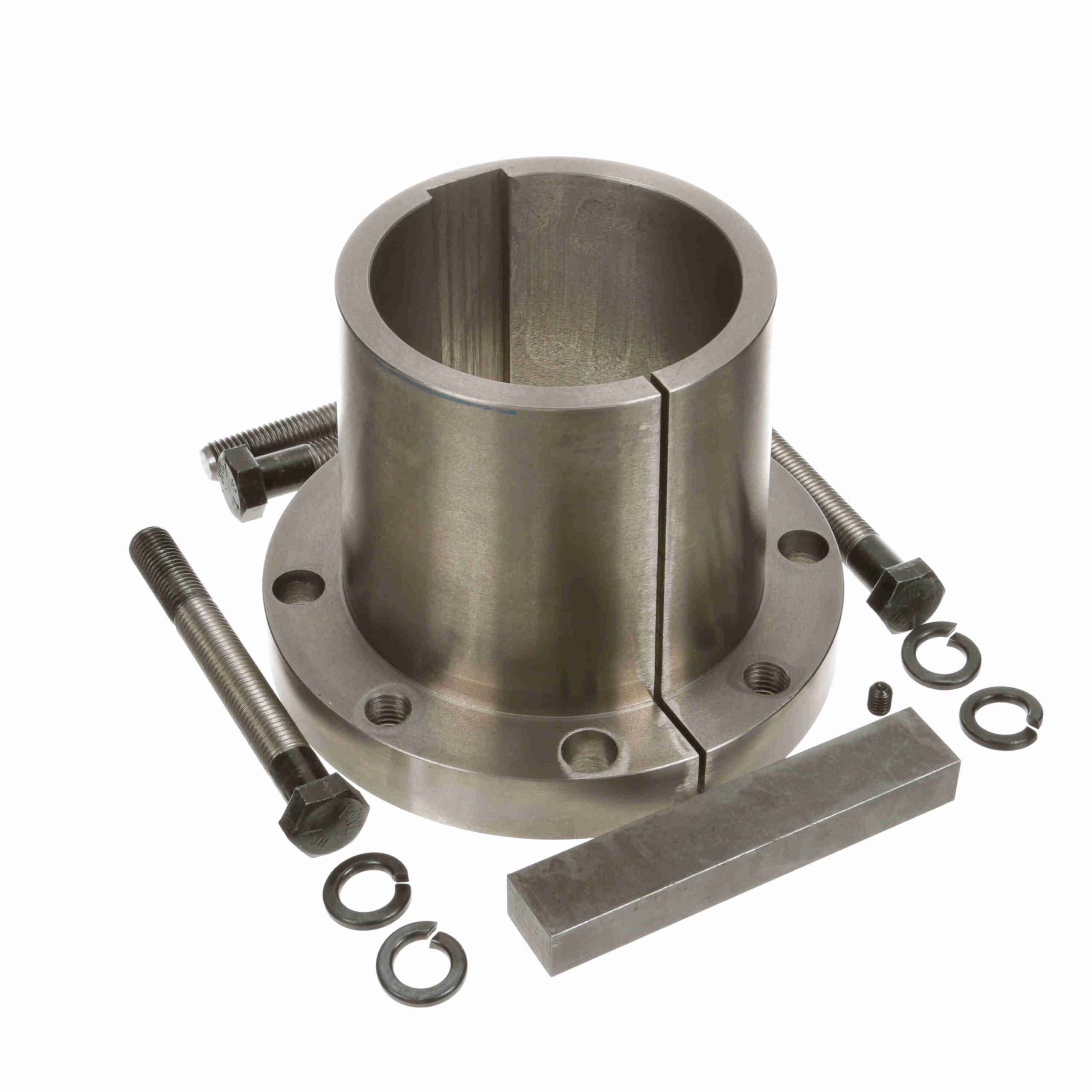

Browning Q-D Bushing – Inch Bore Type – M 5 3/16
Out of stock
| Bushing Type: | M | Model Name: | QD-M_Bushing_Master |
|---|---|---|---|
| Wrench Torque (ft.-lbs.): | 225 | Mounting Type: | Conventional |
| Compatible Bore Size [Max] (in): | 5.1875 in | Keyway: | 1 1/4 x 5/8 |
| Bore Type: | Inch | Product Type: | Q-D Bushing |
| Cap Screws (No.): | 4 | Cap Screws (Bolt Circle): | 7.875 |
| Length Through Bore (in): | 6.76 in | Outside Diameter (in): | 9 in |
| Cap Screws (Size): | 3/4-10 x 6 3/4 | Total Length (in): | 6.76 in |
| Torque Capacity (in-lb): | 85, 000 | Bore Size (in): | 5.1875 in |
| Flange Thickness: | 1.25 in | Barrel Length: | 5.51 in |
| Barrel Diameter: | 6.5 in | Material: | Gray Iron - G3050 |
| UPC: | 662289321957 | Weight: | 28.70 LB |
| Packaged Length: | 10.13 Inches | Packaged Width: | 10.13 Inches |
| Packaged Height: | 5.13 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
