- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J60-3 RIV 10 FT CH

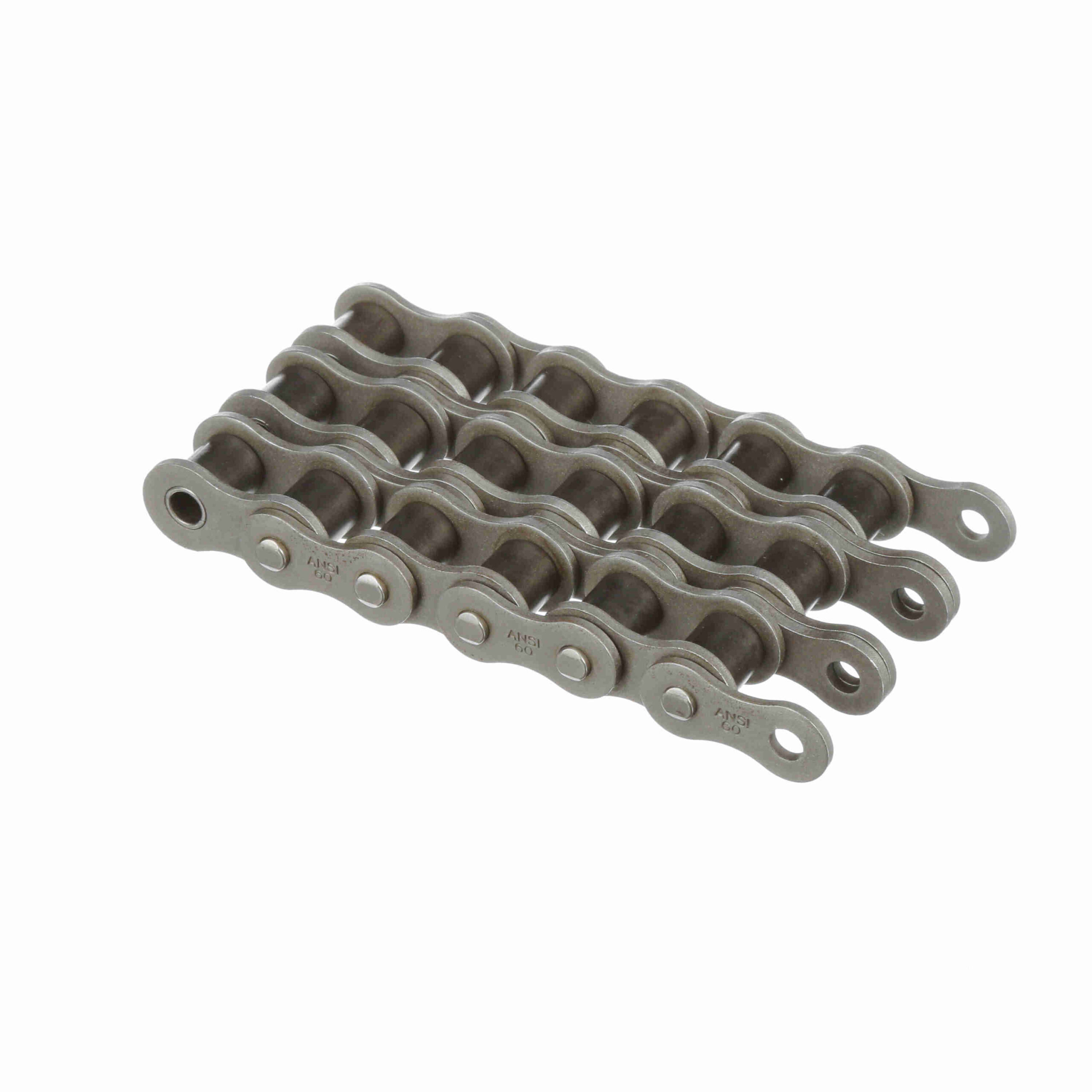

Browning Standard Riveted Roller Chain – J60-3 RIV 10 FT CH
$41.70
Out of stock
Out of stock
| Number of Strands/Width: | 3 | Roller Diameter (in): | 0.468 in |
|---|---|---|---|
| Roller Width (in): | 0.5 in | Chain Size: | 60 |
| Chain Construction: | Riveted | Average Ultimate Tensile Strength (psi): | 25, 500 |
| Material: | Steel | Inside Plate Height: | 0.7 |
| Centerline to Outside of cotter Pin: | 0.586 | Plate Thickness: | 0.094 |
| Pin Diameter (in): | 0.234 in | Centerline to Opposite cotter Pin Side: | 0.495 |
| Chain Pitch (in): | 0.75 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Total Length: | 10 ft |
| Coating: | Uncoated | Width Over Pins/Total Width: | 1.08 |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Transverse Pitch: | 0.897 | Pin Length - Riveted: | 2.799 |
| UPC: | 662289253951 | Weight: | 2.91 LB |
| Packaged Length: | 9.90 Inches | Packaged Width: | 9.70 Inches |
| Packaged Height: | 3.40 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | Thailand |
