- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J100 CP 10 FT CH

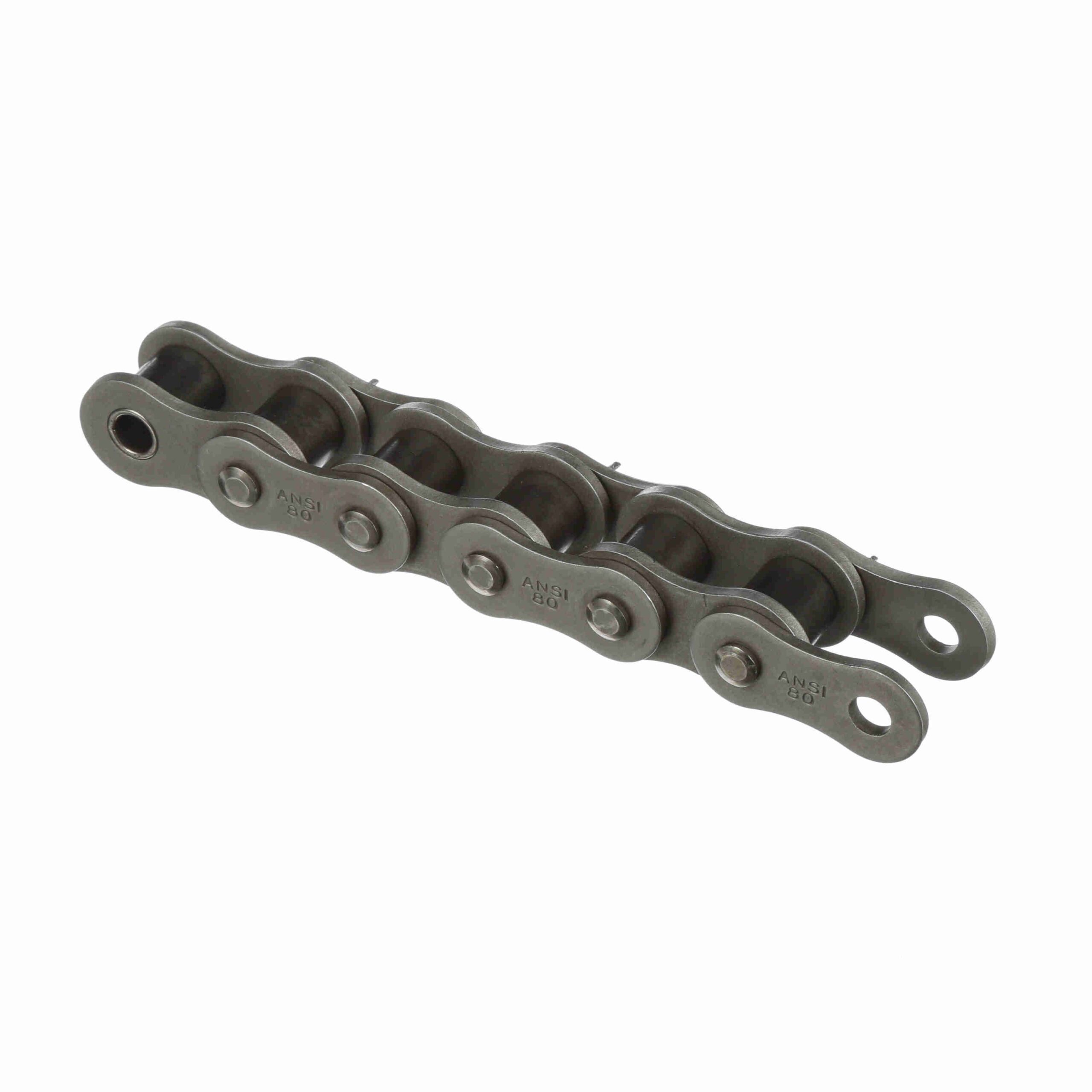

Browning Standard Cottered Roller Chain – J100 CP 10 FT CH
$35.84
Out of stock
Out of stock
| Chain Size: | 100 | Plate Thickness: | 0.156 |
|---|---|---|---|
| Material: | Steel | Centerline to Outside of cotter Pin: | 0.923 |
| Roller Width (in): | 0.75 in | Average Ultimate Tensile Strength (psi): | 24, 000 |
| Pin Diameter (in): | 0.375 in | Centerline to Opposite cotter Pin Side: | 0.778 |
| Inside Plate Height: | 1.166 | Number of Strands/Width: | 1 |
| Roller Diameter (in): | 0.75 in | Chain Construction: | Cottered |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.25 in | Coating: | Uncoated |
| Total Length: | 10 ft | Width Over Pins/Total Width: | 1.7 |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.731 | UPC: | 662289193684 |
| Weight: | 2.77 LB | Packaged Length: | 13.50 Inches |
| Packaged Width: | 13.10 Inches | Packaged Height: | 2.30 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
