- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50Q25

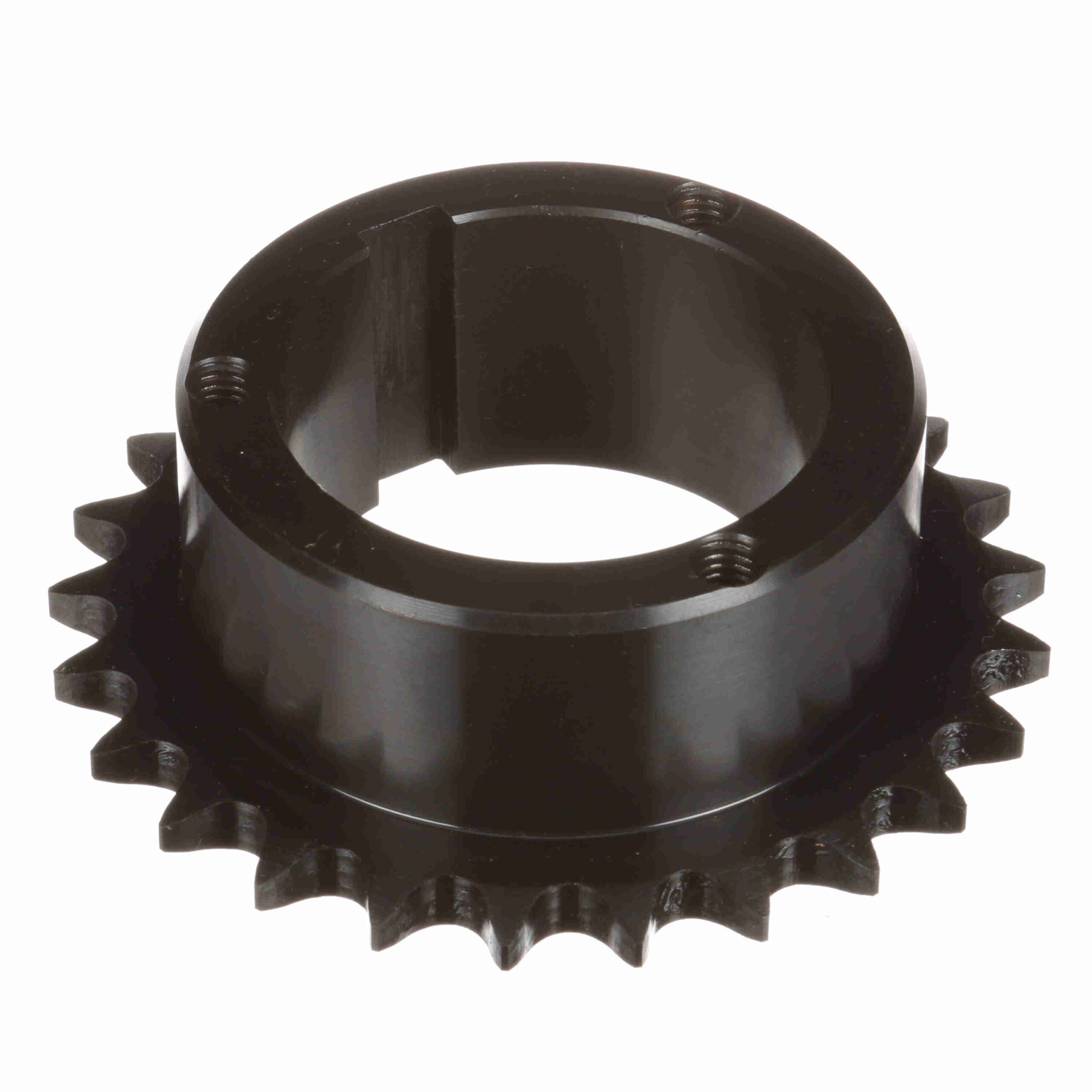

Browning Steel Bushed Bore Roller Chain Sprocket – H50Q25
$267.19
Out of stock
Out of stock
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Pitch Diameter (in): | 4.987 in |
|---|---|---|---|
| Bore (Max) (in): | 2.6875 in | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Number of teeth: | 25 |
| Chain Pitch (in): | 0.625 in | Bore (Min) (in): | 0.75 in |
| Material: | Steel, Hardened Teeth | Outside Diameter (in): | 5.322 in |
| Overall Length (in): | 2.828125 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.343 | UPC: | 662289245376 |
| Weight: | 3.38 LB | Packaged Length: | 6.20 Inches |
| Packaged Width: | 6.10 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
