- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
25B12

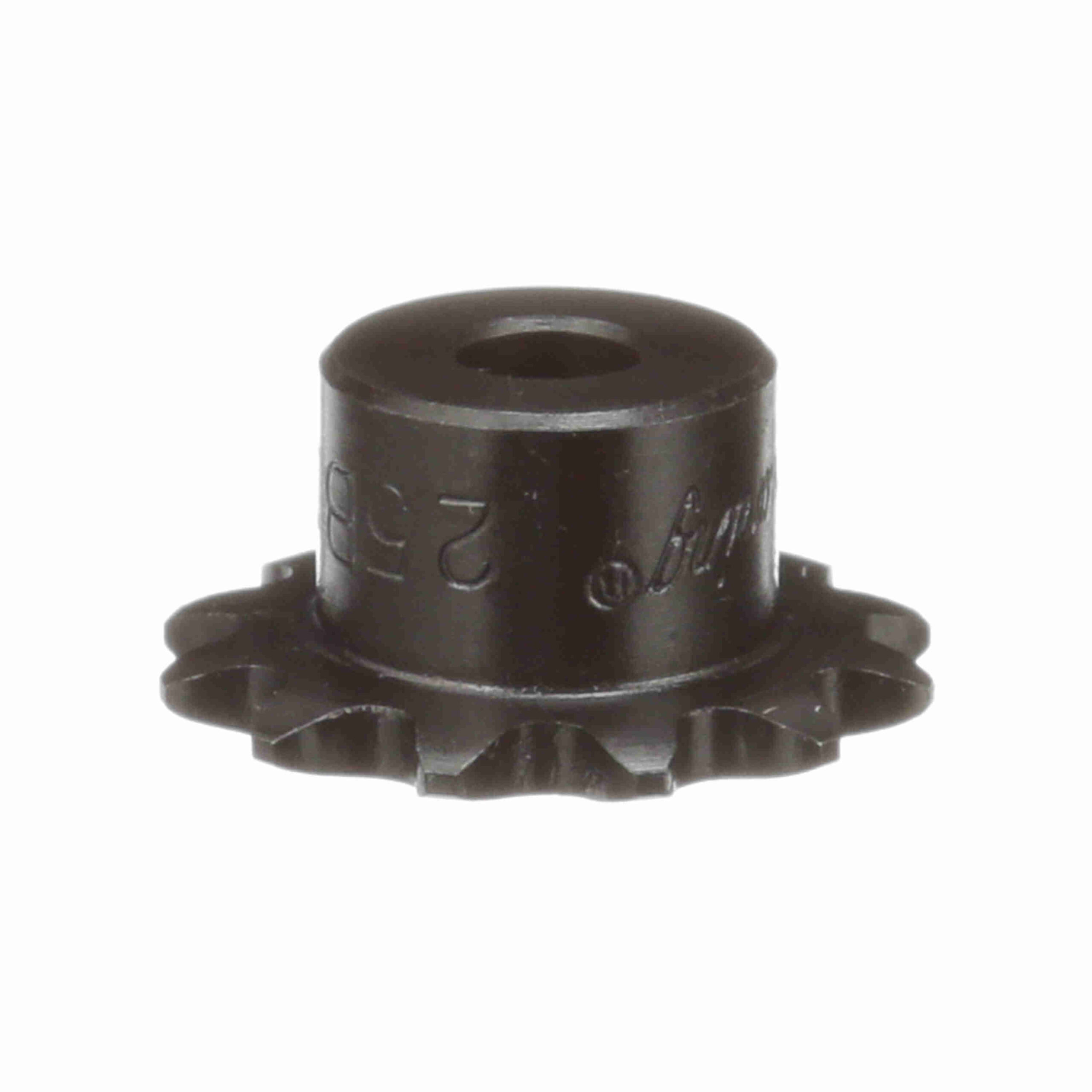

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 25B12
Out of stock
| Chain Pitch (in): | 0.25 in | Product Type: | Type "B" Minimum Bore Sprocket |
|---|---|---|---|
| Number of teeth: | 12 | Material: | Steel |
| Chain Used: | No. 25, 1/4 in. Pitch ANSI Chain | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.375 in | Outside Diameter (in): | 1.08 in |
| Pitch Diameter (in): | 0.966 in | Bore (in): | 0.25 in |
| Number of Strands/Width: | 1 | Length Through Bore (in): | 0.5 in |
| Hub Type: | Type B | Hub Diameter (in): | 0.625 in |
| Minimum Bore (in): | 0.25 | Hub Projection (in): | 0.390625 |
| Number of Hubs: | 1 | UPC: | 662289138258 |
| Weight: | 0.07 LB | Packaged Length: | 2.30 Inches |
| Packaged Width: | 2.20 Inches | Packaged Height: | 0.90 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
