- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS60P17

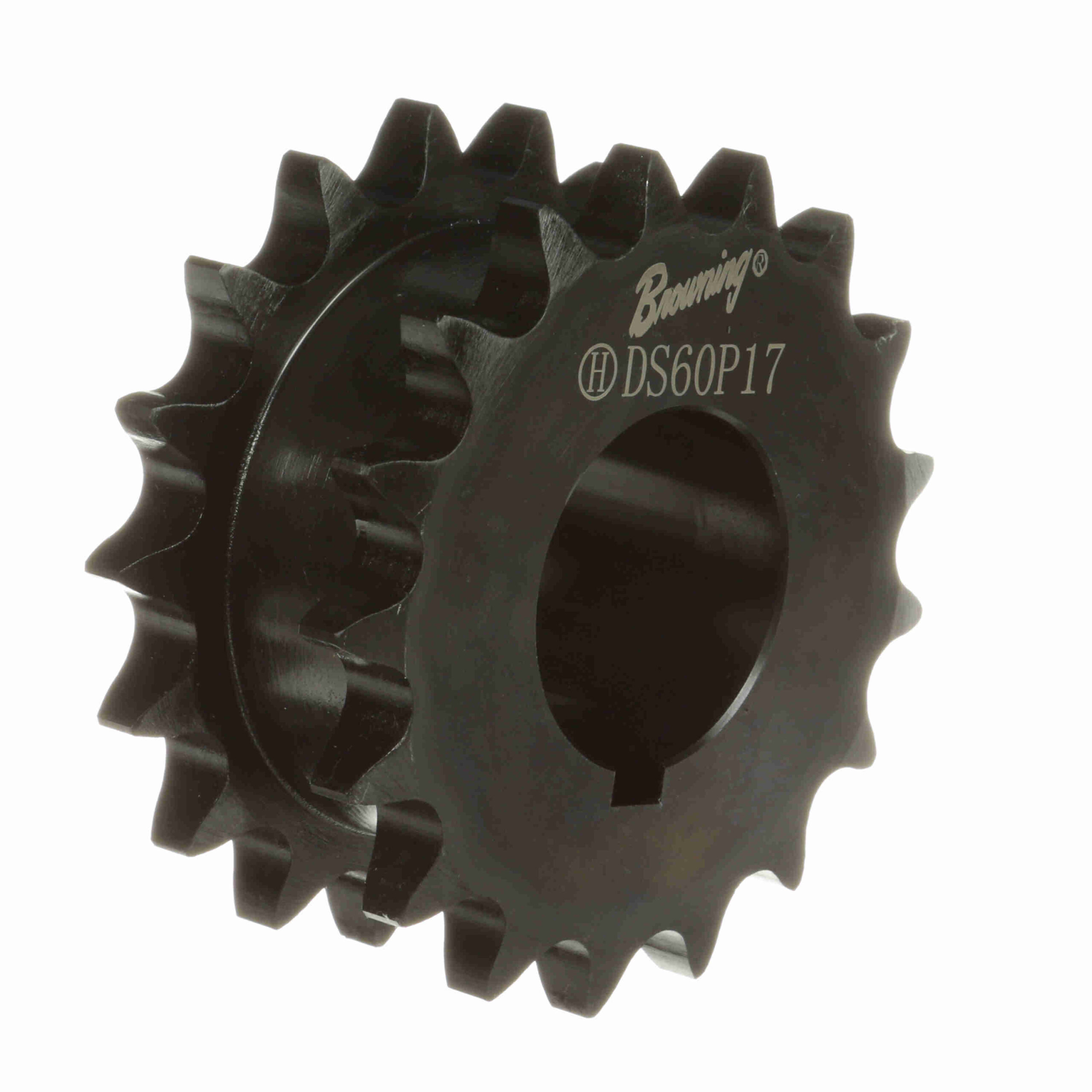

Browning Steel Bushed Bore Roller Chain Sprocket – DS60P17
$316.88
Availability: 1 in stock
Availability: 1 in stock
| Chain Pitch (in): | 0.75 in | Number of teeth: | 17 |
|---|---|---|---|
| Pitch Diameter (in): | 4.082 in | Bore (Max) (in): | 1.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.5 in | Bushing Used: | Split Taper |
| Material: | Steel | Overall Length (in): | 2.765625 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 4.462 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Pitch Type: | Single | Hardened Teeth: | Yes |
| UPC: | 662289188420 | Weight: | 3.96 LB |
| Packaged Length: | 6.20 Inches | Packaged Width: | 5.90 Inches |
| Packaged Height: | 2.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
