- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS80Q17

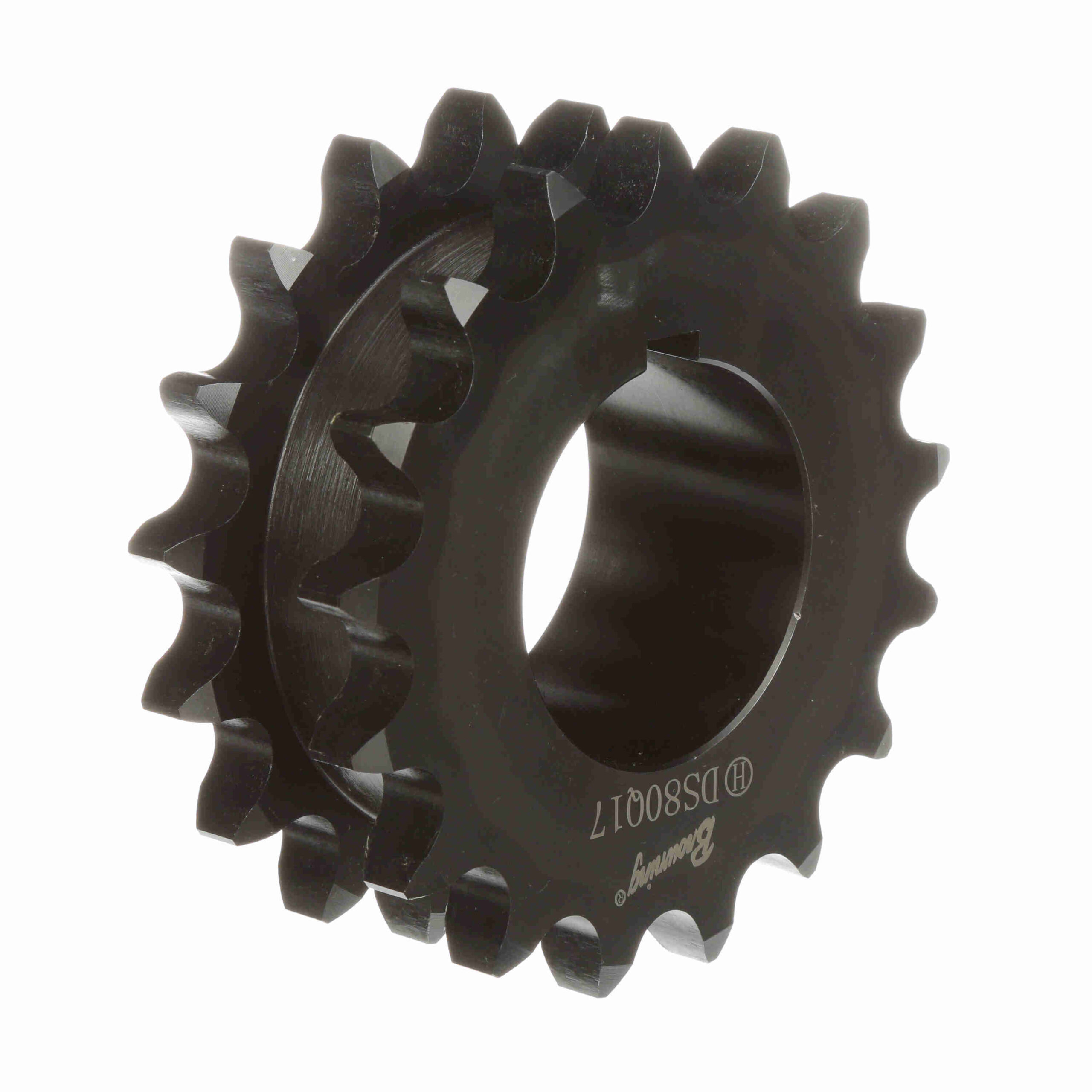

Browning Steel Bushed Bore Roller Chain Sprocket – DS80Q17
$457.90
Availability: 12 in stock
Availability: 12 in stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Chain Pitch (in): | 1 in |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Bushing Used: | Split Taper |
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel |
| Bore (Max) (in): | 2.6875 in | Number of teeth: | 17 |
| Pitch Diameter (in): | 5.442 in | Overall Length (in): | 3.28125 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 5.95 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Pitch Type: | Single | Hardened Teeth: | Yes |
| UPC: | 662289108510 | Weight: | 7.59 LB |
| Packaged Length: | 6.60 Inches | Packaged Width: | 6.10 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
