- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned out
GR 48 RS

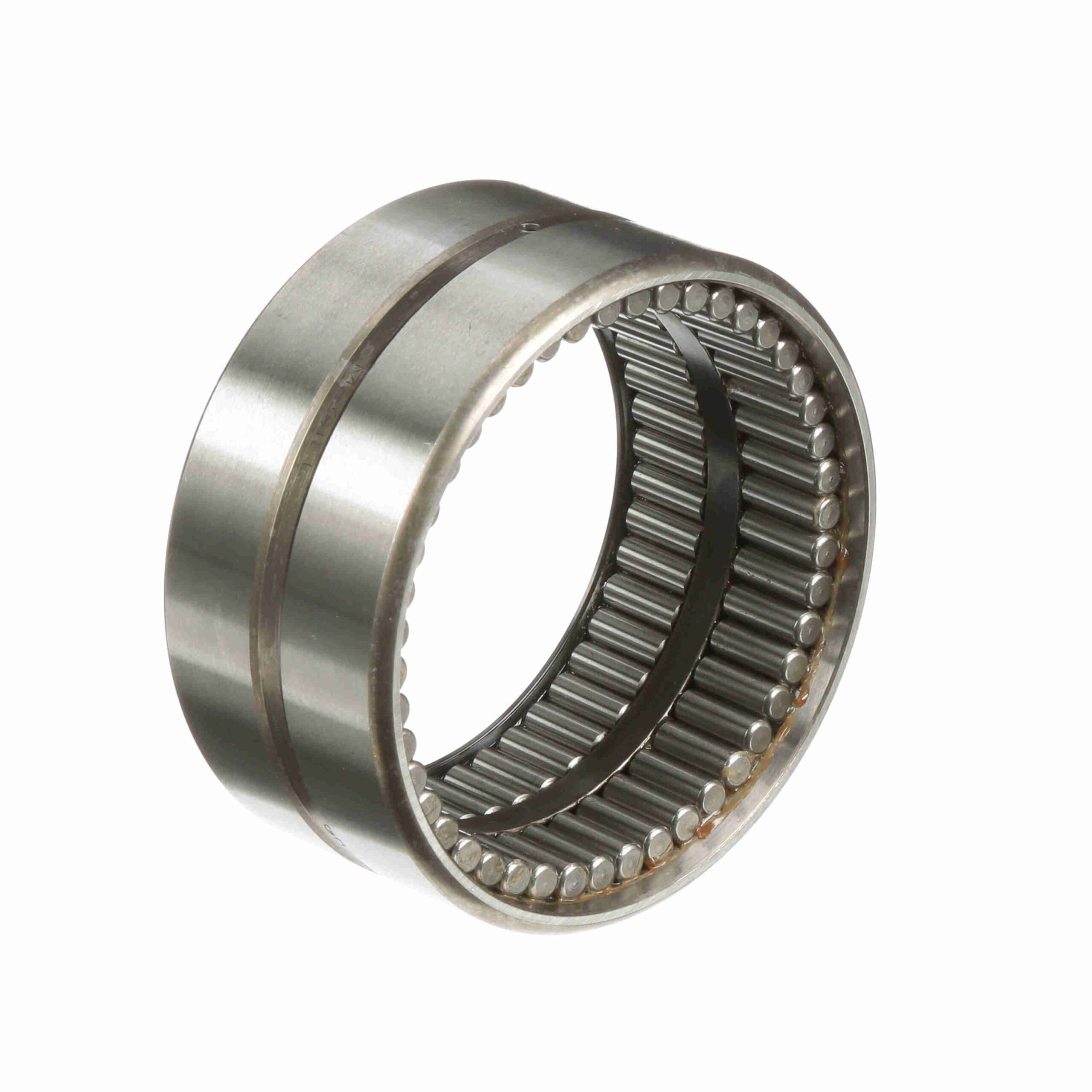

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 48 RS
$251.96
Out of stock
Out of stock
| Includes Inner Ring: | No | Series: | Standard |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Dynamic Load Rating (lb): | 17, 350 lb | Platform: | Guiderol Bearing |
| Static Load Rating (lb): | 65, 400 lb | Sealed: | Sealed - One Side |
| Speed [Max] Grease (RPM): | 1, 270 rpm | Full Complement/Caged: | Full Complement |
| Duplexing: | No | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Related Inner Ring: | MI 38 | Standard Met: | ABMA, ISO |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166062989 |
| Weight: | 2.01 LB | Packaged Length: | 4.1 Inches |
| Packaged Width: | 3.7 Inches | Packaged Height: | 2 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
