- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
MR 48

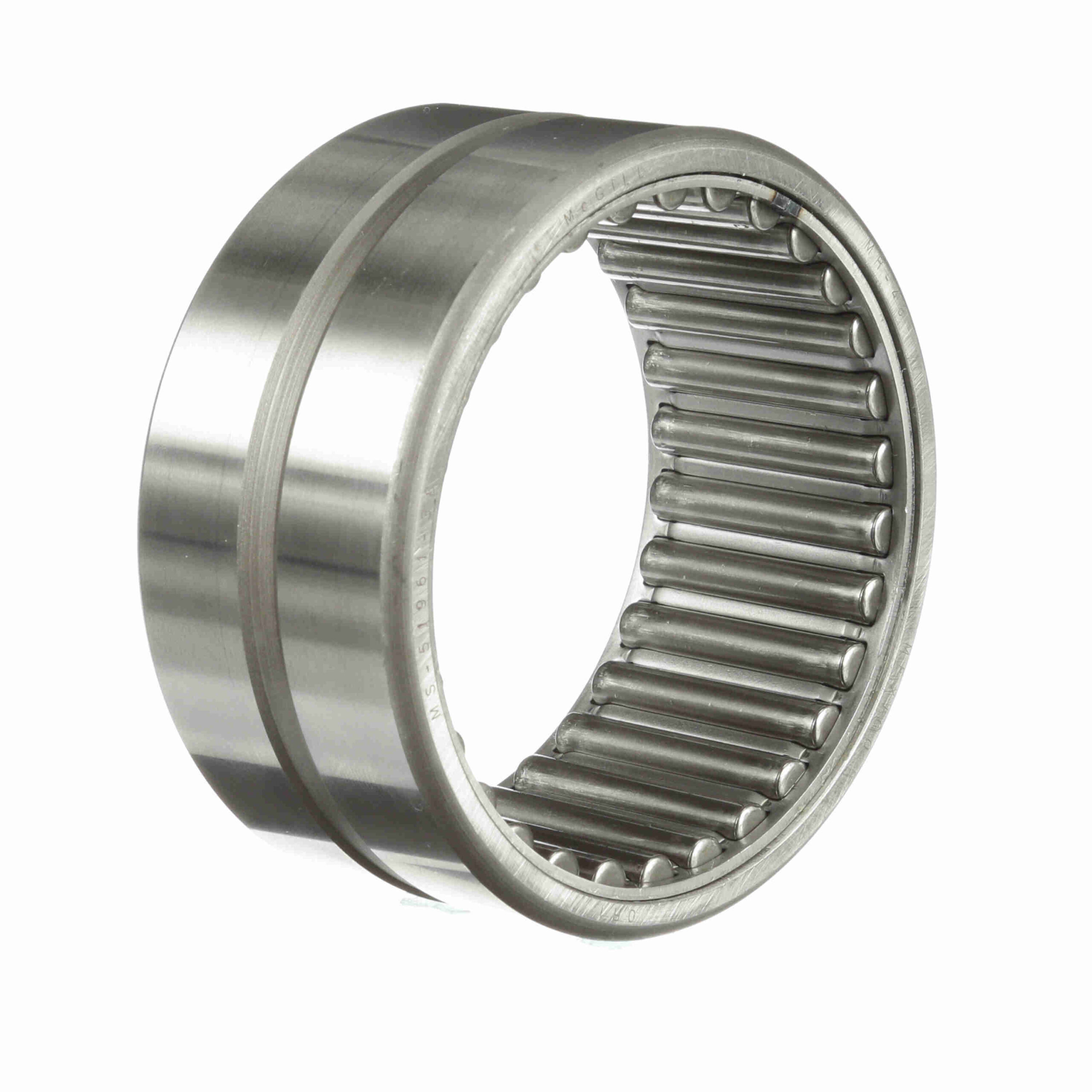

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 48
$62.35
Availability: 90 in stock
Availability: 90 in stock
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Dynamic Load Rating (lb): | 30, 300 lb | Speed [Max] Grease (RPM): | 2, 000 rpm |
| Platform: | Cagerol Bearing | Sealed: | None |
| Speed [Max] Oil (RPM): | 4, 000 rpm | Duplexing: | No |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 63, 400 lb |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 39, MI 40 | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166067984 | Weight: | 1.49 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Related products

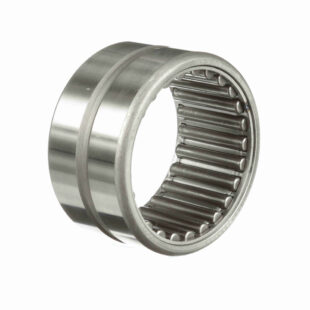

MR 24 SS
