- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned out
MR 20 RSS

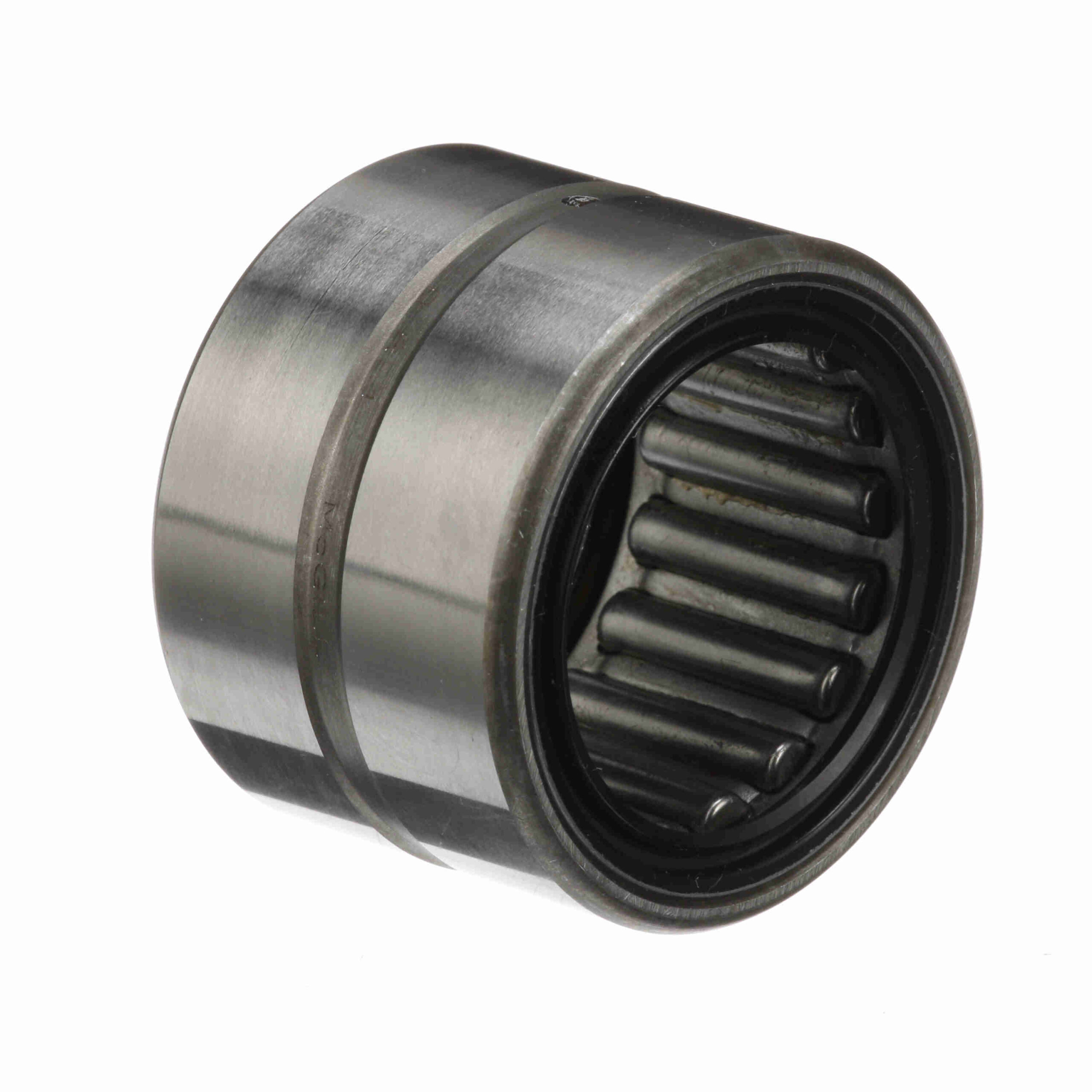

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 20 RSS
$28.25
Availability: 139 in stock
Availability: 139 in stock
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Platform: | Cagerol Bearing | Speed [Max] Grease (RPM): | 3, 050 rpm |
| Dynamic Load Rating (lb): | 9, 020 lb | Sealed: | Sealed - Both Sides |
| Static Load Rating (lb): | 13, 100 lb | Duplexing: | No |
| Full Complement/Caged: | Caged | Related Inner Ring: | MI 16 |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Enclosure: | Sealed Both Sides | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166065928 |
| Weight: | 0.31 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
Related products
MR 12 SS
$22.76Add to cartMcGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 12 SS

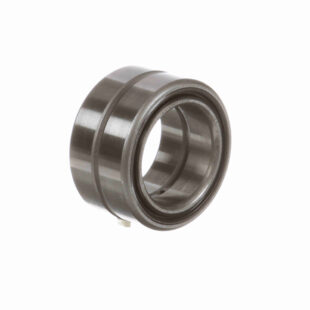

MR 28 RSS/MI 24
