- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 60 MM

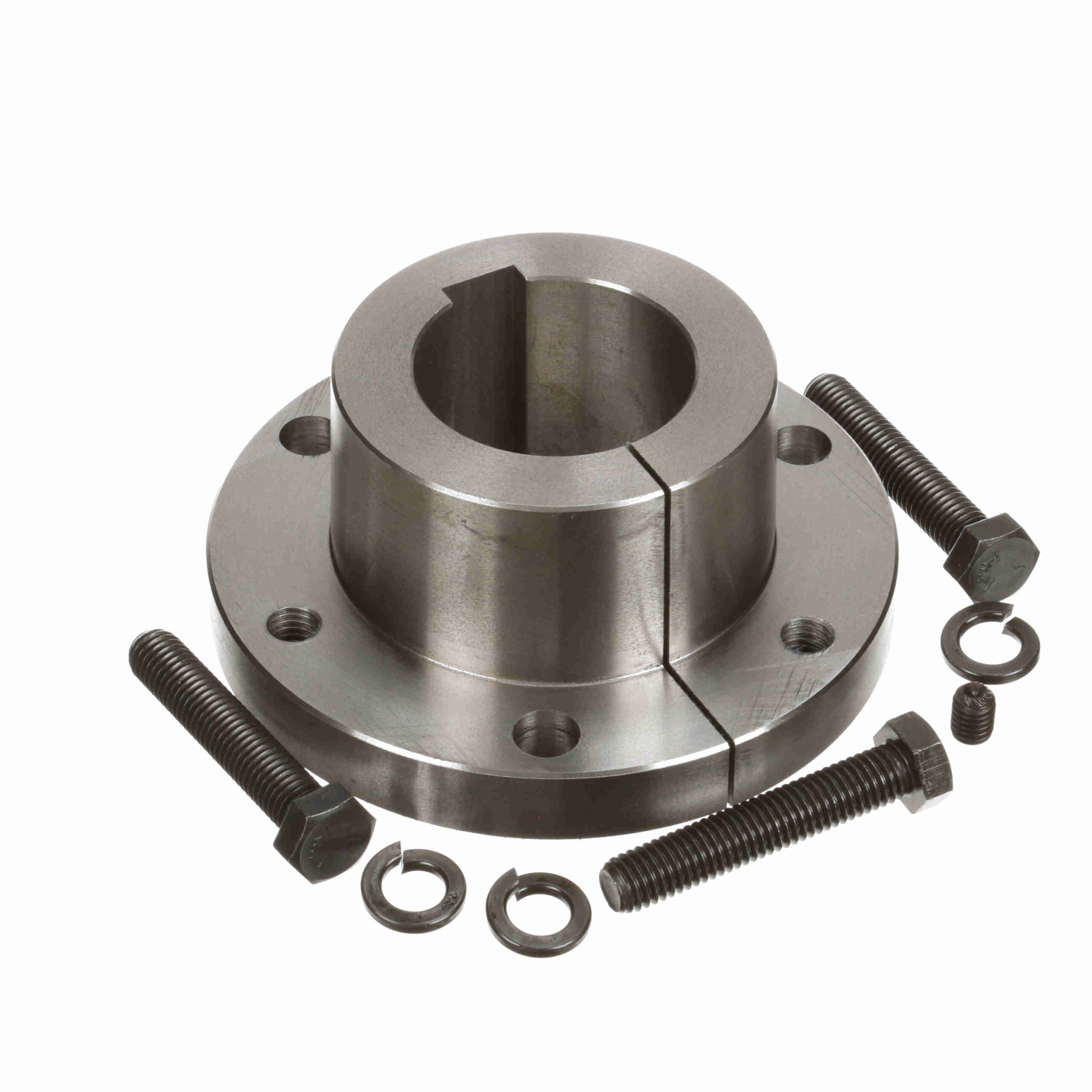

Browning Q-D Bushing – Metric Bore Type – E 60 MM
$397.46
Out of stock
Out of stock
| Wrench Torque (ft.-lbs.): | 60 | Cap Screws (Bolt Circle): | 5 |
|---|---|---|---|
| Bushing Type: | E | Length Through Bore (mm): | 67.056 mm |
| Bore Type: | Metric | Total Length (in): | 2.64 in |
| Keyway: | 18mm x 5.5mm | Mounting Type: | Conventional |
| Total Length (mm): | 67.056 mm | Torque Capacity (in-lb): | 20, 000 |
| Outside Diameter (mm): | 152.4 mm | Cap Screws (No.): | 3 |
| Product Type: | Q-D Bushing | Compatible Bore Size [Max] (mm): | 60 mm |
| Cap Screws (Size): | 1/2-13 x 2 3/4 | Outside Diameter (in): | 6 in |
| Bore Size (mm): | 60 mm | Flange Thickness: | 0.75 in |
| Barrel Length: | 1.89 in | Material: | Ductile Iron-Grade 65-45-61 |
| Barrel Diameter: | 3.834 in | UPC: | 662289615360 |
| Weight: | 8.24 LB | Packaged Length: | 6.6 Inches |
| Packaged Width: | 6.4 Inches | Packaged Height: | 3.5 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
