- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS40H19

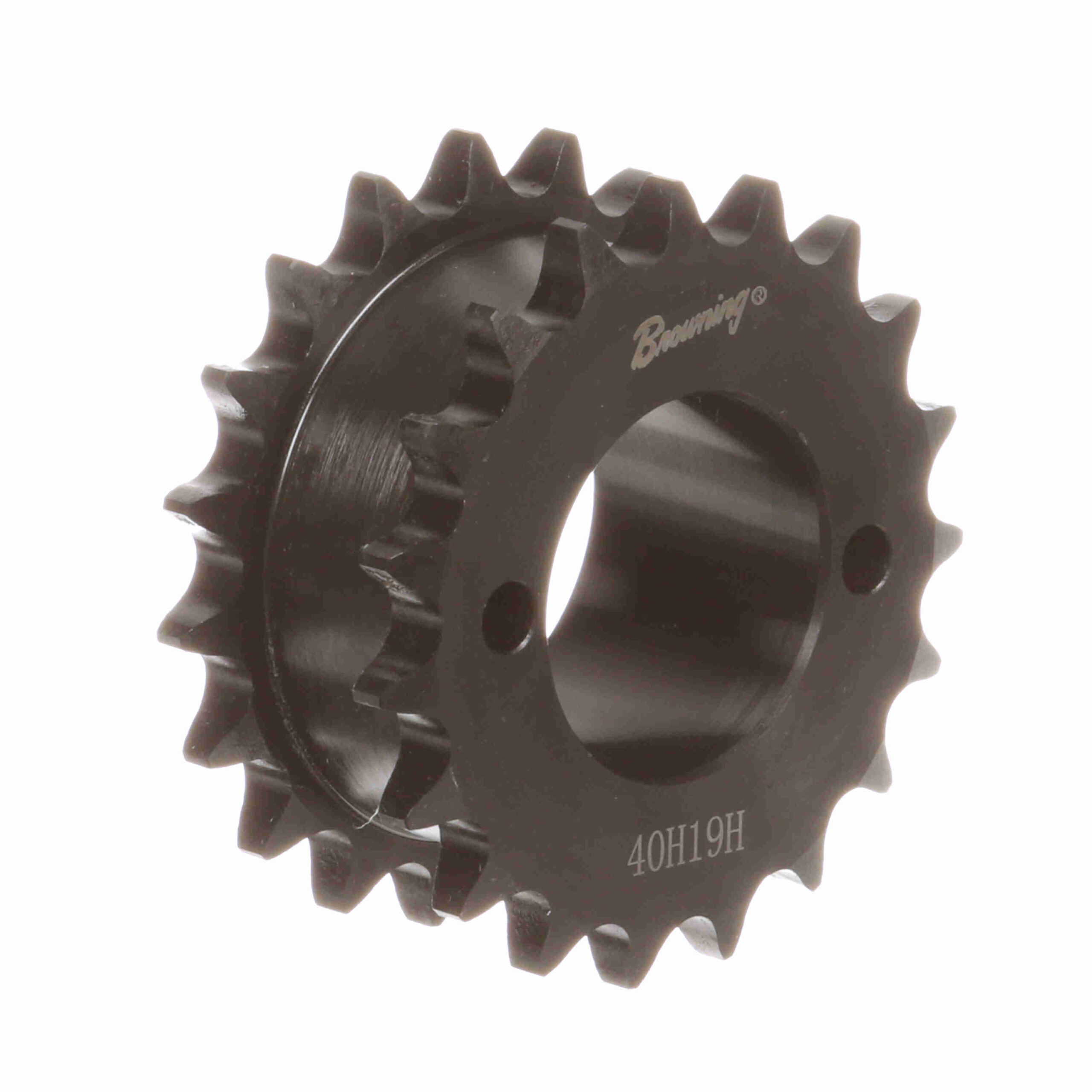

Browning Steel Bushed Bore Roller Chain Sprocket – DS40H19
$332.69
Availability: 1 in stock
Availability: 1 in stock
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Material: | Steel |
|---|---|---|---|
| Bore (Min) (in): | 0.375 in | Chain Pitch (in): | 0.5 in |
| Bore (Max) (in): | 1.5 in | Product Type: | Bushed Roller Chain Sprocket |
| Pitch Diameter (in): | 3.0378 in | Number of teeth: | 19 |
| Bushing Used: | Split Taper | Outside Diameter (in): | 3.296 in |
| Overall Length (in): | 1.98075 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 2.494 in |
| Pitch Type: | Single | Hardened Teeth: | Yes |
| UPC: | 662289198351 | Weight: | 1.43 LB |
| Packaged Length: | 4.40 Inches | Packaged Width: | 4.20 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
