- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60P16

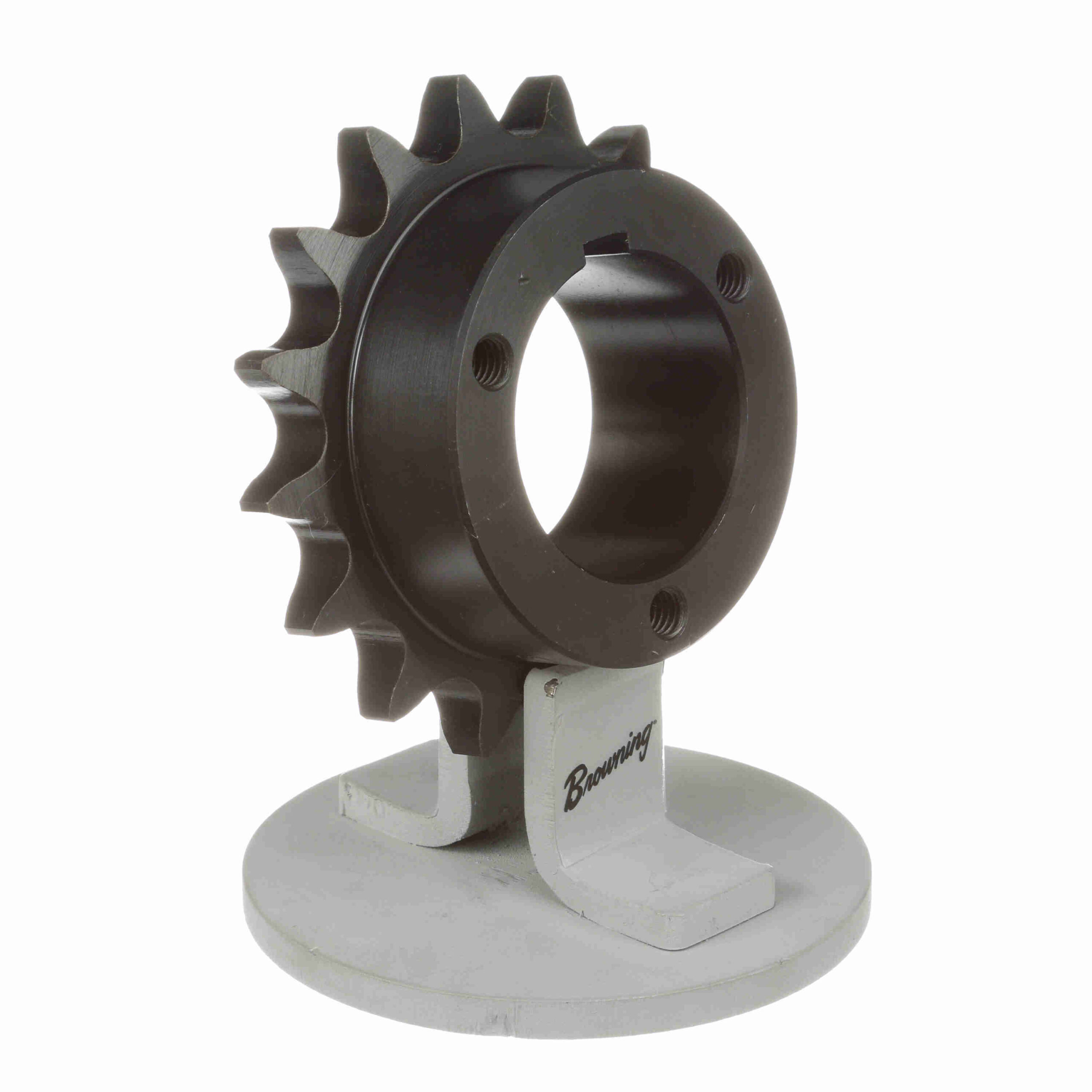

Browning Steel Bushed Bore Roller Chain Sprocket – H60P16
$139.71
Availability: 6 in stock
Availability: 6 in stock
| Chain Pitch (in): | 0.75 in | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Bore (Max) (in): | 1.75 in | Bushing Used: | Split Taper |
| Material: | Steel, Hardened Teeth | Product Type: | Bushed Roller Chain Sprocket |
| Number of teeth: | 16 | Pitch Diameter (in): | 3.844 in |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Overall Length (in): | 2.140625 in |
| Outside Diameter (in): | 4.221 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Width Across Tooth Sets: | 0.459 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289135660 |
| Weight: | 2.03 LB | Packaged Length: | 5.10 Inches |
| Packaged Width: | 4.90 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
