- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN204 RMW

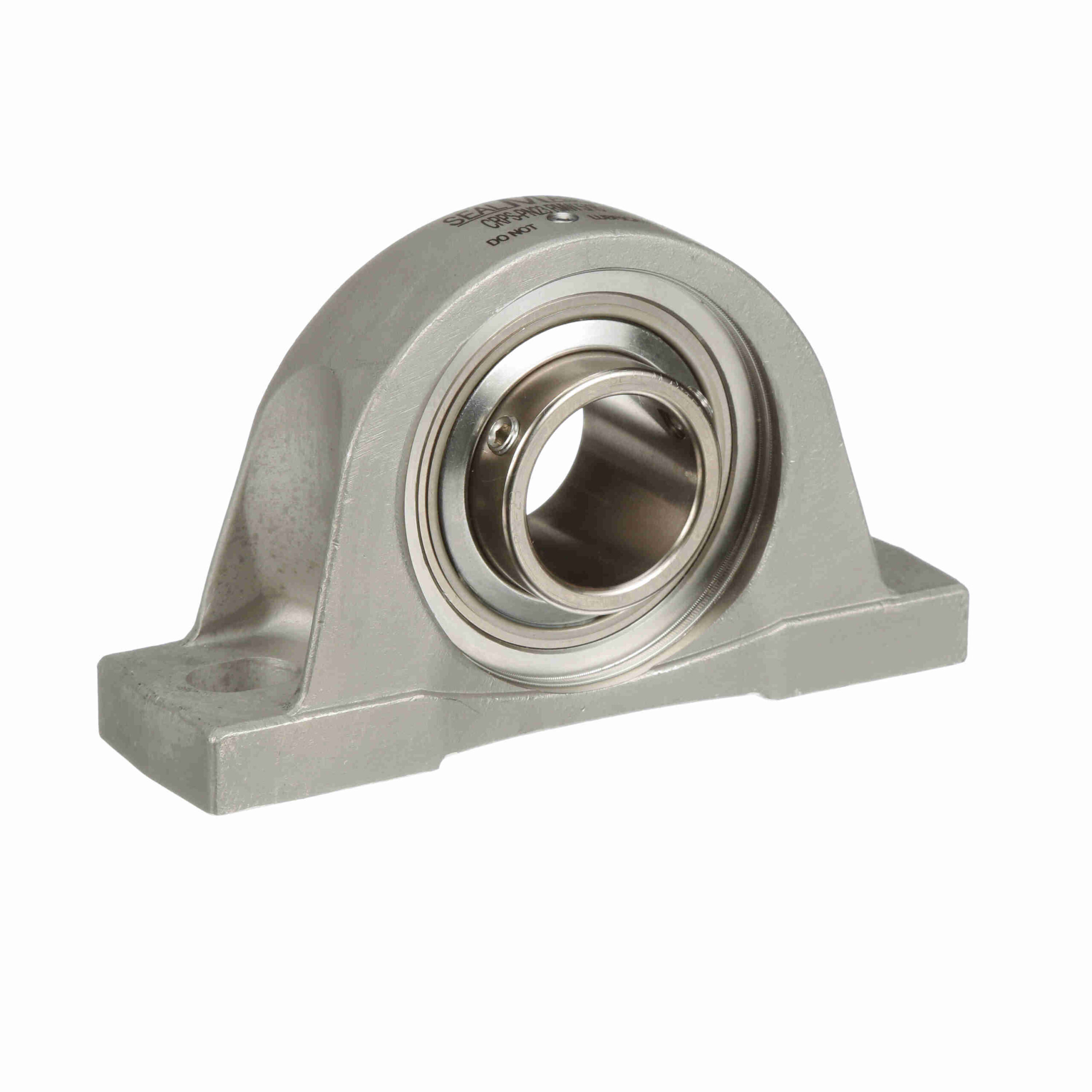

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRPS-PN204 RMW
$929.97
Out of stock
Out of stock
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Duty Series: | Standard Duty | Expansion: | No |
| Housing Material: | Stainless Steel | Housing Type: | Pillow Block, Two Bolt |
| Retainer Type: | Land Riding Retainer | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
| Seal Type: | Multi-Lip Contact Seal | Internal Clearance: | Standard |
| Insert No.: | PN-204 | Speed (Max): | 3100 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Relubricatable: | No | Locking Type: | Setscrew |
| End Cap: | Yes | Replaceable Insert: | Yes |
| Housing Color: | Silver | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Tapered Lands | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | Platform: | PN Gold |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 1, 444 |
| Cage Material: | PPS | UPC: | 662461374610 |
| Weight: | 1.90 LB | Packaged Length: | 3.19 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
