- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
8S5V150

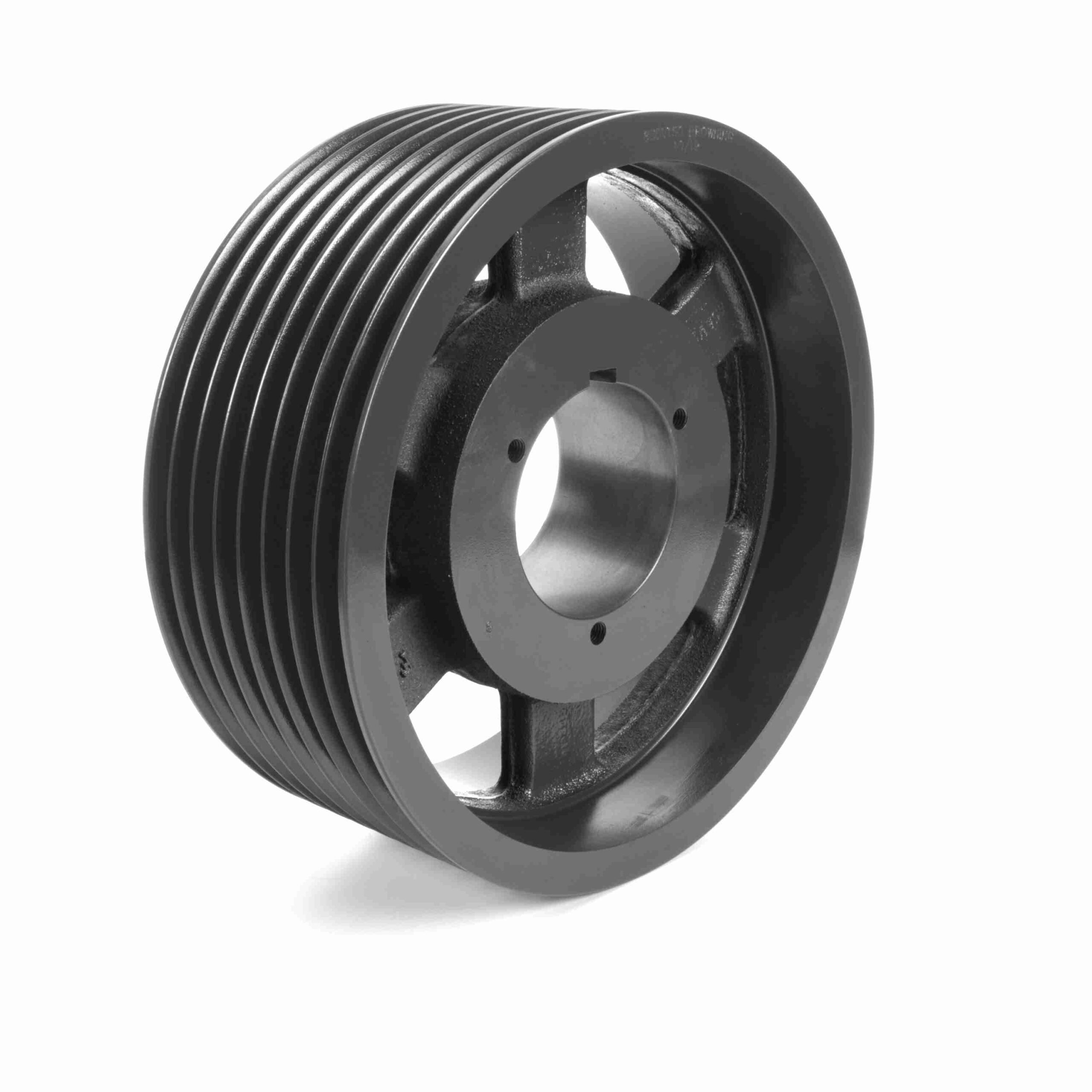

Browning 8 Groove Cast Iron Bushed Bore Multiple Sheave – 8S5V150
$1,558.40
Out of stock
Out of stock
| Outside Diameter (in): | 15 in | Pitch Diameter (5V): | 14.9 |
|---|---|---|---|
| Bushing Used: | S1 | Number of Grooves: | 8 |
| Overall Length (in): | 6.015625 in | Pulley Material: | Cast Iron |
| Material: | Cast Iron | Belt Section: | 5V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.6875 in |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.6875 - 4.1875 |
| Keyway Size: | .750 | Pulley Construction: | Spoked |
| Overall Width (in): | 6 | Face Width (in): | 5.8125 |
| UPC: | 662289312115 | Weight: | 83.00 LB |
| Packaged Length: | 15.00 Inches | Packaged Width: | 15.00 Inches |
| Packaged Height: | 6.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
