- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6S5V150

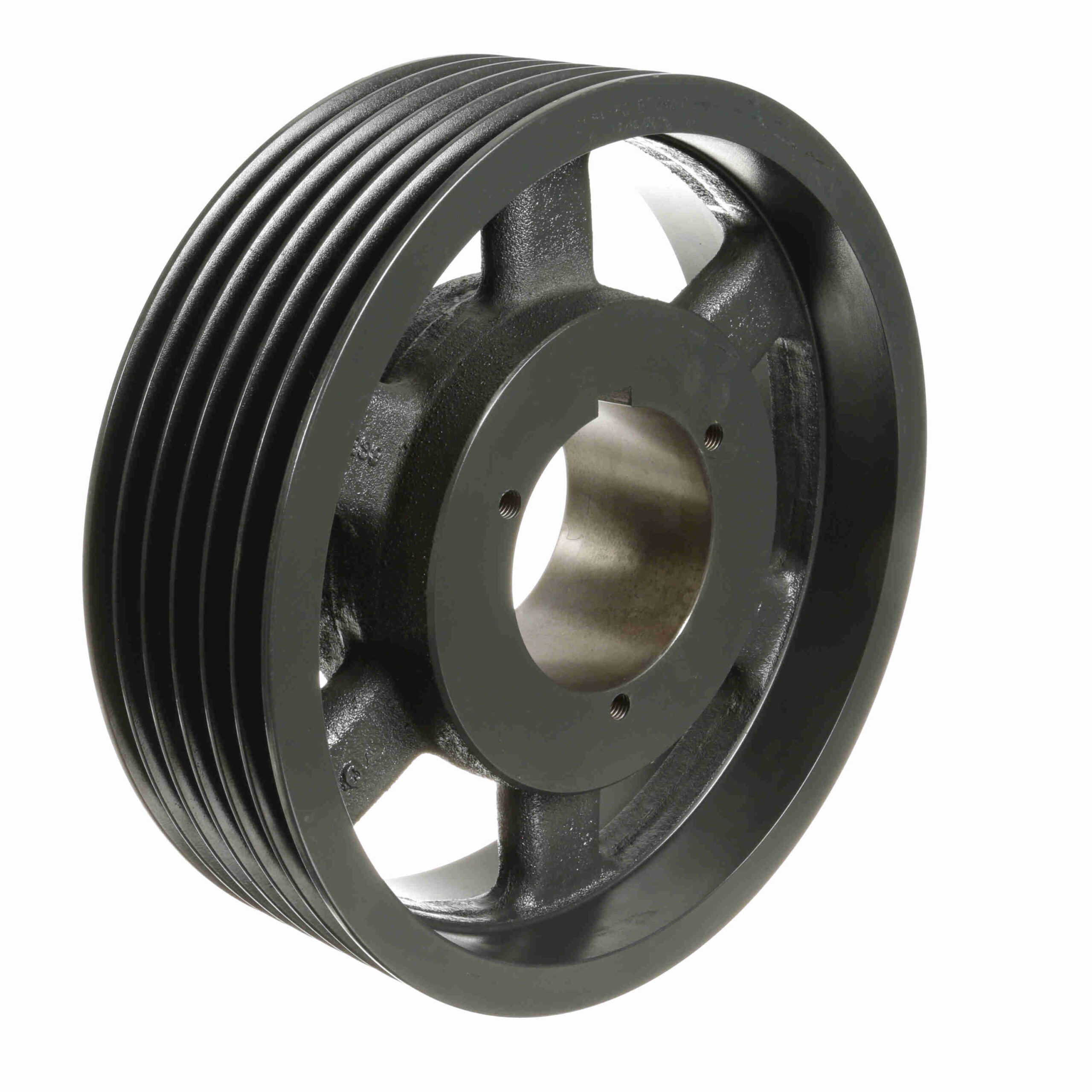

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6S5V150
$1,358.22
Out of stock
Out of stock
| Pitch Diameter (5V): | 14.9 | Outside Diameter (in): | 15 in |
|---|---|---|---|
| Number of Grooves: | 6 | Pulley Material: | Cast Iron |
| Bushing Used: | S1 | Material: | Cast Iron |
| Overall Length (in): | 5.328125 in | Bore (Min) (in): | 1.6875 in |
| Product Type: | Multiple Sheaves | Belt Section: | 5V |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Spoked |
| Face Width (in): | 4.4375 | Keyway Size: | .750 |
| Overall Width (in): | 5.3125 | Bushing Bore Range: | 1.6875 - 4.1875 |
| UPC: | 662289101252 | Weight: | 69.25 LB |
| Packaged Length: | 15.75 Inches | Packaged Width: | 15.75 Inches |
| Packaged Height: | 4.75 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
