- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
45V975E

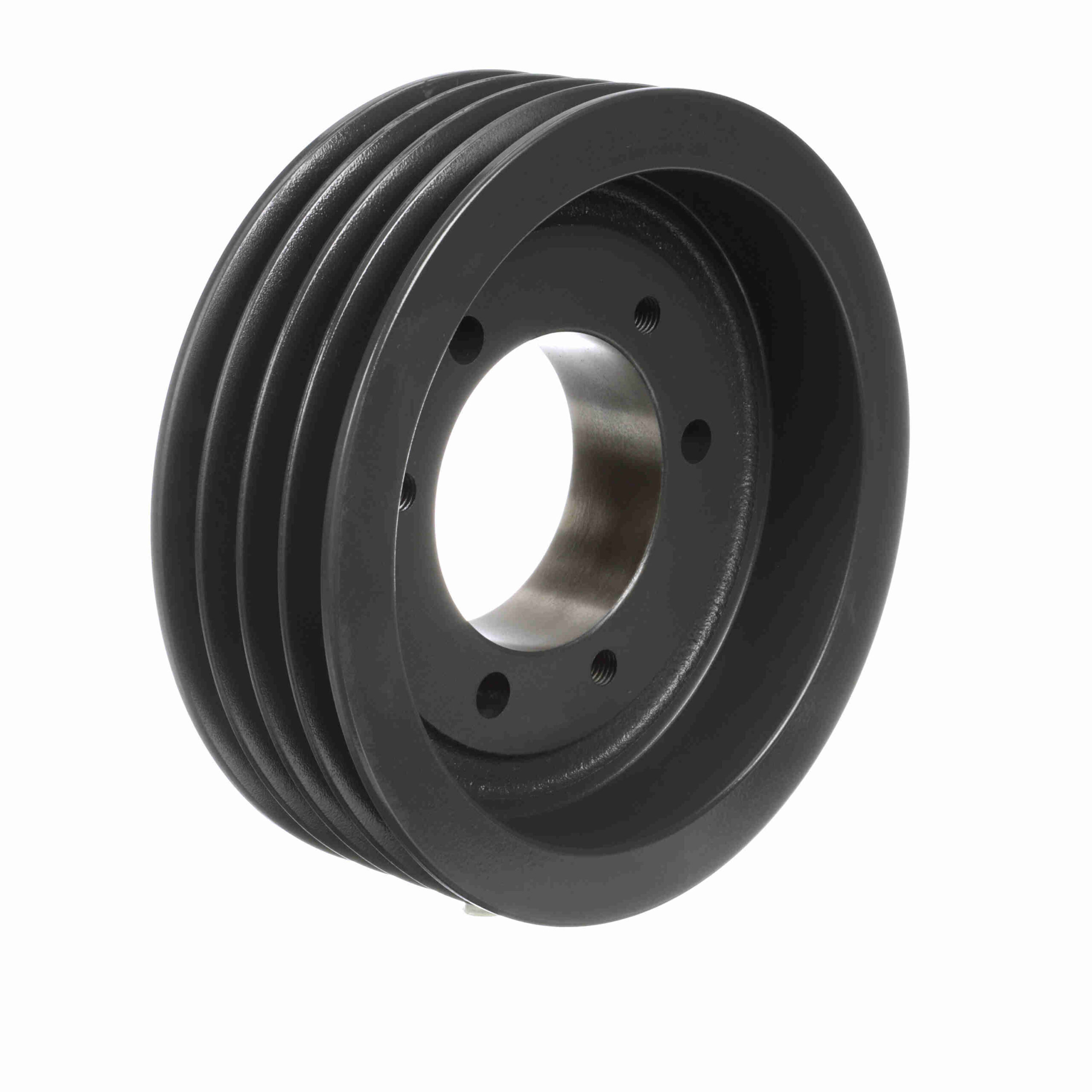

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 45V975E
$650.78
Out of stock
Out of stock
| Bushing Used: | E | Number of Grooves: | 4 |
|---|---|---|---|
| Model Name: | 45V_LG_Sheavemaster | Pitch Diameter (5V): | 9.65 |
| Material: | Cast Iron | Pulley Material: | Cast Iron |
| Outside Diameter (in): | 9.75 in | Product Type: | Multiple Sheaves |
| Belt Section: | 5V | Bore (Min) (in): | 0.875 in |
| Bore Type: | QD Bushed | Bushing Bore Range: | 0.875 - 3.500 |
| UPC: | 662289416301 | Weight: | 28.06 LB |
| Packaged Length: | 9.75 Inches | Packaged Width: | 9.75 Inches |
| Packaged Height: | 3.25 Inches |
