- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
80HC 10FT

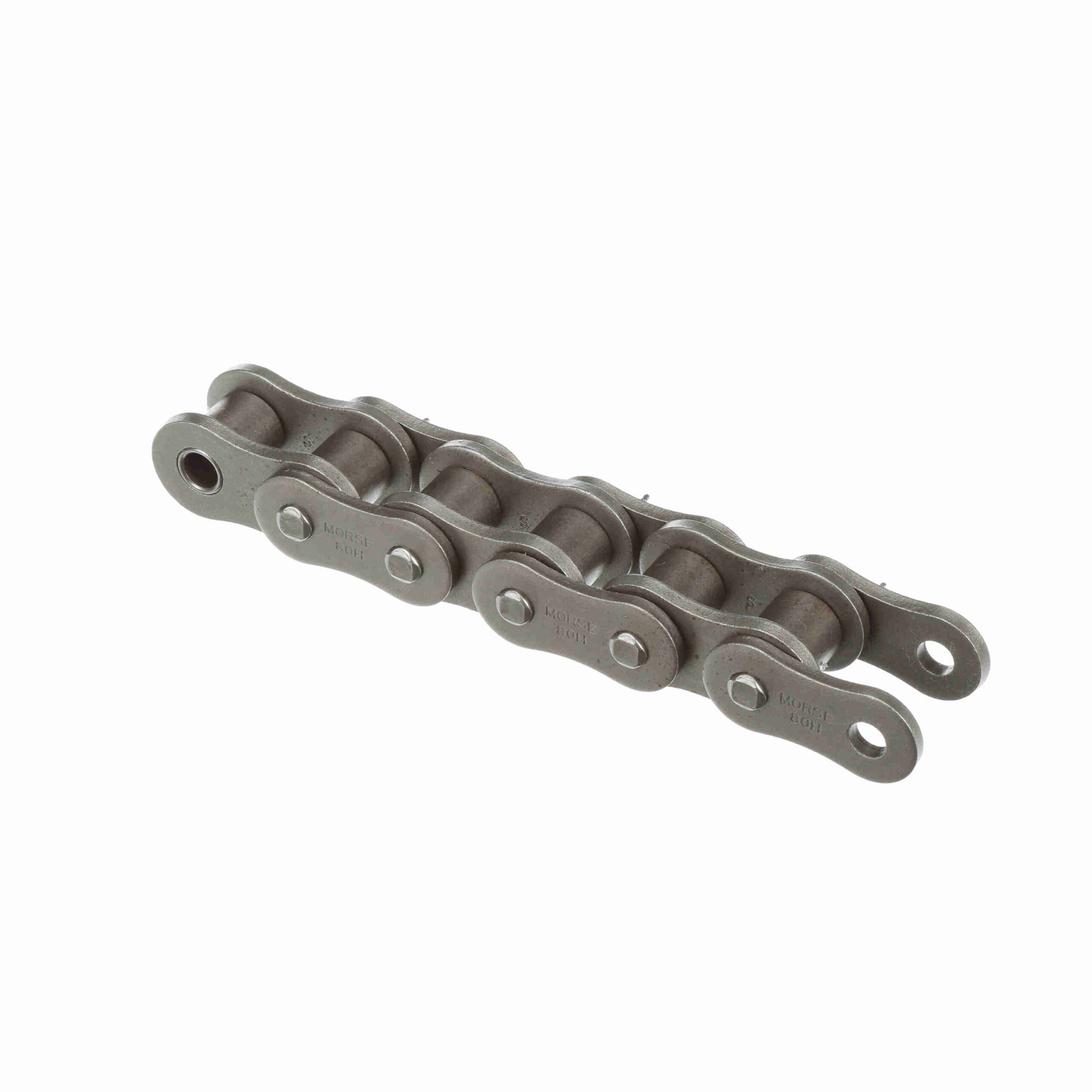

Morse Heavy Cottered Roller Chain – 80HC 10FT
$51.75
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Number of Connecting Links Included: | 1 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 14, 500 | Centerline to Opposite cotter Pin Side: | 0.7 |
| Roller Width (in): | 0.625 in | Number of Strands/Width: | 1 |
| Width Over Pins/Total Width: | 1.4 | Chain Size: | 80 |
| Material: | Steel | Pin Diameter (in): | 0.312 in |
| Centerline to Outside of cotter Pin: | 0.804 | Chain Construction: | Cottered |
| Inside Plate Height: | 0.934 | Plate Thickness: | 0.156 |
| Roller Diameter (in): | 0.625 in | Product Type: | Roller Chain |
| Chain Pitch (in): | 1 in | Chain Type: | Heavy |
| Coating: | Uncoated | Total Length: | 10 FT ft |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.4 | UPC: | 662288455752 |
| Weight: | 2.20 LB | Packaged Length: | 11.60 Inches |
| Packaged Width: | 11.60 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
