- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
80H O/L

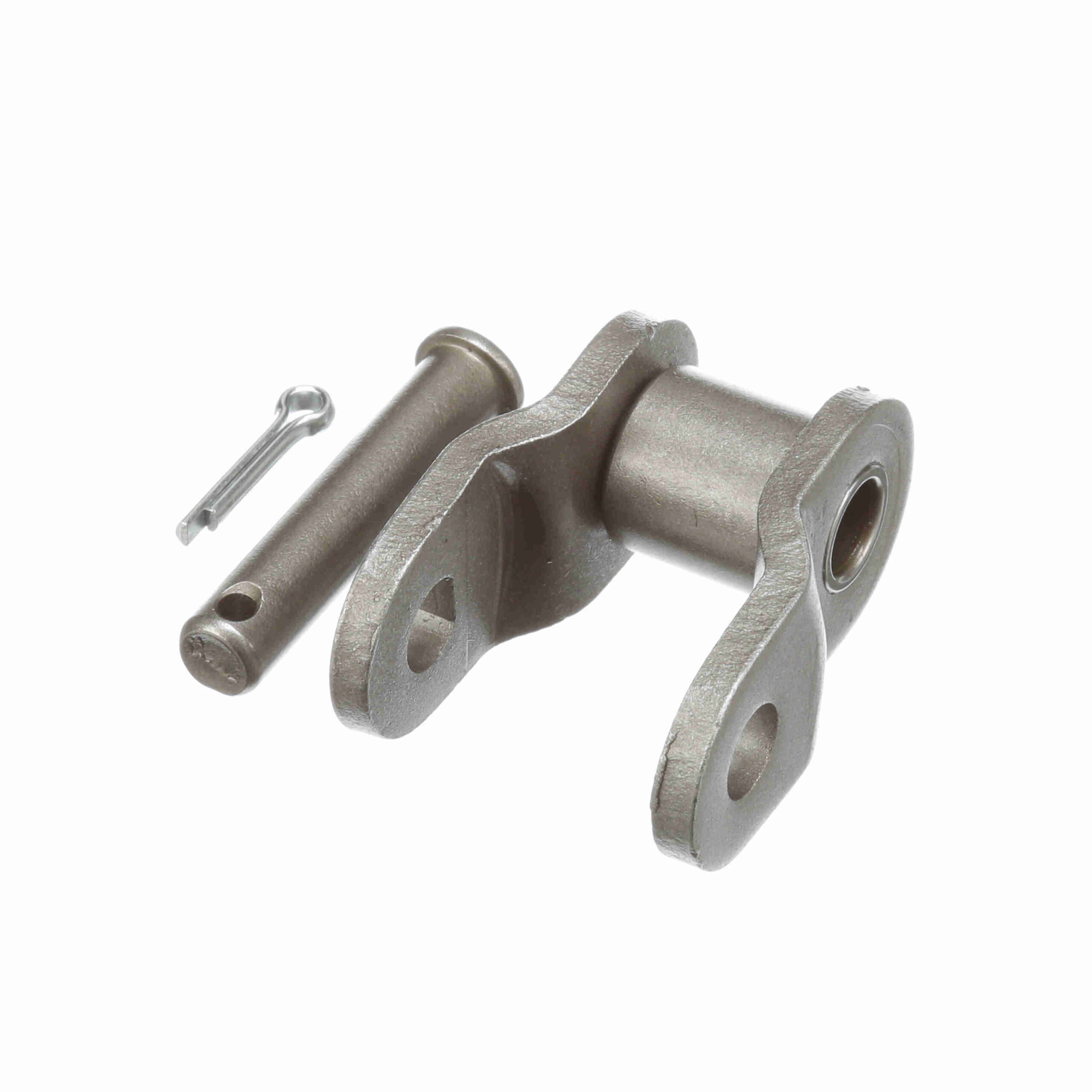

Morse Heavy Roller Chain Offset Link – 80H O/L
$16.67
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 0.7 | Number of Strands/Width: | 1 |
|---|---|---|---|
| Pin Diameter (in): | 0.312 in | Material: | Steel |
| Plate Thickness: | 0.156 | Single Pitch Offset Link: | Cottered |
| Inside Plate Height: | 0.934 | Side Plate Cfg.: | Hourglass |
| Width Over Pins/Total Width: | 1.4 | Average Ultimate Tensile Strength (psi): | 14, 500 |
| Roller Diameter (in): | 0.625 in | Chain Size: | 80 |
| Centerline to Outside of cotter Pin: | 0.804 | Roller Width (in): | 0.625 in |
| Chain Type: | Heavy | Product Type: | Roller Chain |
| Chain Pitch (in): | 1 in | Link Type: | Offset Link |
| UPC: | 662288456353 | Weight: | 0.18 LB |
| Packaged Length: | 3.40 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
