- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
80 O/L

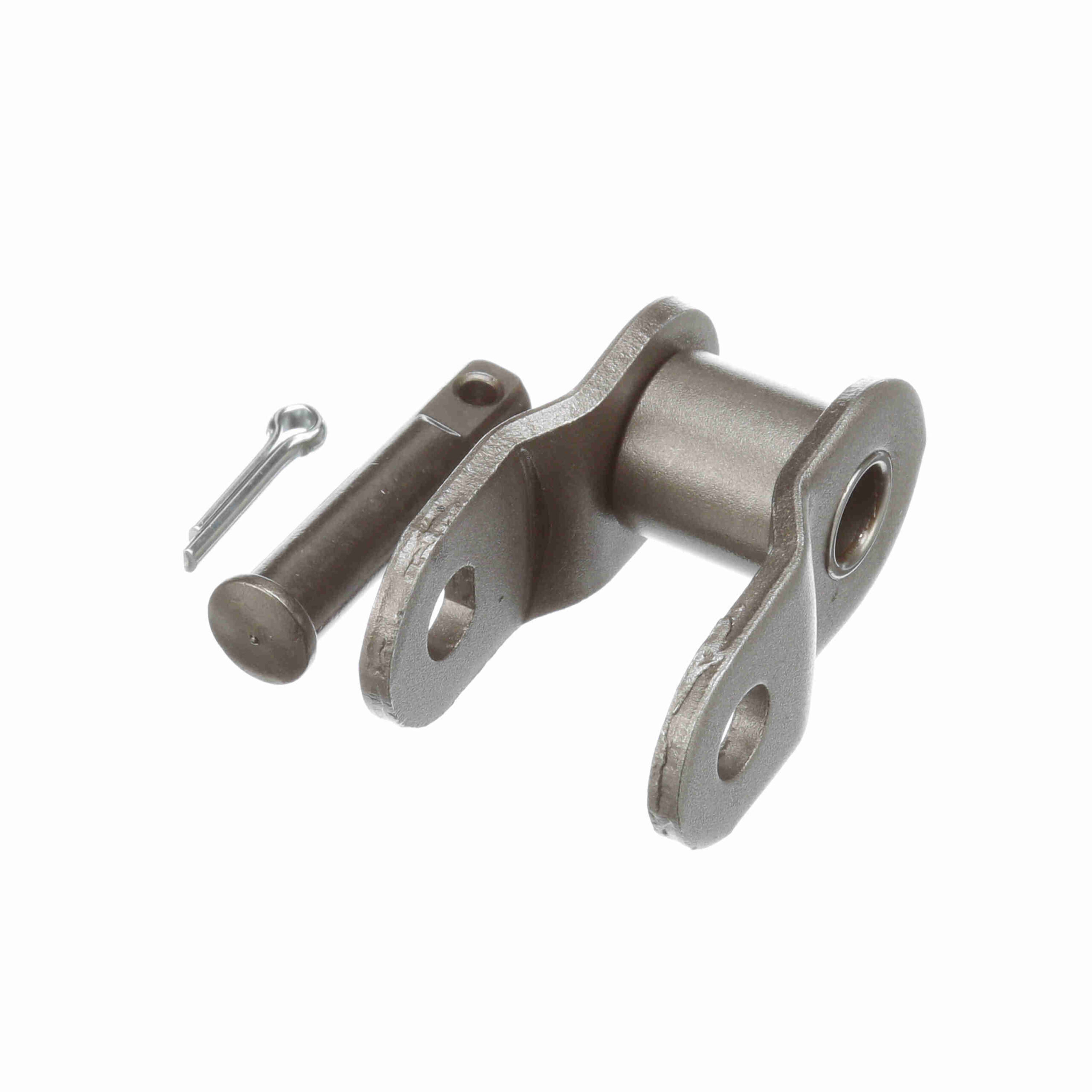

Morse Standard Roller Chain Offset Link – 80 O/L
$13.09
Out of stock
Out of stock
| Single Pitch Offset Link: | Cottered | Number of Strands/Width: | 1 |
|---|---|---|---|
| Material: | Steel | Plate Thickness: | 0.125 |
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.312 in |
| Centerline to Opposite cotter Pin Side: | 0.637 | Chain Size: | 80 |
| Width Over Pins/Total Width: | 1.274 | Centerline to Outside of cotter Pin: | 0.741 |
| Average Ultimate Tensile Strength (psi): | 14, 500 | Roller Diameter (in): | 0.625 in |
| Inside Plate Height: | 0.934 | Roller Width (in): | 0.625 in |
| Total Length: | 10 FT ft | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 1 in |
| Link Type: | Offset Link | UPC: | 662288395553 |
| Weight: | 0.15 LB | Packaged Length: | 6.60 Inches |
| Packaged Width: | 3.10 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
