- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2Q3V140

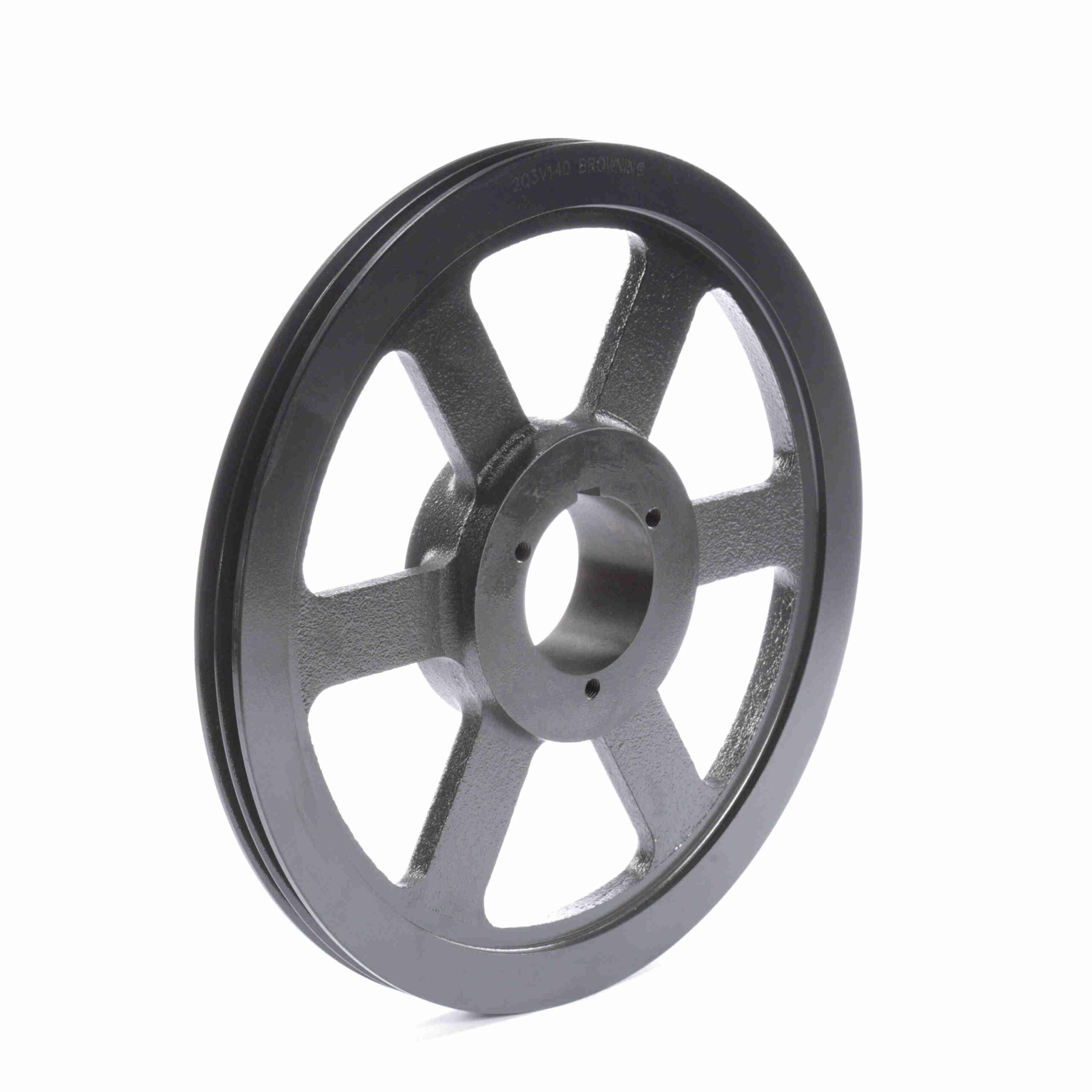

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2Q3V140
$572.52
Out of stock
Out of stock
| Outside Diameter (in): | 14 in | Pitch Diameter (3V): | 13.94 |
|---|---|---|---|
| Pulley Material: | Cast Iron | Bushing Used: | Q1 |
| Overall Length (in): | 2.828125 in | Material: | Cast Iron |
| Number of Grooves: | 2 | Bore (Min) (in): | 0.75 in |
| Product Type: | Multiple Sheaves | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Overall Width (in): | 2.78125 | Face Width (in): | 1.0938 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Pulley Construction: | Spoked |
| UPC: | 662289311941 | Weight: | 23.30 LB |
| Packaged Length: | 14.00 Inches | Packaged Width: | 14.00 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
