- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60-2R 50FT

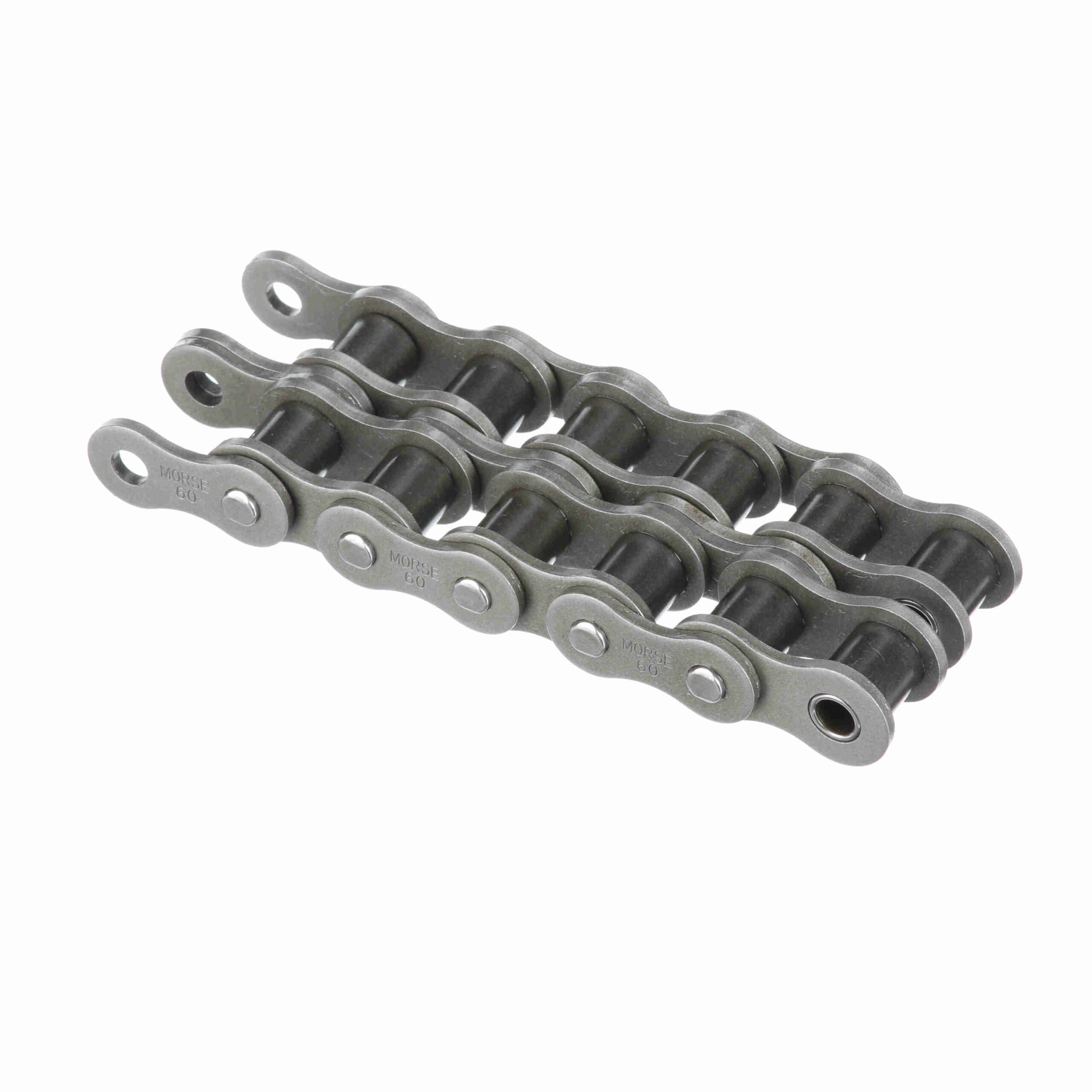

Morse Standard Riveted Roller Chain – 60-2R 50FT
$48.80
Out of stock
Out of stock
| Roller Diameter (in): | 0.468 in | Width Over Pins/Total Width: | 1.893 |
|---|---|---|---|
| Centerline to Opposite cotter Pin Side: | 0.947 | Number of Strands/Width: | 2 |
| Roller Width (in): | 0.5 in | Inside Plate Height: | 0.7 |
| Pin Diameter (in): | 0.234 in | Centerline to Outside of cotter Pin: | 1.038 |
| Side Plate Cfg.: | Hourglass | Material: | Steel |
| Number of Connecting Links Included: | 5 | Chain Construction: | Riveted |
| Average Ultimate Tensile Strength (psi): | 17, 000 | Chain Size: | 60 |
| Center Plates: | Loose Fit, Press Fit Optional | Plate Thickness: | 0.094 |
| Total Length: | 50 FT ft | Chain Pitch (in): | 0.75 in |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Coating: | Uncoated | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 0.897 |
| Pin Length - Riveted: | 1.893 | UPC: | 662288467779 |
| Weight: | 1.98 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
