- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60-2 O/L

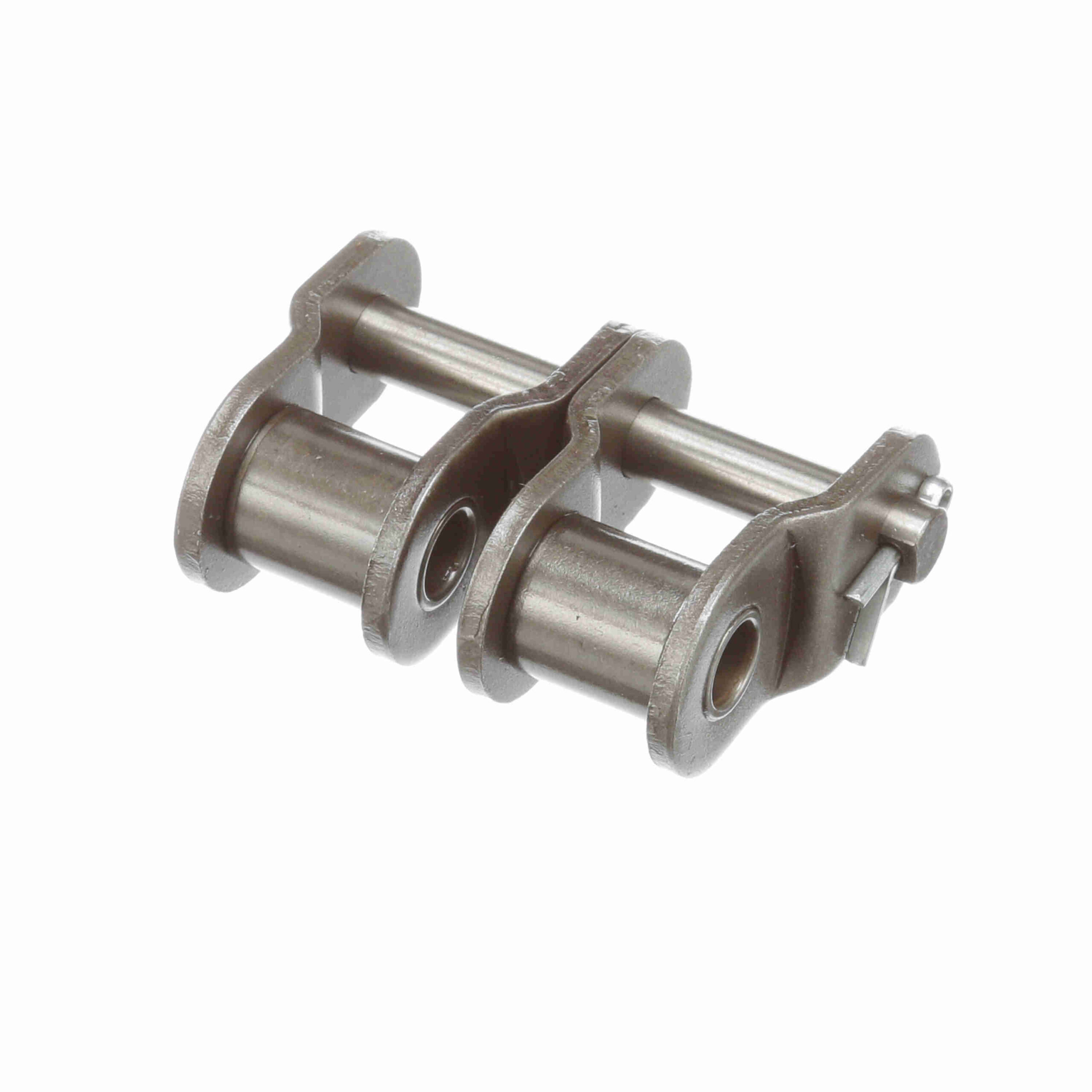

Morse Standard Roller Chain Offset Link – 60-2 O/L
$18.21
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 1.038 | Material: | Steel |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 17, 000 | Chain Size: | 60 |
| Width Over Pins/Total Width: | 1.893 | Roller Diameter (in): | 0.468 in |
| Side Plate Cfg.: | Hourglass | Plate Thickness: | 0.094 |
| Inside Plate Height: | 0.7 | Single Pitch Offset Link: | Cottered |
| Centerline to Opposite cotter Pin Side: | 0.947 | Pin Diameter (in): | 0.234 in |
| Number of Strands/Width: | 2 | Roller Width (in): | 0.5 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Pitch (in): | 0.75 in | Link Type: | Offset Link |
| UPC: | 662288395546 | Weight: | 0.14 LB |
| Packaged Length: | 2.60 Inches | Packaged Width: | 1.60 Inches |
| Packaged Height: | 0.80 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
