- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
5MVP70B84P

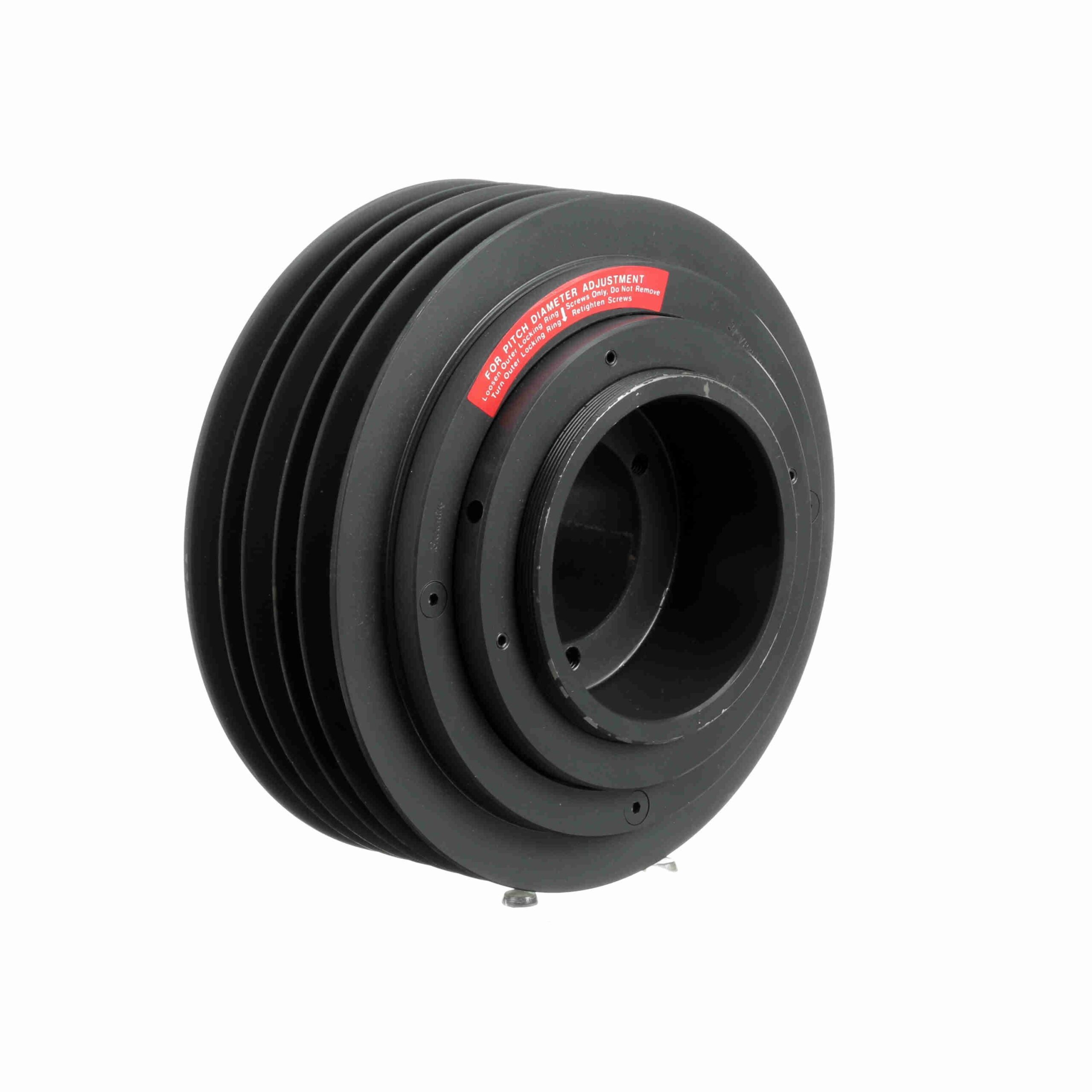

Browning 5 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 5MVP70B84P
$5,414.76
Out of stock
Out of stock
| Face Width (Min) (in): | 5.3125 in | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Outside Diameter (in): | 8.68 in | Type of Bore: | Bushed |
| Pitch Diameter Range (B): | 8.7 - 7.3 | Face Width (Max) (in): | 5.6875 in |
| Product Type: | MVP Sheaves | Number of Grooves: | 5 |
| Ring: | 5.375 | Outside Length (in): | 7 in |
| Pitch Diameter Range (A): | 8.2 - 7.1 | Material: | Cast Iron |
| Belt Section: | A, B | Bore (Max) (in): | 1.625 in |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 1.125 - 1.625 |
| Keyway Size: | .375 | UPC: | 662289164769 |
| Weight: | 52.50 LB | Packaged Length: | 8.68 Inches |
| Packaged Width: | 8.68 Inches | Packaged Height: | 7.00 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | United States of America |
