- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

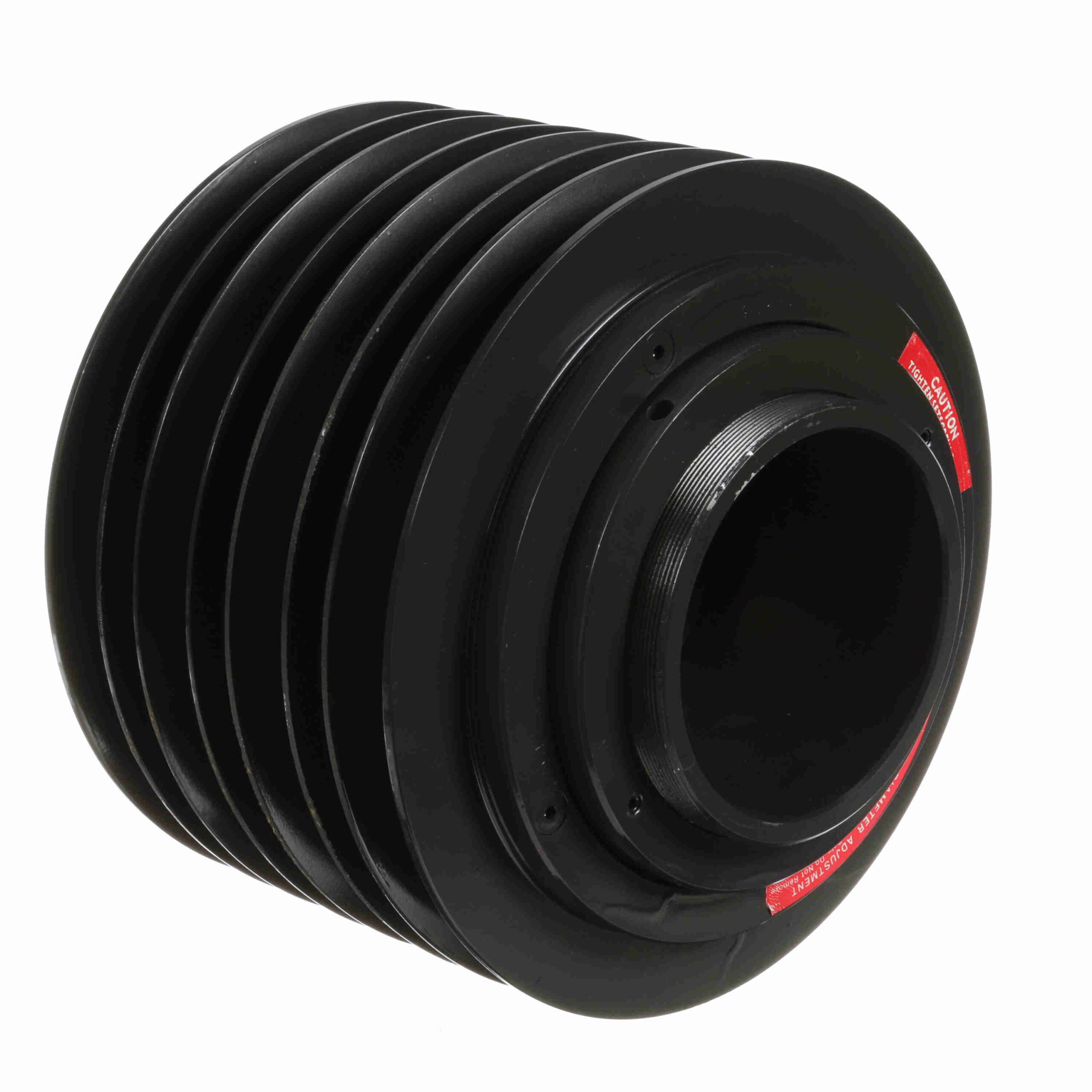

4MVP75C97Q
Browning 4 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 4MVP75C97Q
$3,805.70
Out of stock
Out of stock
| Type of Bore: | Bushed | Face Width (Max) (in): | 6.6875 in |
|---|---|---|---|
| Outside Diameter (in): | 10.06 in | Number of Grooves: | 4 |
| Pitch Diameter Range (C): | 10.1 - 7.9 | Face Width (Min) (in): | 6.09375 in |
| Ring: | 6.5 | Product Type: | MVP Sheaves |
| Outside Length (in): | 7.9375 in | Material: | Cast Iron |
| Bore (Min) (in): | 1.375 in | Belt Section: | C |
| Bore (Max) (in): | 2.5 in | Pulley Construction: | Solid |
| Number of Hubs: | 1 | Bore Type: | Split Taper Bushed |
| Bushing Used: | Q | Keyway Size: | 0.5 |
| Bushing Bore Range: | 1.375 - 2.500 | Overall Width (in): | 7.9375 |
| UPC: | 662289154821 | Weight: | 75.00 LB |
| Packaged Length: | 10.06 Inches | Packaged Width: | 10.06 Inches |
| Packaged Height: | 7.94 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | United States of America |
