- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H60H15

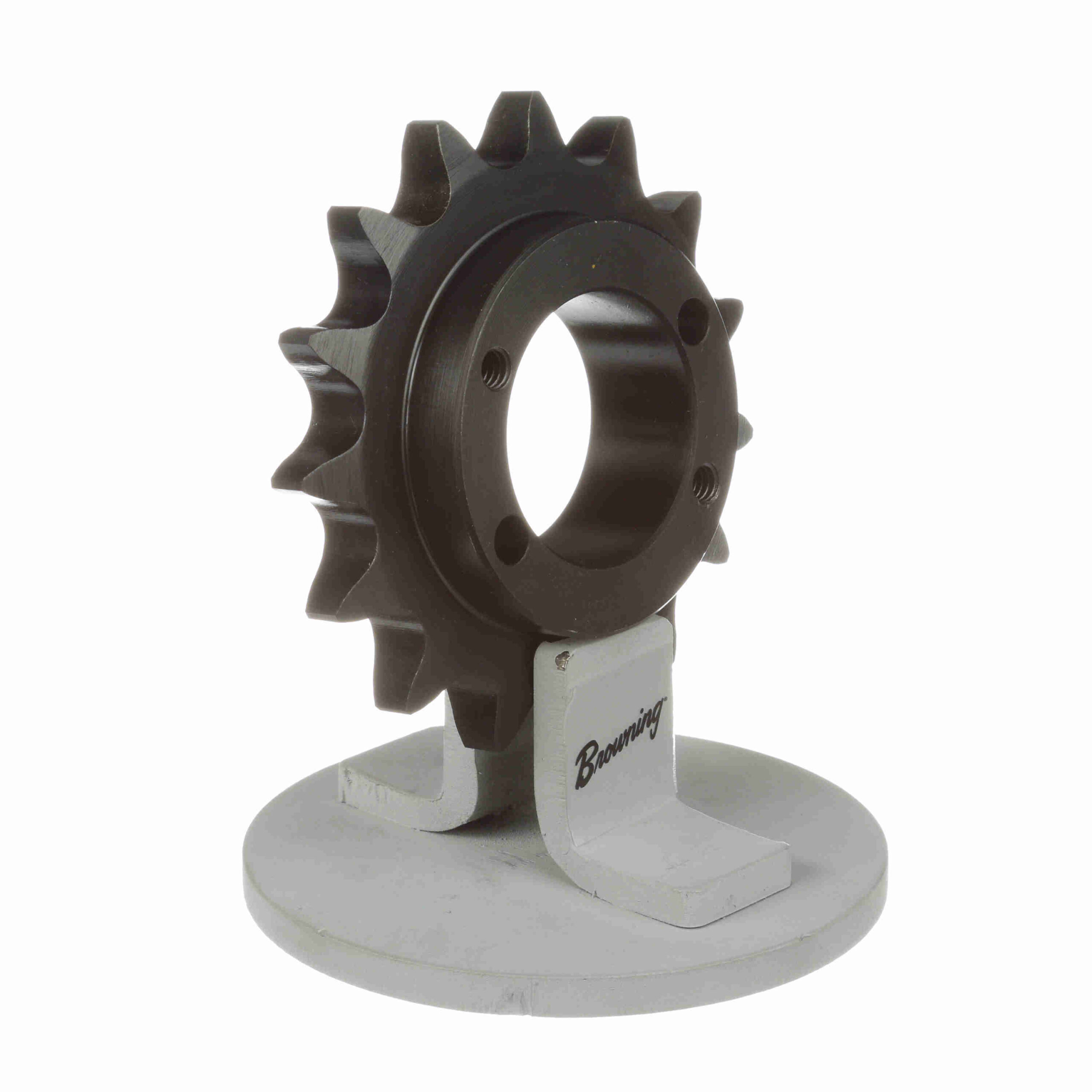

Browning Steel Bushed Bore Roller Chain Sprocket – H60H15
$153.81
Availability: 4 in stock
Availability: 4 in stock
| Bore (Min) (in): | 0.375 in | Bushing Used: | Split Taper |
|---|---|---|---|
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
| Number of teeth: | 15 | Chain Pitch (in): | 0.75 in |
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 3.607 in |
| Bore (Max) (in): | 1.5 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 3.978 in | Overall Length (in): | 1.46875 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.459 |
| Number of Hubs: | 1 | UPC: | 662289225651 |
| Weight: | 1.34 LB | Packaged Length: | 4.56 Inches |
| Packaged Width: | 4.56 Inches | Packaged Height: | 1.56 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
