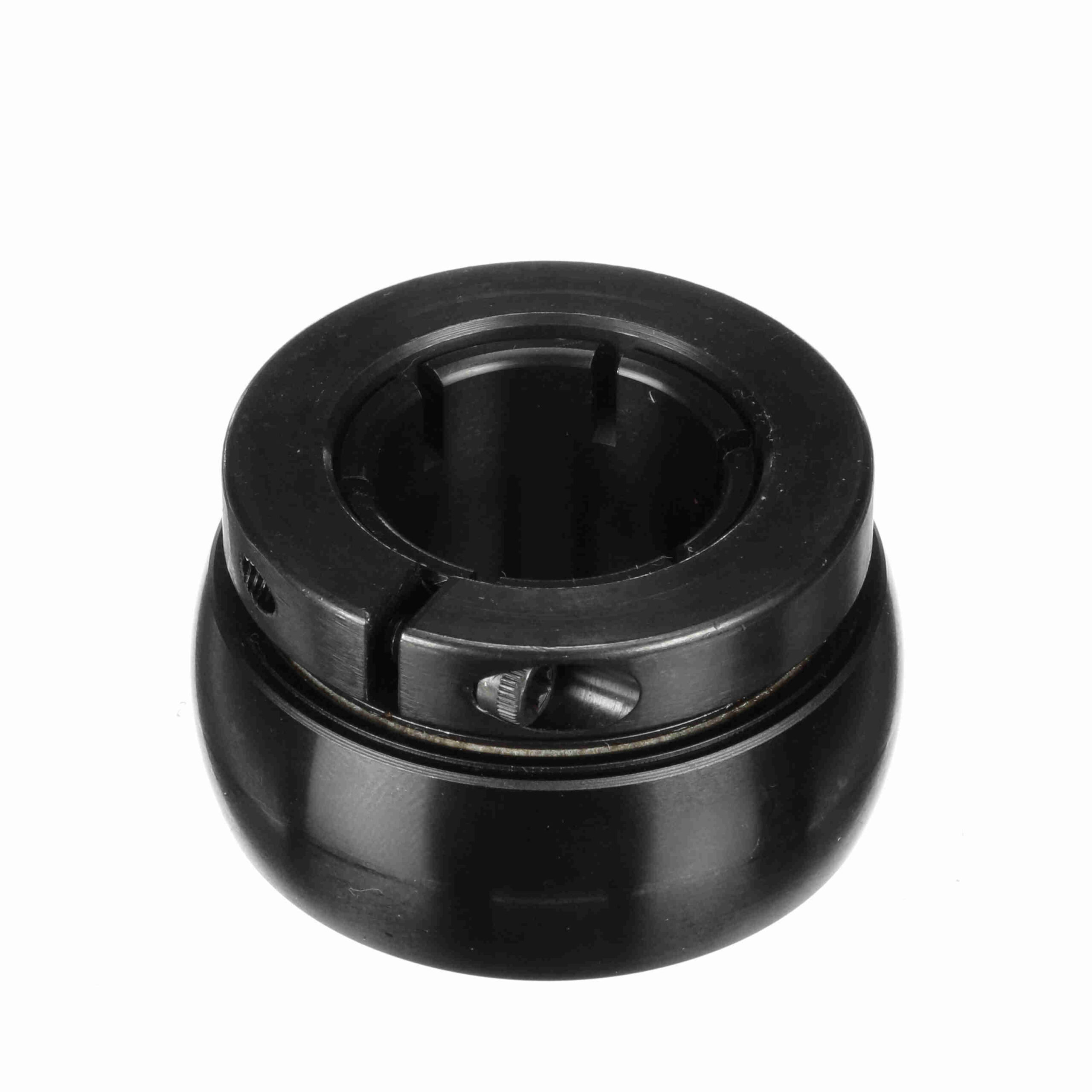

5206TM

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Bore Shape:	Straight	Housing Type:	Insert Only
Radius:	0.04	Rolling Element:	Ball Bearing
Measure Units:	Metric	Insert Material:	52100 Bearing Steel, Black Oxided
Internal Clearance:	Standard	Radial Dynamic Load Capacity (lb):	4, 381 lb
Misalignment:	±2.0° Misalignment - Static Only	Speed (Max) (RPM):	7600 rpm
End Cap:	No	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Radial Static Load Capacity (lb):	2, 567 lb
Cage Material:	Brass	Precision Rating:	ABEC 1
Outer Race Profile:	Spherical	Inner Race Profile:	Wide Inner Ring
Ability to Relubricate:	Yes	Fixed vs. Expansion:	No
Locking Type:	Concentric	Inner Race Heat Treat Method:	Zone-Hardened
Retainer Type:	Land Riding Retainer	Maximum Operating Temperature (F):	220 °F
Type of Seal:	Felt Labyrinth Seal	Lubrication Type:	Lithium Complex NLGI 2 Grease
Duty/Series:	Standard	UPC:	662461257920
Weight:	1.20 LB	Packaged Length:	2.75 Inches
Packaged Width:	1.56 Inches	Packaged Height:	2.75 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
