- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3C160E

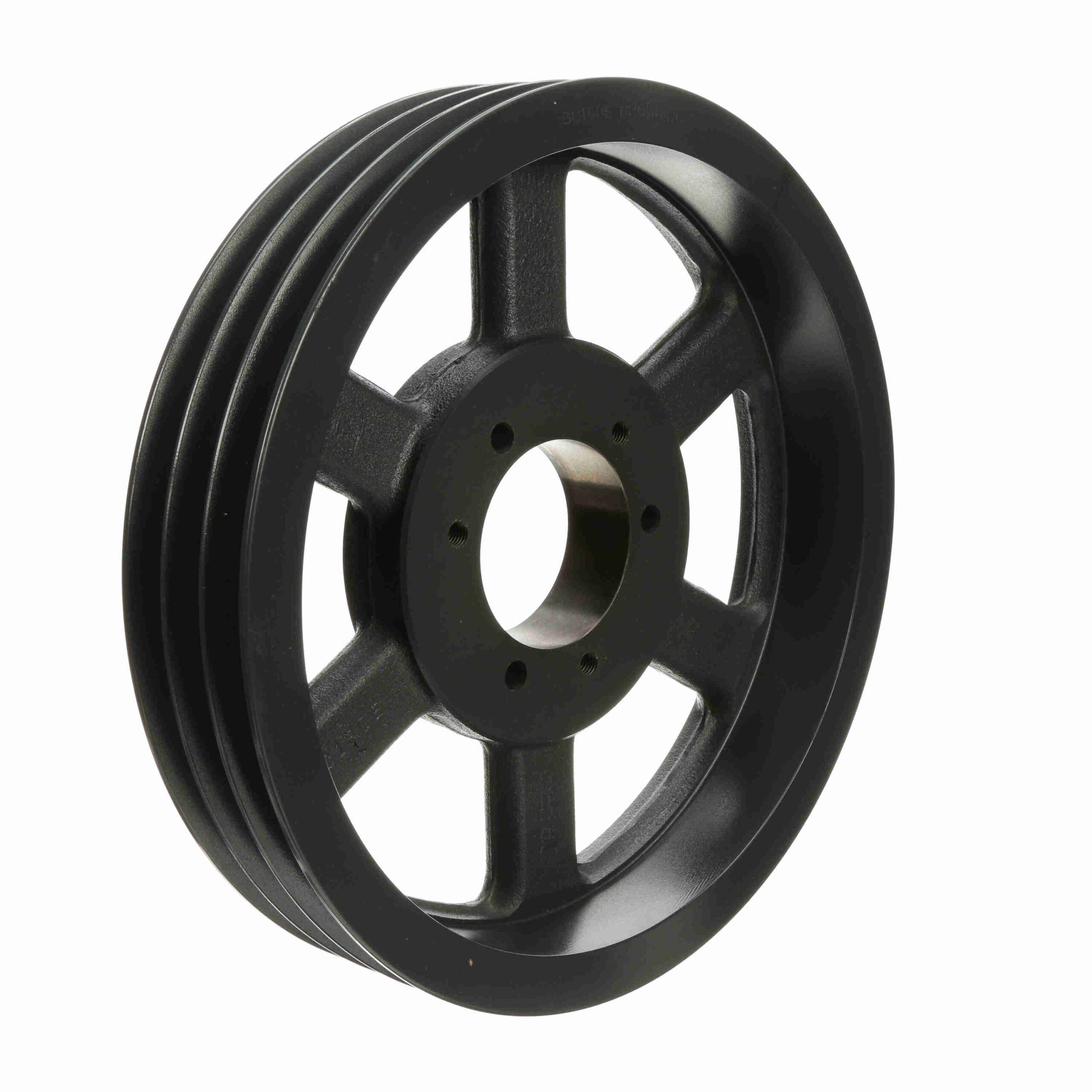

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3C160E
$1,670.33
Out of stock
Out of stock
| Material: | Cast Iron | Outside Diameter (in): | 16.4 in |
|---|---|---|---|
| Number of Grooves: | 3 | Pitch Diameter (C): | 16.4 |
| Pulley Material: | Cast Iron | Model Name: | 3C_LG_Sheavemaster |
| Bushing Used: | E | Datum Diameter (C): | 16 |
| Product Type: | Multiple Sheaves | Belt Section: | C |
| Bore (Min) (in): | 0.875 in | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.875 - 3.500 | UPC: | 662289409204 |
| Weight: | 49.71 LB | Packaged Length: | 17.40 Inches |
| Packaged Width: | 17.30 Inches | Packaged Height: | 4.20 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
