- This Product has the Browning Exclusive Twice the Life Guarantee
- Compact design
- Taper bore bushings are available in popular inch bore sizes
- Hardened Teeth at No Extra Cost – Drives sizes up to 30 teeth on 40 through 160 Chain
H50P26

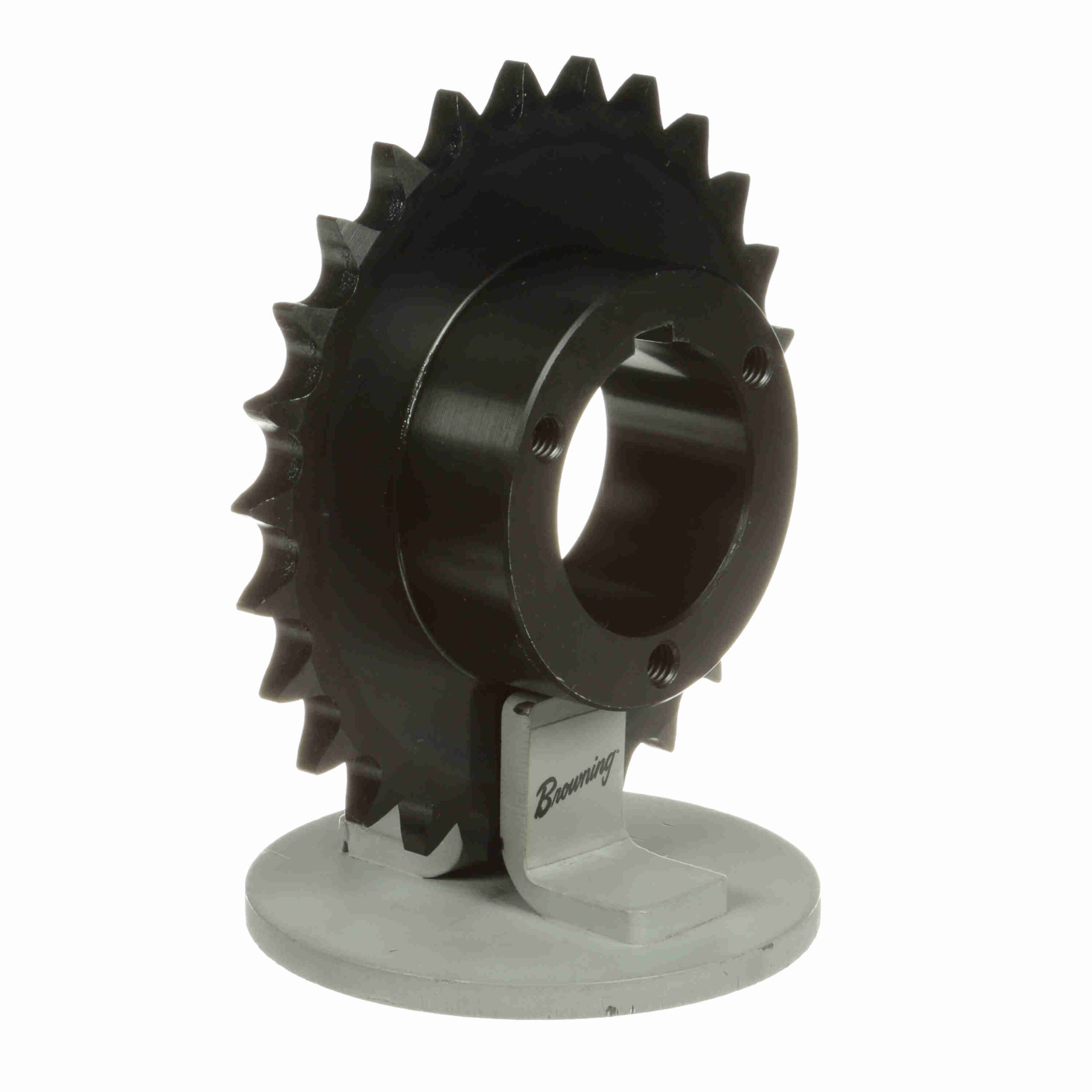

Browning Steel Bushed Bore Roller Chain Sprocket – H50P26
$261.74
Out of stock
Out of stock
| Bore (Min) (in): | 0.5 in | Chain Pitch (in): | 0.625 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Bore (Max) (in): | 1.75 in |
| Number of teeth: | 26 | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 5.185 in |
| Material: | Steel, Hardened Teeth | Overall Length (in): | 2.221225 in |
| Outside Diameter (in): | 5.522 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.343 | UPC: | 662289205325 |
| Weight: | 2.85 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.10 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
