2-1

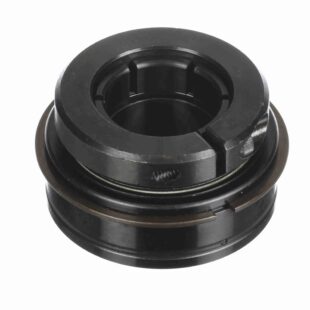

Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Inner-Race Heat-Treat Method:	Zone-Hardened	Seal Type:	Felt Labyrinth Seal
Set Screw Thread:	1/4-28	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Radius:	0.04
Maximum Operating Temperature:	220 °F	Housing Type:	Insert Only
Bore Shape:	Straight	Rolling Element:	Ball Bearing
Duty Series:	Standard	Insert Material:	52100 Bearing Steel; Black Oxided
Internal Clearance:	Standard	Expansion:	No
Locking Type:	Setscrew	Lubrication:	Lithium Complex NLGI 2 Grease
Relubricatable:	Yes	Radial Dynamic Load Capacity (lb):	2, 801
Misalignment:	±2.0° Misalignment - Static Only	Speed (Max):	6350
Platform:	Gold Line Ball Bearing	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	1, 651
Cage Material:	PPS	Precision Rating:	ABEC 1
Outer Race Profile:	Spherical	Inner Race Profile:	Wide Inner Ring
UPC:	662461000137	Weight:	0.51 LB
Packaged Length:	2.38 Inches	Packaged Width:	1.44 Inches
Packaged Height:	2.38 Inches	HTC:	8482.10.5048
Country of Origin:	Mexico
