- Unmatched Quality and Performance in Morse Brand Chain
- All components are plated before assembly
- Available in package quantities or via quick-turnaround cut-to-length
- The strength of carbon steel with corrosion protection
50MG R 10FT

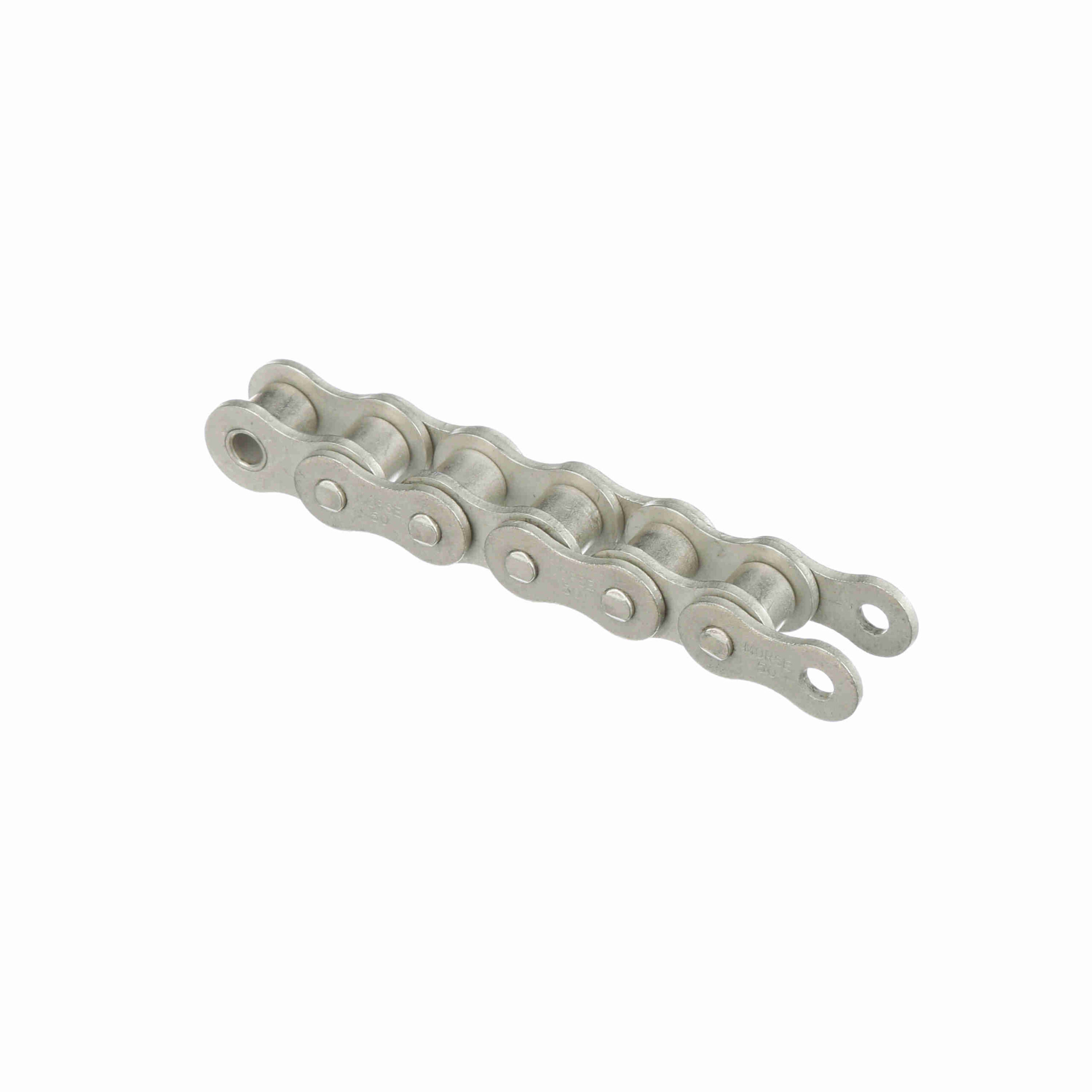

Morse Moisture Guard Riveted Roller Chain – 50MG R 10FT
$52.69
Out of stock
Out of stock
| Chain Size: | 50 | Number of Strands/Width: | 1 |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 6, 100 | Inside Plate Height: | 0.584 |
| Number of Connecting Links Included: | 1 | Side Plate Cfg.: | Hourglass |
| Plate Thickness: | 0.08 | Roller Diameter (in): | 0.4 in |
| Centerline to Opposite cotter Pin Side: | 0.395 | Chain Construction: | Riveted |
| Centerline to Outside of cotter Pin: | 0.46 | Width Over Pins/Total Width: | 0.79 |
| Material: | Steel | Roller Width (in): | 0.375 in |
| Coating: | Moisture Guard | Pin Diameter (in): | 0.2 in |
| Chain Type: | Moisture Guard | Chain Pitch (in): | 0.625 in |
| Product Type: | Roller Chain | Total Length: | 10 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.79 | UPC: | 662288806011 |
| Weight: | 0.76 LB | Packaged Length: | 9.20 Inches |
| Packaged Width: | 9.20 Inches | Packaged Height: | 1.10 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
