- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60H-2R 10FT

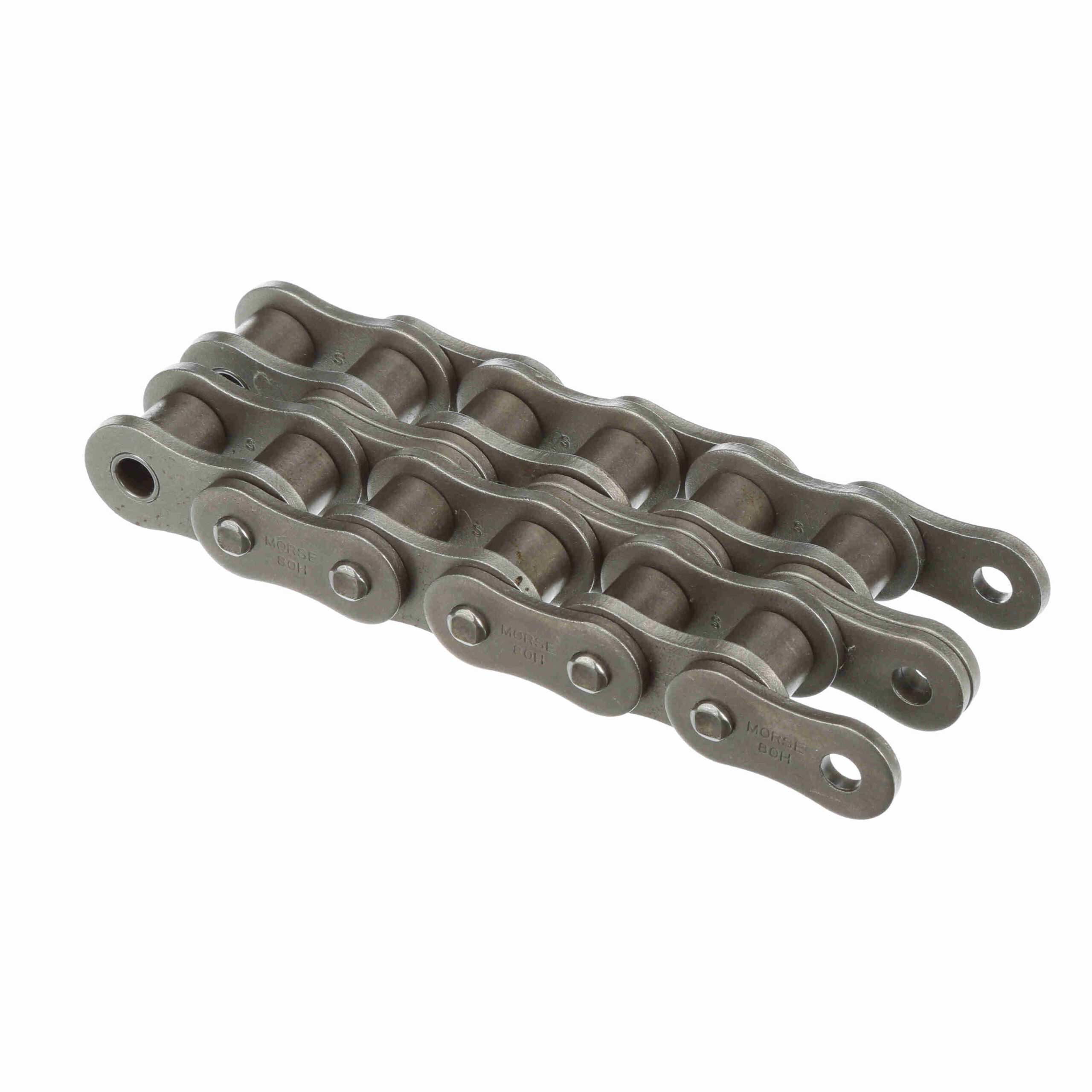

Morse Heavy Riveted Roller Chain – 60H-2R 10FT
$67.55
Out of stock
Out of stock
| Plate Thickness: | 0.125 | Roller Width (in): | 0.5 in |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 17, 000 | Width Over Pins/Total Width: | 2.148 |
| Inside Plate Height: | 0.7 | Material: | Steel |
| Pin Diameter (in): | 0.234 in | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 2 | Chain Construction: | Riveted |
| Number of Connecting Links Included: | 1 | Center Plates: | Loose Fit, Press Fit Optional |
| Roller Diameter (in): | 0.468 in | Centerline to Opposite cotter Pin Side: | 1.074 |
| Chain Size: | 60 | Centerline to Outside of cotter Pin: | 1.166 |
| Total Length: | 10 FT ft | Chain Pitch (in): | 0.75 in |
| Chain Type: | Heavy | Product Type: | Roller Chain |
| Coating: | Uncoated | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 1.028 |
| Pin Length - Riveted: | 2.148 | UPC: | 662288456407 |
| Weight: | 2.31 LB | Packaged Length: | 10.70 Inches |
| Packaged Width: | 10.70 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
