- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
500A-1 TL 7/8 FB

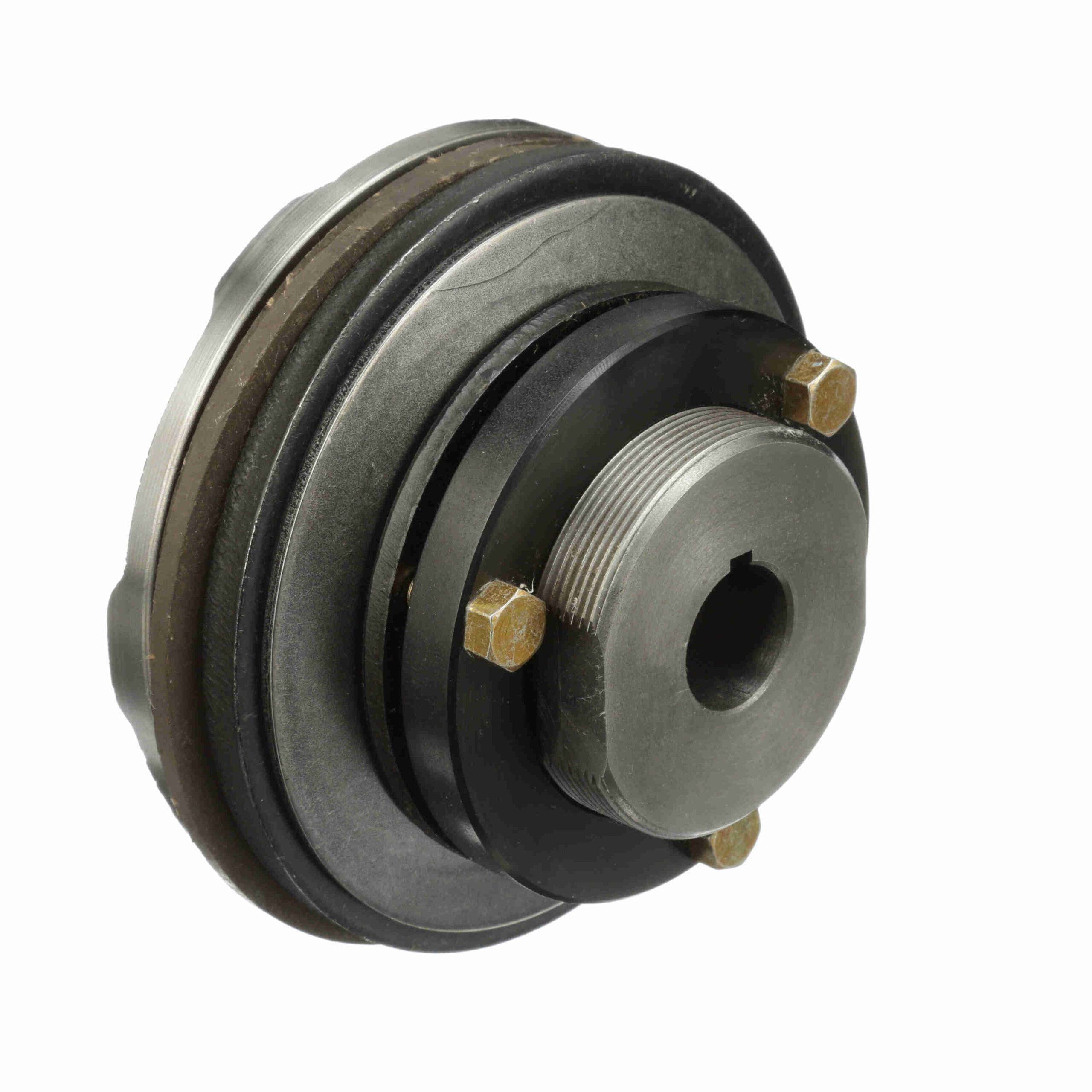

Morse Torque Limiter Model – 500A – 500A-1 TL 7/8 FB
$534.79
Out of stock
Out of stock
| Type: | Torque Overload Devices | Outside Diameter (in): | 5 in |
|---|---|---|---|
| Sprocket Bore Diameter: | 2.878/2.880 | Trip Torque [Min]: | 35 |
| Maximum Bore w/ Key, Setscrew: | 1.75 | Series / Model: | 500A |
| Bore Size (in): | 0.875 in | Total Length (mm): | 76.2 mm |
| Total Length (in): | 3 in | Backlash: | Zero |
| Unit Accuracy: | 0.25 | Reset Type: | Automatic |
| Recovery Style: | Automatic | Detection Method: | Friction Pad |
| Outside Diameter (mm): | 127 mm | Bore Shape: | Straight Bore |
| Disconnect Method: | Friction Pad | Sensor Plate: | No |
| Torque [Min] (N-m): | 47.6 | Torque Capacity [Max] (lb-ft): | 155 |
| Max RPM: | 1, 000 | Torque [Max] (N-m): | 210.8 |
| Torque Capacity [Min] (lb-ft): | 35 | Product Type: | Torque Limiter |
| Bore (Min) (in): | 0.875 in | Bore (Max) (in): | 0.875 in |
| Bore Type: | Finished w/ Keyway | Minimum Sprocket Teeth: | #40 (35 Teeth) |
| #60 (25 Teeth) | #80 (19 Teeth) | UPC: | 662288478942 |
| Weight: | 1.68 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.60 Inches | Packaged Height: | 3.00 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | United States of America |
